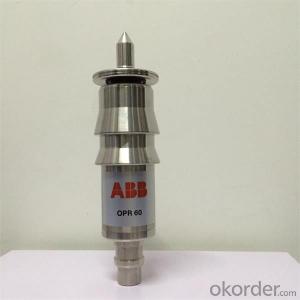

ESE Lightning Rod for  Lightning Protection

ESE Lightning Rod for Lightning Protection

Ref Price:
get latest price
Loading Port:
Guangzhou
Payment Terms:
TT OR LC
Min Order Qty:
1 pc
Supply Capability:
500 pc/month

Add to My Favorites

Follow us:


OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

The role of the lightning conductors is to capture lightning to flow it into the ground by down conductors.Duval Messien manufactures and installs lightning conductors of three categories.



Simple rod: with sharp, steel points, derived from earlier designs.They provide protection for small structures.



Early Streamer Emission (ESE): a development of simple rod, but in which the efficiency is enhanced by using a device generated High voltage pulses to create a corona  effect. This reduces meeting time between the upward and the downward leaders and makes designs suitable for much larger structures.Duval  Messien  SATELIT  range  uses  components  from  different technologies. They have a high performance and reliability.



Meshed cage or tight strands: based on the « faraday cage », is composed if necessary of several strike points installed around the building and on its prominent features, at regular intervals. These strike points are connected to one another by meshes done with either, conductor installed on the roof, either with wires suspended above the building.


ESE Lightning Rod for  Lightning Protection


Features of Duval Messien ESE Lightning Rod



This is kind of  lightning rod are made from stainless steel material, it has different protection area

and various features.



1. Not electron style,life long.

2. Keep the good performance after lightning stroked.

3. Various protection radius.

4. Tracing the lightning in advance and conduction it to the earth completely.

5. It would be activated only have lightning and thunder.

6. Artistic outline.

7. Safety and reliable.

8. Without maintenance.



PROTECTION AREAS (Duval Messien ESE Lightning Rod Arrester)



Reference No.

T(us)

LTDE 2500

25

LTDE 4500

45

LTDE 6000

60





(Duval Messien ESE Lightning Rod Arrester)

PROTECTION RADII RP (m)

Types of SATELIT+ G2

H=height of ESE tip (m)

2

4

5

7

10

15

20

45

60

Protection Level 1

ESE 2500

17

34

42

43

44

45

45

45

45

ESE 4500

25

51

63

64

64

65

65

65

65

ESE 6000

32

64

79

79

79

80

80

80

80

Protection Level 2

ESE 2500

23

45

57

59

61

63

65

70

70

ESE 4500

32

65

81

82

83

85

86

90

90

ESE 6000

40

75

97

98

99

101

102

105

105

Protection Level 3

ESE 2500

26

52

65

66

69

72

75

84

85

ESE 4500

36

72

89

91

92

95

97

104

105

ESE 6000

44

87

107

108

109

111

113

120

120



Packing

ESE Lightning Rod for  Lightning Protection

ESE Lightning Rod for  Lightning Protection

Application

1. Complex: industrial, commercial and civil construction, science and technology museum, exhibition center, resorts



2. Historic buildings, museums, scenic spot and historic city, statues



3. Information industry: center machine room, GSM, CDMA base stations, PHS, tower Petroleum and petrochemical, oil pipeline, the reservoir, gas station, transfer station



4. Transportation: Bridges, ports;Highway communication, monitoring, charging center



5. Hydraulic power: communications center, hydrological stations, substations, power plants, the dispatching center



6. Civil aviation: airport terminal, tower, radar, navigation, oil tank area, communication machine room



7. Financial insurance, banking and insurance of large and medium-sized computer center, the securities company



8. Radio and television tower, station, launch machine room


FAQ

1. Is the sample free or not?

    Because the cost of the lightning rod is very high, we are afraid that we can not provide the free sample.


2. If the order is too large , can you ensure in time delivery?

    Sure! Our factory with high productive force and we have the advanced technology devices which make us ensure in time delivery.


3. How to deal with the problems after purchase?

   If it is the problem of installation, our technical personnel will be in the fastest time to reply you,  and guide you how to install the operation.

    If it is the problem of quality, please show me your evidence, we will make corresponding solution on specific issues, such as replacement or refund.
