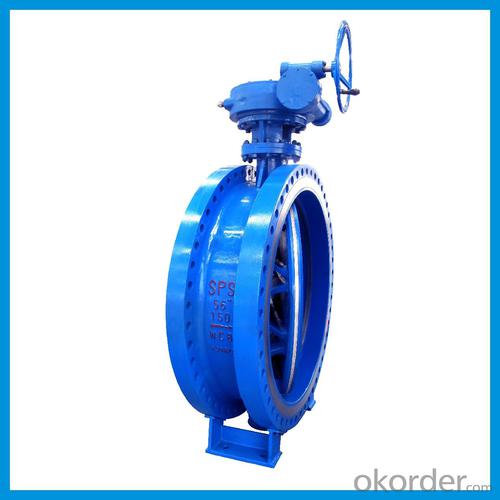

API 609 Metal Sealing Three Offset Butterfly Valve 56"

Ref Price:

Loading Port:: Shanghai

Payment Terms:: TT OR LC

Min Order Qty:: 1 pc

Supply Capability:: 200 pc/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

You Might Also Like

High Quality Flanged Wafer Type Butterfly Valve

Wafer Butterfly Valve For Water, Oil, Gas

LT Butterfly Valve

valve of china 3900

valve of china 7700

Gate Valve Ductile Iron Made Britain Standard DN250

Butterfly Valve DN600 BS5163 Made in China

Butterfly Valve DN200 BS5163 with Hand Wheel Made in China

Three offset Pneumatic Double Flange Butterfly Valve DN150

The Butterfly Valve Standard

Designed: API609, ASME B 16.34, AWWA C 504, BS EN593

Face to Face: API 609, AWWAC504, BS2080, and ISO5752

Flange End: ASME B 16.5, ASME B 16.47, BS EN1092, ISO7005

Inspection Test: API 598, BS EN 12266, ISO 528

Materials Choose

Body Materials: WCB/WCC/LCB/QT450-10/QT500-7/CF8M/CF3M

Disc Materials: WCB/WCC/LCB/QT450-10/QT500-7/CF8M/CF3M

Seat Materials:304/316/Graphite/Asbetos/PTFE

Specifications

Pressure: PN10/PN16/PN25/CL150/CL300

Size: DN40---DN3200

Drive Mode: Manual/Worm gear/Electric/Pneumatic

Field of Application: Electric /Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.

Shipping Time

Delivery: within 15-30days after receipt of at sight L/C or 30% as advance payment by T/T

Packing

Butterfly Valve Packing: Seaworthy packing:

1. Single Butterfly Valve is packed with foam plastic bag.

2. Put sponge in each floor

3. Electric or pneumatic actors will Individual packaging it with wood box.

4. Export Wooden Packing

5. We can pack according to specific customer requests.

6. Customers’ logos are available on package.

7. Design and manufacturing the wood box to save the sea cost if needed .

Delivery: within 15-30days after receipt of at sight L/C or 30% as advance payment by T/T

Butterfly Valve Packing: Seaworthy packing:

1. Single Butterfly Valve is packed with foam plastic bag.

2. Put sponge in each floor

3. Electric or pneumatic actors will Individual packaging it with wood box.

4. Export Wooden Packing

5. We can pack according to specific customer requests.

6. Customers’ logos are available on package.

7. Design and manufacturing the wood box to save the sea cost if needed .

API 609 Metal Sealing Three Offset Butterfly Valve 56

Q: Why use special flanges for butterfly valves?: Because to use special flange butterfly valve butterfly flange diameter is just the butterfly inside diameter of DN coincides with a slot in the back, and this is the connection of the steel pipe is inserted into the slot, so as to ensure the sealing effect, but with a flange piece of ordinary cannot guarantee the effective sealing effect.Butterfly valve plate installed in the direction of the diameter of the pipe. Butterfly valve structure is simple, small size, light weight. Consists of only a few components. The utility model can be rapidly opened and closed only by rotating 90 DEG, the operation is simple, and the valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the butterfly plate thickness is the only resistance when the medium passes through the valve body, so the pressure drop produced by the valve is very small, so the flow control characteristic is better.If the butterfly valve is used as a flow control, the main thing is to correctly select the size and type of valve. Butterfly valve structure and principle, especially suitable for making large-diameter valves. There are two kinds of butterfly valves commonly used: clip type butterfly valve and flanged butterfly valve. The clip type butterfly valve is a double headed bolt connecting the valve between the two pipe flanges. The flange type butterfly valve is provided with a flange on the valve, and a bolt is used to connect the flanges at the ends of the valve to the pipe flange.

Q: Ok, so I took my car in for maintenance (Mustang GT convertible 2002) and the mechanic told me the valve gaskets needed to be replaced and when he gave me the estimate, they were two seperate charges for valve gaskets and valve covers, total of about $250.00 not including labor. Is he trying to rip me off cause I'm a girl by the way? Anyways, I didn't get it done cause it needed something else too and I didn't have enough money so I said I would be back in two weeks. So I called the dealership to inquire about the price and I asked the parts guy for a price on valve gaskets and he was like, I don't know what you mean, we have valve cover gaskets but nothing says just valve gaskets? I told him to give me the price anyways, thinking I would ask my brother (who hasn't tried to help me anyways) and it was $60.00 for both (I need two). How can this be if the other guy was charging me $250.00 for different parts? Help!!! Frustrated and confused, I don't know anything about cars :(: This Site Might Help You. RE: Is a valve gasket the same as a valve cover gasket? Ok, so I took my car in for maintenance (Mustang GT convertible 2002) and the mechanic told me the valve gaskets needed to be replaced and when he gave me the estimate, they were two seperate charges for valve gaskets and valve covers, total of about $250.00 not including labor. Is he trying to rip...

Q: Check valve; flexible joint `; installation order of electric butterfly valve: It is better to make an elastic hanger.In order to prevent the generation of water hammer when the pump stops the damage to the rubber head, should be immediately set rubber head pump outlet, the gate valve and the check valve is not a very convincing reason to decide the order, custom order rubber head, check valve, electric butterfly valve.

Q: Water supply pipe gate valve and butterfly valve which good?: 1. gate valve: also known as gate valve or gate, there is a valve in the valve flow direction perpendicular to the medium, adjust the height of the gate, you can adjust the flow of fluid. Valve advantages are small resistance, close tight, no water hammer phenomenon, widely used in a variety of liquid and gas shut-off valve. It also has some adjustment function, but when the part is opened, the gate is easy to be wetted by the fluid. When the fluid flows, it causes the shaking of the alarm board and the sealing surface is easy to wear. The drawback of the gate valve is that the structure is complex, the price is more expensive, it is difficult to repair, and the solid material is easy to deposit in the valve seat groove. Therefore, it is not suitable for the pipeline containing fiber or solid material in the fluid. Commonly used in the air, steam, oil medium pipeline, but also used as vent valve and low silk system valve.Gate valve is commonly used as one of the cut-off valve, mainly used to connect or cut off the medium in the pipeline, not applicable to regulating medium flow. Valve is suitable for pressure, temperature and caliber range, especially for medium and large diameter pipes.

Q: Fire, the signal butterfly valve flange connection or welding?: 1, do a good job with flange.2, flange (Flange), also known as flange, flange plate or edge. A flange is a part that is connected between the pipe and the pipe, used for the connection between the ends of the pipe. It is also used for the flange on the entrance and exit of the equipment. It is used for the connection between the two devices, such as the reducer flange. Flange connection or flange joint means that the flange, the shim and the bolt are mutually connected as a group of three detachable sealing structures. Pipe flanges are flanges used for piping in pipe installations. They are used on equipment and refer to the entrance and exit flanges of the equipment. The flange is lined with bolts to secure the two flanges. Gaskets for gaskets between flanges. Sub threaded flange connection (threaded connection), flange welding flange and flange clamp. Flanges are used in pairs. Low pressure pipes can be made of wire flanges and welded flanges with pressures of more than four kilograms. Add a gasket between the two flanges and secure with bolts. Different pressure flange thickness is different, they use the bolt is also different. Water pump and valve, and in the pipe connection, these equipment parts of the equipment also made corresponding flange shape, also known as flange connection. Any connecting parts that are bolted and closed in the vicinity of the two planes are generally referred to as flanges, such as the connections of the ventilation ducts, which can be called flanges". However, this connection is only part of a device, such as flanges and pumps connected, it is not good to call the water pump flange parts". Relatively small, such as valves, can be called flanges".3, also known as welding: welding, melt, is a kind of heating, high temperature or high pressure way of metal or other thermoplastic materials such as plastic manufacturing process and technology.

Q: Three eccentric hard sealing butterfly valve, why not fit in the end of the pipe?: The sealing ring will hold up. It does not fit in with the flange end of the pipeline, this addition is the most common and convenient pipeline after purge and easily add pipeline.

Q: what are the step i need to do so i can change the valve seals my truck has been smoky.,,, any websites i want todo it myself... 1989 chevy silverado 2500 350 engine 5.7L: First find out if that is the issue. Do a wet/dry compression on all the cylinders. That is where you do a compression test on all the cylinders and write them down. Then squirt about three pumps of oil from a oil can into each cylinder and retake the compressions. If the compressions don't change and are low, the valves are burnt and you need a valve job. If the compressions go way up after the oil seals the rings, then the piston rings are bad and the engine needs rebuilding and that may be where the oil smoke is coming from. If all the cylinders are within 20 psi and runs good, then it may be your valve guide seals are bad. You can replace them without pulling the heads. You can go to an auto parts store and buy a valve spring compressor that is used while the head is on the block. It has an air fitting that screws down into the spark plug hole and when filled with compressed air, holds the valves up while you remove the spring and replace the valve guide seal.

Q: The difference between the directly buried gate and the flange valve and butterfly valve: The flange gate valve is stable and reliable when used in the pipeline, so the flange gate valve is used on the high pressure pipeline.Butterfly valve refers to the closure of parts (valve or butterfly plate) as the disk, around the valve shaft to achieve rotation and closing of a valve, the main cut off on the pipe and throttling role. Butterfly valve headstock is a disc shaped disc, in the valve body around its own axis of rotation, so as to achieve the purpose of opening or closing or regulation. Butterfly valve used in furnace, coal gas, natural gas, liquefied petroleum gas, city gas, hot and cold air, chemical smelting and power generation environmental protection engineering system, conveying a variety of corrosive and non corrosive media pipeline, used to adjust and cut off the media flow.

Q: What is the D37-10Q butterfly valve?: D- butterfly valve (valve type); 3- worm (drive); 7- pairs of clamp (connection); 10-PN1; nominal pressure of 10 kg; Q- ductile iron (valve body material).

Q: What does "D41X-16" mean?: GB case, D is butterfly valve, 4 is flange connection, 1 refers to the midline structure, X is sealed form for three yuan, ethylene propylene rubber seal, and 16 is the pressure of 16 kg.
