Product Description:

Purpose

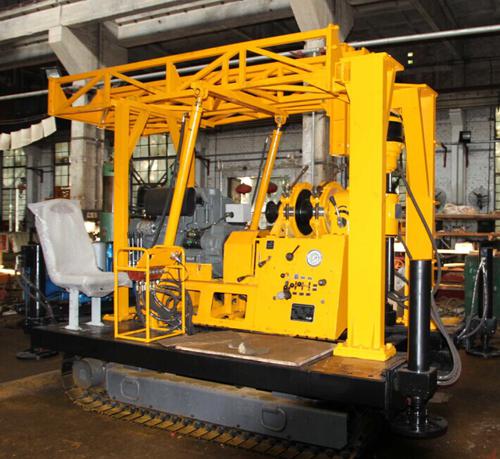

XY-2 hydraulic feed core drill is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydrogeological, water well and pile grouting hole drilling.


Technical Specifications

Drilling capacity(m)
73 rod
100
60 rod
200
50 rod
380
42 rod
530
Spindle speed(r/min)
Forward

65;114;180;248;
310;538;849;1172


Reverse
51;242
Max torque (Nm)2760
Angle reange0-90°
Spindle max pull force(KN)60
Spindle stroke (mm)600
Hoist max life capacity with single rope (KN)30
Spindle inner dia (mm)76
Oil pumpSCB32/12
Power unit
Electric motor
Y180L-4,22Kw
Diesel engine
395K2,19.85Kw
Inner dia of spindle (mm)2150×900×1690
Drill body weight (excluding power)(kg)950
