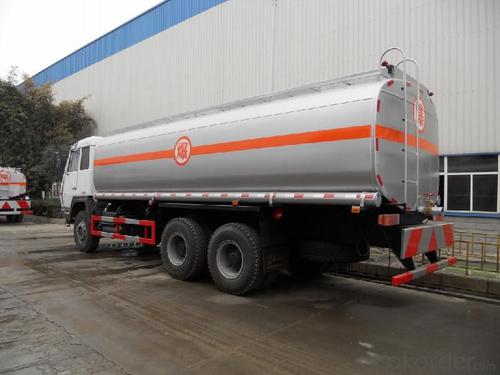

Fuel Tank Truck  Full Trailer (CQ1254HTG434)

Fuel Tank Truck Full Trailer (CQ1254HTG434)

Ref Price:
get latest price
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 PCS
Supply Capability:
1500 PCS/month

Add to My Favorites

Follow us:


OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

 Fuel Tank Truck  Full Trailer (CQ1254HTG434)

Product Details

Basic Info.

Model NO.:CQ1254HTG434



Transmission Type:Manual

Power:Diesel



Load Capacity:41-50t

Emission Standard:Euro 3



Tank Volume:<5000L

Drive Wheel:6×4



Seats:≤5

Horsepower:351-450hp



Engine Capacity:>8L

Storage:Oil



Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT



Tire Design:Radial

Condition:New



Truck Type:Tanker Truck

Chassis:Cq1254htg434



Gross Vehicle Weight(Kg):25, 000

Overall Dimension(Mm):9, 640X2, 500X3, 201



Oil Tank(L):400L

Rated Weight(Kg):13730



Kerb Weight(Kg):11140

Color:Optional



Export Markets:Global

Additional Info.

Trademark:GENLYON



Packing:Nude Packing

Standard:SGS



Origin:China

HS Code:8716311000



Production Capacity:50000 Units/Year

Product Description

Truck Type: TANKER TRUCK
Driving Type: 6X4
Vehicle Brand: SAIC-Iveco HONGYAN
Rated Loading Capacity: 41-50T

Chassis: CQ1254HTG434
Engine model: C9 380, 380 HP Euro 3
Max. Output: 380 HP
Drive Axle: Double Reduction, Hongyan punching welding drive axle

Tires: 12.00R20 (with one spare tire)
Wheelbase: 4325+1350mm
Cab: Genlyon cab, Flat-roof strengthened, Left-Hand drive


                                                                                        PIC IS ONLY FOR REFERENCE
NO.SPECIFICATIONPARAMETERNOTE
1Chassis                CQ1254HTG434

2ApplicationTanker truck

3Drive                  6*4


4Rated Weight13,730


5Kerb Weight(kg)             11,140


6Gross Vehicle Weight(kg)    25,000


7Type                   Genlyon cab,Flat-roof strengthed, Left-Hand drive
8EquipmentAir-conditioner, One Sleeper,Large carbin
9Overall Dimension(mm)     9,640x2,500x3,201

10Wheelbase(mm)             4325+1350

11Model                  C9 380


12Engine Output  (kw(HP))      (280)380HP

13Displacement(L)8.709


14Emission STDEURO3


15Drive Axle    Double Reduction, Hongyan punching welding drive axle
16Frame865/280 8+5

17Tyre                       12.00R20


18Oil Tank(L)400L


19Tank Volume (m3) 21


25m3 full trailer tanker specs
1Tank Volume (m3) 25


3Axle13 Ton x3, FUWA axle
4Tire12.00R20


5Leaf spring10 pieces


6tool box 1.2M*1


Fuel Tank Truck  Full Trailer (CQ1254HTG434)

Fuel Tank Truck  Full Trailer (CQ1254HTG434)


Q:Where do I need to hit butter from the truck?
Butter is used to lubricate the goods. The truck runs for a long time, and the butter inside it is worn off. New equipment needs to be added to maintain the car. The car is grease lubrication, oil hole now cars do not have buttered all bearings are oily, disposable without refueling, do not own the grease in the ball if you remove after filling will cause oil spills and other consequences of life. Above the coach, the SUV is topped with butter, because it has a chassis and a butter mouth.
Q:What tools should be prepared for a large lorry?
Small fire extinguisher. A light fire extinguisher can extinguish the combustion in case of an automobile accident.6) original car manual. When the car has problems, you can immediately find out the reason from the manual.
Q:What kind of truck does it have?
Freight cars are classified by use: Ordinary freight cars, one in open type (flat type), and the other in enclosed (Van) carrying space.
Q:Which brand is more than 3 meters in van?
If sufficient funds can choose (devaluation), Chongqing Qingling called Isuzu (Isuzu engine), very good, currently on the market recognized domestic cattle X car, the price is expensive, more than 110 thousand meters, 4.2 single row, with no sleeper, or you can choose a car 3.2 m, you take food by taking discharge, good choice, 100P and 600P can be selected, fuel-efficient, low noise, the main engine is good, not bad, a lot of advantages
Q:Blue truck 2 tons high limit number
Can you run the road, my customer is much higher, people go is not the traffic police did not limit the high road, so Human effort is the decisive factor.Van is 2.9 meters, oh, there is a van van is 3.5 meters, on both sides of the box board, the top is Peng pole, the kind of car downtown difficult to walk downtown is limited to 3 meters high! Not you, you pull up the goods can not be too limited, Gaolan
Q:What skills do trucks reverse?
The truck backhand into the Library: reverse hang back, left hand on the steering wheel (like clock) 3 point position, when the left trunk (second tendons from front to back) and in the bar in the straight line, the direction of the left to play in the end, the car left rear angle and the rod 60 centimeters distance in the bar, around the turn into the head, put it in the middle of the cab rear window, see the trunk center point, when the trunk center point and right behind the bar aligned, right back to the car in front direction, parking in Cuyo 50 cm.
Q:What are the criteria for the differentiation of low speed freight cars, light goods vehicles and minivans?
You mentioned the above three models, belong to a car type! Light trucks, driving privileges, C1, what we can tell is the blue pickup truck!
Q:What's the platoon wagon?
Trucks are commonly referred to as trucks, also known as trucks, vehicles that are mainly used for transporting goods, and sometimes automobiles that can pull other vehicles, belonging to the category of commercial vehicles. According to the weight of cars generally divided into heavy and light two. Most lorries are powered by diesel engines, but some light trucks use gasoline, petroleum gas, or natural gas.
Q:What is the five axle bridge?
The drive axle is usually composed of a main reducer, a differential, a wheel drive, a drive axle housing, a steering drive axle, and a constant velocity universal joint. In addition, the drive bridge also acts on the vertical force, longitudinal force and lateral force, as well as braking torque and reaction force between the road surface and the frame or the body.
Q:How many tons of blue light truck to pull
More than 1 tons, more, then check the fine, but check less, and if you like it, even ten tons of cars will do, to see more of the big machine
