Fuel Tank Truck 8X4 30000 Litre Heavy

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 PCS
Supply Capability:
1500 PCS/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

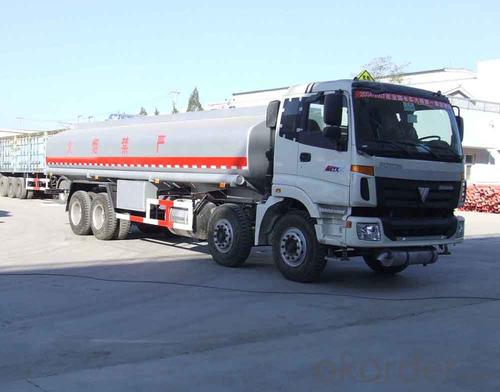

Fuel Tank Truck  8X4 30000 Litre Heavy

Product Details

Basic Info.

Model NO.:ZZ5317



Transmission Type:Manual

Power:Diesel



Load Capacity:31-40t

Emission Standard:Euro 3



Tank Volume:>30000L

Drive Wheel:8×4



Seats:≤5

Horsepower:251-350hp



Engine Capacity:>8L

Storage:Oil



Tire Type:Solid Tire

Tire Certification:ISO



Tire Design:Radial

Condition:New



Tank Truck:Truck

Export Markets:Global

Additional Info.

Trademark:Veldlion



Packing:Nude Packing or Roro Ship

Standard:3C, ISO



Origin:Hubei

Production Capacity:3000PCS Per Month

Product Description


1.Factory direct supply, competitive price with advanced quality;
2. Can offer various tanker truck, like as oil tanker ,bulk cement tanker truck, water tanker truck,mixer tanker truck, LPG...,
3. Tanker volume: 5CBM-50CBM
4. Chassis is optional, DFAC, FOTON, SINO, SHACAN,FAW,CAMC,ISUZU....


Truck Model

ZZ1317N4667C1

Truck Brand

SINOTRUK_HOWO

Driving Type

Left hand driving

Dimension(Lx W xH) ( unloaded )( mm )

11980x2496x3700

Carriage inner dimension(LxWxH) ( mm )

9160*2495*1730

Approaching angle/Departure angle ( ° )

 1 6 /1 6

F/R track base(mm)

2022/1830

Tank capacity( m 3  )

3 5

Medium

Gasoline

Gear oil pump

Model

76YCB-40 ( F )

flux     m 3 /h

40

In /out cabiber   mm

76

RPM   r/min

960

Remarks :

oil pump mod el  with F, represent relief valve, used for oil tanker truck with oil gun.

Wheel base (mm)

1800+4600+1350

Max speed ( km/h )

9 5

Curb weight ( kg )

11280

Loading Weight ( kg )

35000

Engine

(Steyr technology,

made in China)

Model

WD615 , water-cooled , four strokes , 6 cylinders in line with

water cooling , turbocharged and inter-cooling, directly injection

Fuel type

Diesel

Horse Power, max ( kw/rpm )

340 HP.  380 HP

Emission

EURO II I

Fuel tanker capacity  ( L )

300

Transmission

Model

HW1 9 710CL,10 forwards and 2 reverse

Brake system



Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098

Front axle

HF7

Rear axle

MCY13Q

Color

Optional

Tire

11.00-20 /  12.00-20/   295/80R22.5

Tire quantity

12+1 spare

Electrical system



Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab with one sleeper and air conditioner,

 all-steel forward control.

Fuel Tank Truck  8X4 30000 Litre Heavy

Fuel Tank Truck  8X4 30000 Litre Heavy


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What are all hung and semi-trailer?
Full trailer load by all its own, and the locomotive is only linked with the hook. The locomotive does not need to bear the load of the trailer, but only provides power to help the trailer overcome the friction resistance of the road surface. All trailers are mainly used in the transportation of docks, factories, ports and other fields. (as shown in Figure 1)
Q:What kind of brakes do all big trucks use?
Air brake pump is driven by the engine, the air is compressed to high pressure gas stored in the gas cylinder. One cylinder can pipeline to brake pump connected. Brake pump consists of two chambers, the rear wheel control chamber, the lower chamber to control the front wheel
Q:How much is the water temperature of the truck?
In general, the engine water temperature meter uses an entity or virtual dial indicator to display, while a small number of vehicles do not have a dashboard, only warning signs when the temperature is too high. Whether entity or virtual water temperature table, its pointer orientation is similar, usually with 60 degrees --120 degrees centigrade dial, or Cold (C) --Hot (H) logo. Antifreeze is different from the traditional tap water, its added calcium chloride, organic compounds in methanol, ethanol, ethylene glycol, glycerin and other ingredients, so that it can work at temperatures above 100 degrees celsius.
Q:How do heavy truck and commercial vehicles differentiate?
Heavy duty truck is the leading product HOWO, Benz, is produced in the home town of the Ji'nan party, commercial vehicle is a leading gold prince, is produced in Zhangqiu. The engines of these cars are the same as those of the transmission.
Q:What skills do trucks reverse?
Let's talk about the skills of trucks entering the warehouse first.A truck into the library, linked to the reverse, people sit back on the right side of the carriage second bar (from front to back) and in the bar in a diagonal line to the direction of the right to make the car killed, right angle and tail rod keep 60 cm distance around the turn into the bar, at this time, the left hand on the steering wheel (like clock) 3 point position, head in the middle of the cab car rear window glass box after the center point, when the trunk center point and left behind the bar aligned, the left back direction to the car down to the bottom line is not to stop, the car out of the bottom line.
Q:What do I need to pay attention to when I drive a long-distance train?
In the high-speed overtaking attention to blind the rearview mirror and the lower right corner of the car on the right sometimes overtaking you do not see the need to pay attention to the many long distance is not a good living but very exercise is not to pay attention to the roadside shop cauliflower now is not only the problem of infectious disease and a number of extortion to the south don't sell what stole picked up cheap goods are basically false
Q:Is pickup truck a truck?
Yes, counting trucks, so I don't limit the amount of licences. I have friends who do not shake the numbers. I buy a pickup truck directly. It is convenient for me to enter and leave, but I don't need any wave numbers. It is just a licence for a lorry. Hope to be of help to you.
Q:What's the van for the new car?
Sedan car, also known as vehicles, trucks, monsters, two strange, etc.There are three types of vehicles in the form of structure: Double Bridge twin, double bridge single tire and single bridge twin. According to the appearance, they are divided into skeleton type, half closed type and enclosed type.The car can be made according to the customer's requirement, the length is different, and the frame is welded I-beam. The whole body adopts full automatic submerged arc welding and carbon dioxide gas shielded welding. After the welding is completed, shot peening is carried out to eliminate the welding stress and improve the adhesion of the paint surface, so that the quality is stable and the appearance is beautiful. The upper chassis can be divided into two to three blocks, with a hoist and an oil cylinder to adjust height. The closed front sheet is made of small corrugated board skin, and the side is made of corrugated board or stamped corrugated board, and the top is covered with tarpaulin and tarpaulin. The whole vehicle has a kit, a spare tire rack, and a drip brake system installed to improve the safety of vehicle transportation.
Q:Truck modification problems and penalties
Change the body color, change the engine, body or frame, not within ten days after the change to the vehicle management application for registration of change, the public security organs traffic management department warning or two hundred yuan fine;
Q:How to calculate the toll rate of freight cars and highways? How much is the surcharge?
Weightcharge billing standards are as follows: the light load (no load) heavy trucks (the current charges 4, 5 types of vehicles, namely 3 or more axis trucks) according to the current highway and other closed toll road fees reduce a vehicle charges tolls charged (the minimum current charges of 3 kinds of models);
