Product Description:

 Fuel Tank Trailer Truck (CQ1254HTG434)

Product Details

Basic Info.

Model NO.:CQ1254HTG434



Transmission Type:Manual

Power:Diesel



Load Capacity:41-50t

Emission Standard:Euro 3



Tank Volume:<5000L

Drive Wheel:6×4



Seats:≤5

Horsepower:351-450hp



Engine Capacity:>8L

Storage:Oil



Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT



Tire Design:Radial

Condition:New



Truck Type:Tanker Truck

Chassis:Cq1254htg434



Gross Vehicle Weight(Kg):25, 000

Overall Dimension(Mm):9, 640X2, 500X3, 201



Oil Tank(L):400L

Rated Weight(Kg):13730



Kerb Weight(Kg):11140

Color:Optional



Export Markets:Global

Additional Info.

Trademark:GENLYON



Packing:Nude Packing

Standard:SGS



Origin:China

HS Code:8716311000



Production Capacity:50000 Units/Year

Product Description



Truck Type: TANKER TRUCK
Driving Type: 6X4
Vehicle Brand: SAIC-Iveco HONGYAN
Rated Loading Capacity: 41-50T

Chassis: CQ1254HTG434
Engine model: C9 380, 380 HP Euro 3
Max. Output: 380 HP
Drive Axle: Double Reduction, Hongyan punching welding drive axle

Tires: 12.00R20 (with one spare tire)
Wheelbase: 4325+1350mm
Cab: Genlyon cab, Flat-roof strengthened, Left-Hand drive

The configurations can be adjustable according to your working condition, loading capacity and special requirements.

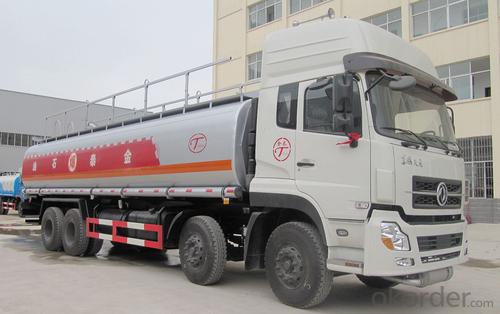

                                                                                        PIC IS ONLY FOR REFERENCE
NO.SPECIFICATIONPARAMETERNOTE
1Chassis                CQ1254HTG434

2ApplicationTanker truck

3Drive                  6*4


4Rated Weight13,730


5Kerb Weight(kg)             11,140


6Gross Vehicle Weight(kg)    25,000


7Type                   Genlyon cab,Flat-roof strengthed, Left-Hand drive
8EquipmentAir-conditioner, One Sleeper,Large carbin
9Overall Dimension(mm)     9,640x2,500x3,201

10Wheelbase(mm)             4325+1350

11Model                  C9 380


12Engine Output  (kw(HP))      (280)380HP

13Displacement(L)8.709


14Emission STDEURO3


15Drive Axle    Double Reduction, Hongyan punching welding drive axle
16Frame865/280 8+5

17Tyre                       12.00R20


18Oil Tank(L)400L


19Tank Volume (m3) 21


25m3 full trailer tanker specs
1Tank Volume (m3) 25


3Axle13 Ton x3, FUWA axle
4Tire12.00R20


5Leaf spring10 pieces


6tool box 1.2M*1


Fuel Tank Trailer Truck (CQ1254HTG434)

Fuel Tank Trailer Truck (CQ1254HTG434)


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Truck tire distance?
If you have access to the site of the road on both sides of the wheel is not the kind of collapse, middle high raised serious rutting under the condition of your vehicle by car (or as long as the width of the lateral width of the tire on both sides of the body) can, do not need to consider the track.
Q:What's the difference between a truck engine and a car engine?
The truck uses a diesel engine, which is mostly a gasoline engine. It's very troublesome. The project is very large. It involves the general problems of the circuit, the oil circuit and the drive system. Besides, the truck engine is so big that it is a problem whether the car can be loaded or not..
Q:What does a minivan mean?
Length is less than 6 meters and the maximum load of 4500KG truck as a small truck.
Q:What about the gas trucks?
According to the current use of this kind of large trucks, mainly gas outlets, many areas did not affect long-distance stations; another is the use of the existing domestic cylinders when using effect and significant change in the stock of less than 1/4 in the tank.
Q:Effects of air conditioning on cars after trucks
I suggest you'd better not take the air conditioner. First, installing the air conditioner will definitely affect the horsepower of the engine
Q:What brand is homebred double row small truck good?
Changan star card. A double, half of our village is the car, buy more practical, like a pickup truck as the most suitable rural household, and 560 kg, a little more than half a ton.
Q:What is the maximum value of the width of the wagon compartments?
When the cargo compartment is separated from the driver's cab, the maximum value of the outer width is 2.55 meters, and the maximum limit is 2.5 meters in other cases. The inside of the container is wide according to the announcement parameters. ("GB 1589-2004 road vehicle dimensions, axle load and quality limits" requirement)
Q:What are the brands of truck gearboxes?
FAW engine has its own CA6DM, Wuxi; gearbox is fast and own; Cummings, Dongfeng Renault; and his truck is fast; man, D10 series, Hangzhou; gearbox is HW series gearbox own Auman; Cummings, Weichai WP12; fast; Shaanxi is the main distribution Weichai and fast.
Q:Where do I need to hit butter from the truck?
The main direction is the ball head, vertical pin, steel plate cover, transmission shaft, cross shaft
Q:How many kilometers does the big freight car do to maintain? How do you do it?
A floor, not Wurenzidi, never do not talk nonsense,Oil 5000 km for the first time. For the direct exchange of filter,I'm twenty-one thousand for gear oil,If there is a frontier inspection, the frontier inspection oil will be added one month at a time without changing the "note: frontier inspection is also accompanied by gear oil"Butter, fifteen days in a rainy season, usually a month to play, hit the full bow, have to fight, and the steering gear have to play, the direction is the guarantee of the lifeThe four round of maintenance, a half back, if it is a long-distance car or dump trucks, have one month, half a month to adjust the brake maintenance, safety firstMuch of the tire tire 1200-20 is 14.5, but it must be the remaining small problem of radial tire is needless to say, it is a normal driver to do, such as: tight plate screws, screw shaft, rear axle screw, or regular check, check engine oil, gear oil,
