Product Description:

Composite Geonet Description:

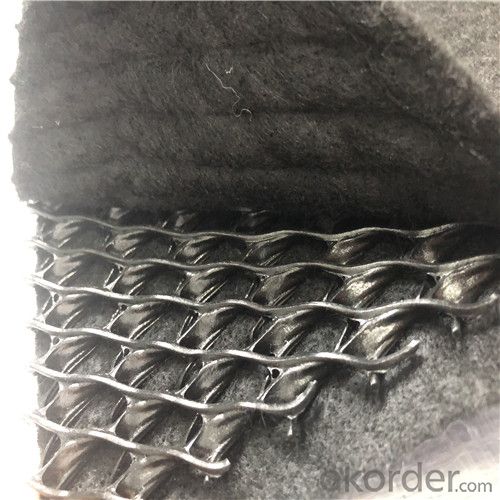

Composite geonet is a new type drainage material. It has three layers: three-dimensional geonet and nonwoven geotextile on both sides.
The material of geonet is HDPE, and the material of geotextile can be needle punched PET/PP nonwoven geotextile, and thermalbonded continuous filament nonwoven geotextile.

Tri-dimension Composite Geonet Drainage for Wall Construction

Composite Geonet Specification:
Thickness of geonet: 5mm to 8mm
Weight of geotextile: 200g/m2, as request
Width: 2m-4m
Length: as request

Composite Geonet Property:
Tri-dimension composite geonet has the property of geotextile (filtration function) and geonet (drainage and protection function), it can provide a function system: filtration-drainage- protection. The core of net with its unique tri-dimension structure can bear high compression load in construction and remain certain thickness, provide good water conductivity.

Composite Geonet Application:
Landfill drainage, roadbed and road drainage, railway drainage, tunnel drainage, underground structure drainage, the retaining back wall
drainage, gardens and sports grounds drainage.



FAQ

1. Do you supply free samples for customers?

Yes,we will supply free samples for you.Please send your address for us.

2. How Many years experience do you have?
We have been exported to more than 20 countries in the past 15 years.

3. How long do we usually reply your request?

We always reply our customer within 24 hours.

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Geotextile laying should be beyond the edge of how to set the number of specific requirements?
Can be more than 1 meter or so, I am specializing in the production of geotechnical materials, wish smooth
Q:Hello I have a bitter please: can help me get a geotextile vertical permeability coefficient test of the original records and reports
Hello, can only help you this, do not know useful to you useless factory production geotextile geomembrane drainage board
Q:Is the polyester nonwoven fabric geotextile?
Not geotextile. Polyester non-woven fabrics: mainly used for construction, roof waterproof as a base cloth, attached to the above sand, cement, etc., to prevent the role of sand leakage. Nonwovens are often used in construction and are a measure to prevent cracks. Geotextile manufacturers, for your answer
Q:Geotextile CBR tear strength rate is how much
Geotextile CBR bursting strength is generally in accordance with the national standard GB / T-2017 "geosynthetics static top breaking test (CBR method)" according to the national standard GB / T-2017 standard requirements of geotextile CBR strong pre-tension 20N. According to the national standard GB / T-2017 standard requirements of geotextile CBR strong rate of (50 ± 5) mm / min.
Q:What is the meaning of geotextile anchoring?
Geotextile anchorage: is the geotextile in the construction of civil engineering construction in the slope of the fixed, to prevent the geotextile movement.
Q:Alteration of highway seepage control geotextile is generally placed in what position
Apply to the grassroots level of water defense, the use of embedded, covered with thickness should not be less than 30CM, soil to be solid, to avoid uneven subsidence, cracks. Lap width should be greater than 15CM.
Q:Can the tunnel longitudinal drains be wrapped with geotextiles and wrapped with a waterproof board?
With geotextile wrapped drainage pipe is generally played the role of seepage drainage, do not need waterproof board (you said the waterproof board should be geomembrane it) Chong Hong geotextile material manufacturers
Q:Woven geotextile customs code
To see what material system, even if there are many kinds of chemical fiber, such as long fiber staple fiber, polyester nylon and what process after dyeing, yarn dyed, printing and other processes are impregnated coating, etc. you reported a name not check of
Q:Geotextile exports Nordic need certification
Production standards geotextile, geomembrane, composite geomembrane. Certificate, test report
Q:On the road where the laying of geotextiles should be how to shop
Like roadbed fill, fill the junction and so on can be shop, a layer of a layer of shop, fixed good.
