Product Description:

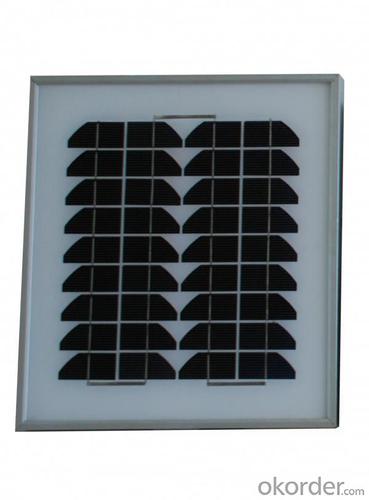

Solar Mono panels(10W-25W)

Introduction of Solar Mono panels(10W-25W)

CNBM Solar photovoltaic (PV) Panel is designed for large electrical power requirements. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar panel offers high performance of power per square foot of solar array. Monocrystalline silicon(c-Si): often made using the Czochralski process. Single-crystal wafer cells tend to be expensive, and because they are cut from cylindrical ingots, do not completely cover a square solar cell module without a substantial waste of refined silicon. Hence most c-Si panels have uncovered gaps at the four corners of the cells.

Characteristics of Solar Mono panels(10W-25W)

I Solar Cell : High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.

II Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.

III EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.

IV AI frame: Without screw, corner connection. 6 holes on the frame can be installed easily.

V Junction box: Multi function junction box with water proof.

VI Long lifetime: ≥25 years; Less power decrease.

VII Good performance of preventing from atrocious weather such as wind and hails.

VIII Resisting moisture and etching effectively, not effected by geology.

Standard Test Conditions of Solar Mono panels(10W-25W)

The opto-electrical specifications shown below are stabilized values being measured at Standard Test Conditions, Irradiance: 1000W/m2, Spectrum: AM1.5 at 25°C, The info below is subject to manufacturing tolerances. Where appropriate minutes of measurement are available and are used for the dimensioning of the installation.

Advantages of Solar Mono panels(10W-25W)

• CNBM Solar performance guarantees for 25 years

• 2 years guarantee for workmanship

• Timeliness of delivery

Delivery of Solar Mono panels(10W-25W)

• 120 piece per pallet

• 22 pallets per container

CNBM International Corporation's products including Monocrystalline Solar Panel, Polycrystalline Solar Panel have received and enjoyed famous reputation in many countries and regions in the world .As a solar panel supplier in China, we strive to provide our customers with excellent service, superior products and unmatched value.

Characteristics of Solar Mono panels(10W-25W)

Max Power Voltage Vmp (V)

17.6V

17.6V

18.0V

Max Power Current Imp (A)

0.57A

1.14A

1.39A

Open Circuit Voltage Voc (V)

22.2V

22.2V

22.6V

Short Circuit Current Isc (A)

0.62A

1.24A

1.49A

Max Power Pm (W)

10W

20W

25W

Temperature Coefficient of Cells

NOCT

47℃±2℃

Temperature Coefficients of Isc (%/℃)

0.064

Temperature Coefficients of Voc (%/℃)

-0.33

Temperature Coefficients of Pmp (%/℃)

-0.45

Mechanical Data of Solar Mono panels(10W-25W)

Power

10W

20W/25W

Dimension

350×290×18mm

650×290×18mm

Weight

1.3kg

2.2kg

Tolerance

±0.5W

±3%

The dimension of the modules can be changed according to the demand of clients

Limits of Solar Mono panels(10W-25W)

Operating Temperature

–40 °C to +85°C

Storage Temperature

–40 °C to +85°C

Max System Voltage

700V

Guarantee of Solar Mono panels(10W-25W)

Products Guarantee

2 yrs free from defects in materials and workmanship

Performance Guarantee

No less than 90% within 10yrs and no less than 80% within 20yrs

Certificates

IEC, ISO, TUV, CE

The Professional Production Line of Solar Mono panels(10W-25W)

CNBM Solar Mono panels(10W-25W)

The Professional Production Line of Solar Mono panels(10W-25W)

CNBM Solar Mono panels(10W-25W)
