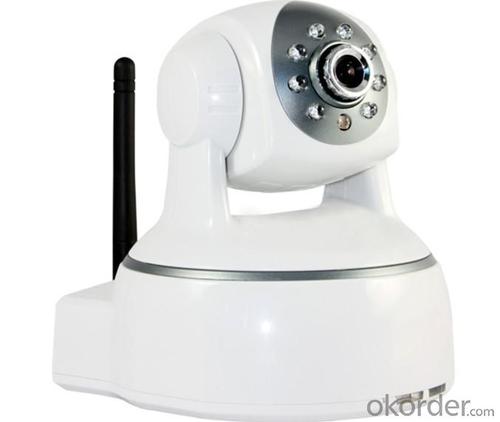

Mega pixel IP camera
- Ref Price:
-
- Loading Port:
- China Main Port
- Payment Terms:
- TT or L/C
- Min Order Qty:
- 100pcs pc
- Supply Capability:
- 10000pcs per month pc/month
- OKorder Service Pledge
- Quality Product
- Order Online Tracking
- Timely Delivery
- OKorder Financial Service
- Credit Rating
- Credit Services
- Credit Purchasing
Packaging & Delivery
| Packaging Details: | Neutral color box |
|---|---|
| Delivery Detail: | Delivery within 1 week against the deposit /payment received |
Specification Of Wireless Waterproof Mega Pixel IP camera
Image Capture | Sensor | Mega pixels CMOS Sensor |
Minimum illumination | IR lights on, 0 Lux | |
Lens | f=6mm, F=2.0, Fixed Iris | |
Lighting | 36pcs 850nm Infrared LEDs, 20m distance | |
IR_CUT | Support IR and color filter change automatically | |
Video and Audio | First Stream Resolution | 720P（1280*720）/640*360/320*180 |
Second Stream Resolution | 640*360/320*180 | |
Compression | H.264/JPEG | |
Frame rate | 30fps | |
First Stream Bit rate | 512Kbps ~ 4.096Mbps | |
Second Stream Bit rate | 90kbps ~ 1.024Mbps | |
OSD | Support | |
Network | Basic Protocol | TCP/IP、HTTP、SMTP、RTSP、FTP、DHCP、DDNS、UPNP、NTP |
Other Protocol | 802.11b/g/n | |
Other Features | Mobile Phone View | support |
Video control | support | |
Motion Detection | yes( 4 zone detection ) | |
Triggered Actions | Email /send message to alarm server | |
User Setting | Three levels | |
Date/ Time Setting | support | |
Upgrade | Upgrade from network | |
DDNS | A free DDNS provided by manufacturer | |
Hardware Interface | Ethernet | 10Base-T/100base-TX |
Physical Index | Weight | 616 g |
Dimension | 187mm(L)*75mm(W)*81mm(H) | |
Power | DC 12 V | |
Power consumption | <12 W | |
Operating temperature | -20℃~ 50℃ | |
Humidity | 10% ~ 80% non-condensing | |
Software(PC Side) | OS Supported | Microsoft Windows 98/2000/XP/Vista etc. |
Browser | Internet Explorer6.0 and Above or Compatible Browser, Safari/Firefox etc. | |
Application Software | IPCMonitor.exe |
- Q:Monitor camera lens 4-6-8-12-16MM difference.
- These numbers on the lens label refer to the focal length of the lens. The larger the value, the farther the distance the lens can reach, but the angle becomes smaller.
- Q:What color is the monitor when the camera is turned on?
- Do not really understand what you mean, is the camera after the power of the camera after the appearance of the state?
- Q:How to use the network cable to connect the surveillance camera?
- 2, some camera is a digital camera, direct use of cable digital transmission of video, cameras and video recorders are connected through the network cable on the switch, are transmitted through the network video.
- Q:Police surveillance camera and civilian What is the difference?
- Police monitoring camera and civilian is not much difference, according to the project budget to choose the right price of the product on it, there is a military equipment, need to go through the relevant military certification, as long as the relevant military certification, and ordinary equipment is very Big difference, at least the price can be put up.
- Q:How to make cable monitoring camera temporarily failed
- If the computer is used, then the driver can be temporarily closed, and then use the time to open. If the supermarket is like a large surveillance camera, a simple way to put the video line of the line of the line pull, and then use the time to connect, you can achieve the picture you said snow, temporarily turn off the screen effect. (Before school, the classroom has installed the camera, is to use this method, when the exam more cheating insurance -!
- Q:What is the difference between monitoring the camera and the usual?
- 3. Camera effect: monitoring with the camera, generally require high clarity, because the current computer camera commonly used sensor chip is Micron or modern photographic chip, these two kinds of chip camera, clarity are similar, if the use of 5 glass Lens, then the requirements are less stringent occasions are generally able to meet the basic requirements, and 30 frames per second speed is basically able to meet the monitoring needs. If you need better clarity, you can use the physical dynamic 1.3 million camera (not online nonsense 1.3 million, need to emphasize that the sensor chip and interface chip support physical dynamic 1.3 million camera, can really be considered 1.3 million ), This camera is generally better imaging results than the use of magnesium light and modern sensor chip camera, can get better than the average physical 350,000 camera effect, but the bandwidth occupied and CPU occupancy rate is very high. So easy to monitor the camera system easy to use.
- Q:Can I monitor the camera directly on TV?
- Bought the camera, connected to the power, the line connected to the computer, with the AV head, the TV can be transferred to the video state can be, as to how much money, hundreds of dollars it, depending on what kind of you The camera
- Q:Monitor what is good for video recorders
- Dahua's software is easy to use, but DVR's BNC plug is easy to loose, resulting in poor contact, sometimes the channel screen will not show or interfere with the screen.
- Q:Infrared surveillance camera at night (no light) no picture and flash is how the matter
- Check the time, pick the evening when people come close to the camera from the place to see if the infrared light is not activated, if the start, the infrared light will have a very weak red visible light is always bright. If there is no red visible light or not always bright, it can be basically the problem of infrared light. Of course, you also need to check whether the power is normal, if the voltage is low or the current is too small, it may cause the infrared light does not work.
- Q:Panasonic surveillance camera wv-cp704 / ch corresponding to which foreign models
- 3. That equipment directly connected to the computer test, whether normal. Gradually discharged to determine the key to the problem!
