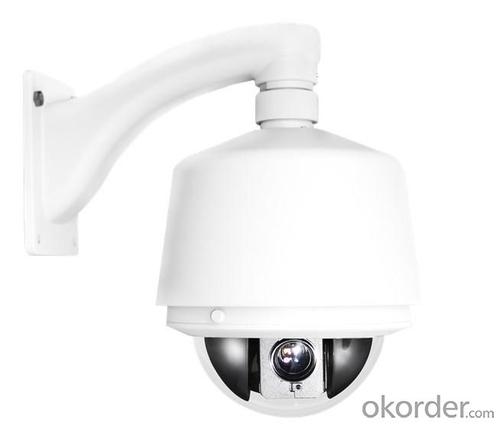

Dome Camera,PTZ-100H7BZ-2

Ref Price:
Loading Port:
China Main Port
Payment Terms:
TT or L/C
Min Order Qty:
100pcs pc
Supply Capability:
20000pcs per month pc/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Packaging & Delivery

Packaging Detail:Neutral color box
Delivery Detail:7-10 days after getting payment money



Specification of DOME CAMERA,PTZ

* PWM function,intelligent IR illumination & power consumption is variable,dependant the zoom factor



* IR distance 150M;  English/Chinese OSD menu;



* 12 pcs of the third generation dot-matrix high-power IR leds, the infrared leds with the integrative module synchronous linkage.



* In the two sides of IR led with infra-red segregation board;Lens won't reflect light.



* Dome ID, baud rate, communication protocol can be set via the controller;



* Supported Protocols : Pelco-D/P; Others on special request;



* 7",Total metal body construction, waterproof IP 66;



* Optional IP module (built in provision);



* Optional , 4 Alarm inputs and 2 alarm outputs.





Signal SystemPAL /NTSC
Focus ModelAuto / Semiautomatic / Manual
CommunicationRS-485
RS-485 ProtocolsPELCO_D , PELCO_P, 3D Locate etc.
Baud Rate1200 bps /2400 bps/4800 bps/9600 bps
Supporting All-in-one ModuleSony, Hitachi, SAMSUNG, CNB,LG, China brand etc.
Cruise Tours3 groups
Cruise Points Qty PerMax.16 points, dwell time user selectable
Pan Speed1°~180°/s(1~64Step Speeds)
Preset Speed180°/S
Preset Points220 Points
Preset Accuracy±0.01º
Pan Range360º
Tilt Range(-)5° ~  90º
Auto FlipHorizontal 180°,Vertical 90°
A-B Scan Speed5~180°/s (15-64 grade available)
IR ControlAuto / Manual
Menu LanguageEnglish/Chinese
Peak Emission Wavelength850
LedsØ20(12pcs)
Monitor Output1.0V[p-p] / 75Ω, PAL、NTSC, BNC
Address0-255
SecurityPassword protection: configured by the administrator
Privacy Zones (Masking)Support (Sony Module support 24 zones)
Heater In OperationAuto
Alarm Input4 inputs
Alarm Output2 outputs
Power-off  MemorySupport
Park ActionPreset / Patrol / Pattern / Pan scan / Tilt scan / Random scan
Protection LevelIP66+
Working Temperatureindoor:(0ºC~+40ºC)  outdoor:(-40℃~+60℃)
Power Supply  AC/DC15-28V ≤3A (standard power: AC24V3A)
Power Consumption≤20W
MaterialAluminum alloy
Package30.5*32*40CM
Net Weight6.5KG
Humidity≤95%(no condensation)
Mount OptionWall Mount; Corner Mount; Indoor pendant mount; Ceiling Mount

Dome Camera,PTZ-100H7BZ-2

Dome Camera,PTZ-100H7BZ-2

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is the 960h in the surveillance camera?
960H is a set of quasi-HD solutions defined and developed by Techwell and Sony, which incorporates Sony's new generation of 960H CCD Sensor and Effio solutions, and the DVR side uses Techwell's latest TW9960 analog quasi-HD A / D solution. 960H resolution of 960 * 576, relative to the traditional D1 (720 * 576) overall picture clarity (details) increased by 30%. For the original analog monitoring system to upgrade the upgrade, only the front-end camera and back-end storage replaced by 960H products, transmission part can continue to follow the original system coaxial cable, the system architecture and the original analog system basically unchanged, Engineering and users without the need for professional skills training can be the original D1 system upgrade to 960H quasi-HD, the overall increase in the screen 30% at the same time will not change the user's habits, suitable for limited budget but want to experience " User.
Q:How to remotely monitor the phone
1, the first network camera installed, connected through the network cable to the switch, the network camera connection is not the need for each network cable must be unified in a switch (such as: need to install a camera in the distance, if you want to install ten Camera so the traditional camera is necessary for each coaxial line must be inserted at the same time in a video recorder can be used normally, but the network camera can add a switch, that has ten network switches into a network only need to pull To another switch on the normal use, so do not have to spend a lot of trouble, save a lot of labor)
Q:Dahua monitor a single image upside down, the rest of the camera are good, how the matter, had been good!
The camera back to security, Guangan Lei Ke security for you to answer
Q:Monitor camera parameters how to see the bigger the bigger the better?
Suitable for the best is the Yeah, professional monitoring, space information
Q:Monitor the video recorder has been unable to work what is the reason
VCR hardware is damaged. This situation is recommended to contact the dealer for the repair.
Q:What is the difference and connection between the optical zoom and the digital zoom of the camera in the security monitoring?
Optical zoom is that we often say that the mechanical zoom (manual and automatic), manual is the lens we usually zoom, auto zoom is common is that we use the ball machine and PTZ to pull closer to control zoom.
Q:Monitor the camera focal length 3.6mm 4mm 6mm. What is the meaning?
Mm is the lens of the aperture, the number of millimeters, not the bigger the better, the smaller the camera according to the wider picture, the larger the lens the more narrow the picture clear
Q:What is the camera's shooting range? How much is the diameter?
The lens used in the camera is similar to the SLR camera, and is arranged in the order of 2.8mm, 3.6mm, 4mm, 6mm, 8mm, 12mm, 16mm, 24mm and so on. The smaller the number of millimeters, the wider the picture taken by the lens, but the closer the distance is; the larger the number of millimeters, the narrower the screen taken by the surveillance camera, but the farther the distance is.
Q:Monitor the camera feel infrared
There are two kinds of camera lens: one is a CCD is a sense of the infrared are infrared (day and night type) lens and color lens sense of infrared lens
Q:Monitor the camera why the black screen?
Fifth, the control camera control equipment, such as DVR / NVR / capture card, check its related software is running properly, whether the latest version, if not suggested to contact the manufacturer to upgrade the software can be.
