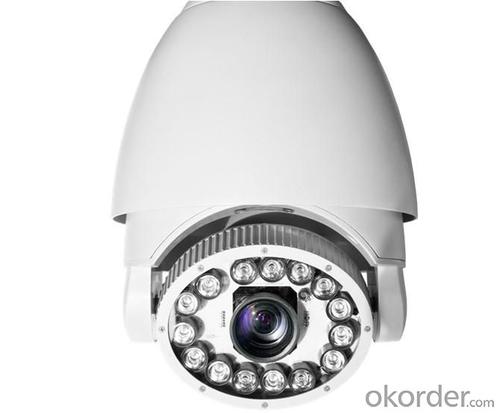

Dome Camera,PTZ-100H7B

Ref Price:

Loading Port:: China Main Port

Payment Terms:: TT or L/C

Min Order Qty:: 100pcs pc

Supply Capability:: 1000pcs per month pc/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Packaging & Delivery

Packaging Detail:	Neutral color box
Delivery Detail:	7-10 days after getting payment money

Specification of Dome Camera,PTZ

* PWM function, Adopt multi-angle super power Infrared LED, the brightness of image uniform and soft.

* Adopt LED ARRAY Infrared light source, IR distances can reach 150 M.

* English/Chinese OSD menu;

* Dome ID, baud rate, communication protocol can be set via the controller;

* Supported Protocols : Pelco-D/P; Others on special request;

* 7",Total metal body construction, waterproof IP 66;

* Optional , 4 Alarm inputs and 2 alarm outputs.

*Optional IP module (built in provision);

* Auto tracking function optional


Signal System	PAL /NTSC
Focus Model	Auto / Semiautomatic / Manual
Communication	RS-485
RS-485 Protocols	PELCO_D , PELCO_P
Baud Rate	1200 bps /2400 bps/4800 bps/9600 bps
Supporting All-in-one Module	Sony, Hitachi, SAMSUNG, CNB,LG, China brand etc.
Cruise Tours	8 groups
Cruise Points Qty Per	Max.16 points, dwell time user selectable
Pan Speed	1°～180°/s（1～64 Step free set ）
Preset Speed	180°/S
Preset Points	128 Points
Pan Range	360º
Tilt Range	1°～100°/s（1～64 Step free set ）
Auto Flip	Horizontal 180°,Vertical 90°
A-B Scan Speed	5~180°/s (15-64 grade available)
IR Control	Auto / Manual
Menu Language	English/Chinese
Peak Emission Wavelength	850
Leds	¢20=12pcs,¢8=42pcs
Monitor Output	1.0V[p-p] / 75Ω, PAL、NTSC, BNC
Address	0-255
Security	Password protection: configured by the administrator
Privacy Zones (Masking)	Support 2 zones
Heater In Operation	Auto
Alarm Input	4 inputs
Alarm Output	2 outputs
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan
Protection Level	IP66+
Working Temperature	indoor：（0ºC～+40ºC） outdoor：（-40℃～+60℃）
Power Supply	DC13V 5A(range:DC12V-14V)
Power Consumption	≤20W
Material	Aluminum alloy
Package	30.53240CM
Net Weight	6.5KG
Humidity	≤95%(no condensation)
Mount Option	Wall Mount; Corner Mount; Indoor pendant mount; Ceiling Mount

Dome Camera,PTZ-100H7B

Q: Camera gun 4MM, 6MM refers to what?: Camera gun parameters in the 4MM, 6MM, etc. refers to the camera is configured lens focal length.

Q: I now on the 4th floor balcony by a monitor, the main monitoring downstairs car, what kind of camera is good: Probably give you the next, the higher the number of lines the better the clarity of the camera, 480 lines enough for you to use, as the number of the larger number of millimeters, the narrower the narrow range, but clearly, the small number of meters wide to see the corresponding objects smaller

Q: Monitor host can not find the camera ip how to do?: Please make sure that the equipment is working properly (power supply is normal).

Q: Monitor camera parameters how to see: Focal length (f): focal length is the distance between the lens and the photosensitive element, by changing the focal length of the lens, you can change the lens magnification, change the size of the captured image. When the distance between the object and the lens is very far, we can use the following formula: lens magnification ≈ focus / material distance. Increase the lens focal length, enlarge the magnification, can be closer to the vision, the scope of the screen is small, the details of the vision to see more clearly; if the lens to reduce the focal length, magnification reduced, the scope of the screen expanded, See the bigger scene.

Q: There are cameras at the fork in the expressway: The first speed camera is a shape like a rectangular box, play a decisive role is actually connected with the radar module. Radar detection vehicle over speed will be linked when the camera to take pictures of evidence. The speed radar uses the Doppler effect principle. When the vehicle approaches the radar antenna, the reflected signal frequency will be higher than the transmitter frequency. When the vehicle is away from the antenna, the reflected signal frequency will be lower than the transmitter rate. This can be calculated by the frequency of the value of the target and the relative speed of the radar.

Q: Do i have a surveillance camera and a computer? Can the house be installed?: Analog camera can not, digital can

Q: How is the general surveillance camera connected to the computer?: (2) Remove the screws from the video capture card box, the video capture card fixed in the chassis, as shown in Figure 1.26.

Q: What is the meaning of the camera function heartbeat?: In the previous case, the implementation steps are as follows: 1, in a unified authentication system to open a "heartbeat" thread, the timing of the implementation of a visit A system operation, access to the A system S interface; 2, A system to achieve an interface S, Function for each access to an access request, then record a record of access, for example: 2009-3-18 fw 3, System A also need to also open a "heartbeat" thread, not separated by a certain time, access to the interface S is done Visit the record to see if the last record of the old record logo, if not, then prove that the single point of the system has the latest "heartbeat" came, its function is no fault.

Q: What is the difference between monitoring cameras CCD1 / 3 and 1/4?: Only 1/3 inch, 2/3 of the lens through the aperture of 2/3 inch, so under the same lighting conditions, 2/3 lens allows more light through, thus indirectly enhance the camera's illumination, ? 16MM of the small perspective, according to far, 8MM lens perspective, according to the relative, relatively speaking, the principle of record: the greater the number, according to the more distant, the smaller the angle; the smaller the number, The more widely

Q: Is to use two TV sets, and can use this one to monitor the camera. Can I? How should I pick, but also with what accessories. Please prawn help me, thank you: It is easy to monitor the monitor is the home TV can you know the three links it? Three-way head is the video signal is divided into two head is the first video signal into the two is the video signal out of the installation method: you connect the camera to the monitor Q9 head into the three-head video signal out of the two head plus an extension Line on the OK three links head practical low price is not easy to install the video signal is generally 2-3 yuan a you use the words to do security monitoring on the market have to ask the way to sell this method does not need any other parts of the re-use What the distributor does not need to listen to people blindly be careful to be black you price
