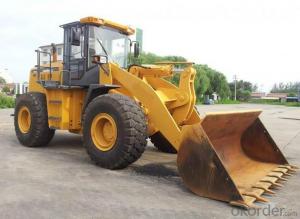

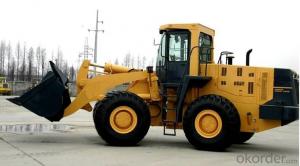

Front Wheel Loader YN 940 4 Tons 2.35cbm bucket capacity

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT or LC
Min Order Qty:
1 unit
Supply Capability:
10 unit/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

 Product Description

Condition: New

Model Number: YN940

Place of Origin: Shandong, China (Mainland)

Type: Front Loader, 20.5-25

Moving Type: Wheel Loader

Dimension(Long * Breadth * High):6910x2510x3300mm

Rated Load: 4000kg

Features

Certification: ISO9001:2008

Warranty: One year

After-sales Service Provided: Overseas third-party support available

Overall weight: 12360kg

Rated capacity: 2.5m3

Max. Dumping height: 3250mm



Specification

1

Rated load

4000kg

2

Overall weight

12360kg

3

Rated capacity

2.5m3

4

Max. Tractive force

100KN

5

Max. Breakout force

≥120KN

6

Max. Grade ability

30°

7

Max. Dumping height

3250mm

8

Max. Dumping reach

1100mm

9

Overall dimension L x W x H

6910x2510x3300mm

10

Min. Turning radius

5160mm





Engine

11

Model

Dongfeng Cummins 6BTA5.8-C150

12

Type

Turbocharged  water & air colling

13

No. of cylinder-bore/stoke

6-102x120mm

14

Rated power

112kw-2200r/min

15

Max. torque

670N.m

16

Min. Fuel-consume ratio

≤205g/kw.h



 Transmission

17

Model

YD13 electronic control gearbox

18

Gear shift

4 forward, 3 reverse.

Electronic control gear shift

19

Max. speed

36km/h





Drive axle

20

Main reducing spiral

Bevel gear grade 1 reduction

21

Decelerating mode

Planetary reduction, grade 1.

22

Wheel base

2845mm

23

Wheel tread

1865mm

24

Min. ground clearance

380mm



Hydraulic system

25

System working pressure

18MPa

26

Boom lifting time

5.5+0.2s

27

Total time

10+0.5s

28

Fuel tank capacity

120L

29

Leveling automatically

Yes



Break system

30

Service brake

Air over hydraulic disc brake on 4 wheels

31

Parking brake

Air break control



Tyre

32

Type

20.5-25

33

Front tyre pressure

0.35Mpa

34

Rear tyre pressure

0.2Mpa



 FAQ

Packaging Details:

1 units naked within 1 x 40HQ container.

Delivery Detail:

30 days







Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is the deadweight of the ZL50 loader?
The ZL50 loader has a weight of 17100 Kg of ZL50 loader basic parameters are as follows: 1 rated load rated load 5000kg 2 overall 17100kg 3 weight weight rated bucket capacity 3M rated capacity of 4 maximum tractive force 152KN maximum traction force maximum breakout force 5 is the largest rise more than 170KN 6 maximum grade ability maximum gradeability 30 ~ 7 maximum maximum dump height 3150mm 8 unloading height maximum distance maximum dump reach uninstall 1250mm 9 machine size overall dimension (L * W * H) 7920 x 3050 x 10 3400mm minimum turning radius 6640mm minimum turning radius
Q:How does a loader driver find a job?
First: to find a job, how to go to the local anti cheat 1 regular talent market, do not believe the so-called information that the roadside 2, in the regular online resume, but do not believe some company signs unclear information received from the other 3, if the interview request, the other is your company analysis under 4, probably the first to log on understand the company details online in advance, and determine what he or she wants to place 5, roadside recruitment information not letter, have brought you to where few people call each other: second. Comprehensive analysis of 1 factors, according to the contrast of recruitment inspiration to list your requirements, classification, basic situation: in line with the meet do not meet. 2, analysis - you are ready to apply for the unit status, industry situation, competition and other analysis of the situation, to understand the relevant information. 3, resume resume -- in addition to mass requirements, such as resume design, create new styles It differs from man to man. will have a good effect, such as the 4 - good to engage in creation of a "book" (will resume their articles together), 5 single release - (published from single copy). 6, work - resume (oneself hungry works with "video") (the personal information, work performance and other forms of record).
Q:Forklifts, forklifts, loaders, which belong to special equipment?
Forklift or, in the presence of (factory) dedicated motor vehicles inside, look at the last loader has not finished, unified in the Safety Supervision Bureau tube. The 8 categories stipulated in the regulations on safety supervision of special equipment. Ninety-ninth of the following terms used in these Regulations means: (a) boiler, refers to the use of various fuels, electricity or other energy, liquid contained heated to certain parameters, and output energy equipment, the scope of the provisions for the volume is greater than or equal to the pressure 30L steam boiler; outlet pressure is greater than or equal to 0.1MPa (g), and the rated power is greater than or equal to the pressure hot water boiler 0.1MW; organic heat carrier boiler.
Q:Does the loader need a driver's license? What driver's license is required?
Loaders are classified as wheeled self-propelled machines according to the type of vehicles. License on the agricultural vehicle classification, on the number plate number. According to the driver's license classification, M. Generally there is no special learning M driving school, push up, including M quasi driving model is B1, B2 or higher level driver's license can be opened.
Q:Loaders belong to mechanical power equipment or transportation equipment
It belongs to the transport equipment, mainly for the purpose of engineering, transportation and installation. The diesel engine and generator belong to the dynamic equipment, and the power of the loader is mainly used by itself. Besides the battery can be moved elsewhere, the engine is a fixed device and is generally not used for it, so it can not be regarded as power equipment.
Q:C1 driver's license to drive 50 loaders, traffic police can revoke the driver's license?
Driving not in line with type. Revoke driver's license. Serious detention and fines.
Q:Loaders often have hidden safety problems
I. The general safety technical requirements of loader drivers shall be carried out in accordance with the general technical requirements of general earthwork machinery.Two. Before the loader work, the preparatory work shall be carried out in accordance with the relevant regulations of the excavator.Three, loaders in the work should pay attention to the following safety matters:1, brakes, speakers, steering machines should be complete, sensitive, in driving to comply with: "traffic rules."". If you need regular driving on the highway, the driver must have the "motor vehicle driving license".
Q:What is the relationship between a forklift and a loader?
Forklifts and loaders are two mechanical representations. The technical term is loader, which is generally referred to as a forklift, because loaders are basically equipment for carrying buckets and shovels.The loader is a widely used in earthwork construction machinery construction, highway, railway, electricity, ports, mines and other construction projects, it is mainly used for shovel of soil, sand, lime, coal and other bulk materials, can also be used as a mild shovel of ore and hard soil digging etc.. Different auxiliary working equipment can be changed, and the lifting, lifting and other materials such as wood handling can also be carried out.In the road, especially in the construction of high-grade highways, loaders are used for filling and excavating of subgrade engineering, aggregate and loading of asphalt mixture and cement concrete field. In addition, the soil can be pushed, flat ground and other mechanical traction operations. As the loader has the advantages of fast operation, high efficiency, good maneuverability and easy operation, it has become one of the main types of earthwork construction in the construction of the project.
Q:What should I pay attention to when learning the loader?
Note: learning learning loader loader do: a light two stable; three from four, Qin; five coordination, six prohibited. A: that is in the loader cab floor abutting the heel, foot and the accelerator pedal to keep parallel. Gently press down the oil pedal and always keep the pedal under pressure. In this way, the fuel can be fully burned, and when the operation is not too large, the accelerator makes the driver's foot heavy and hand disorderly. Two stability: Loader in the work, always keep the throttle. Under the general working condition, the maximum throttle is about 70%. This can make the machine in the work of people like jogging as "uniform breathing" and can greatly reduce fuel consumption, thereby prolonging the service life of the machine, but also benefit in this work naturally reflected. The advantage of the question is to reduce the loss at all times and achieve long-term economic results. Three off: that is, during the loader operation, the feet should be separated from the brake pedal and flat on the cab floor. Never step on the brake pedal. The working environment of loaders is often on uneven work sites. If the foot is treading on the brake pedal for a long time, the driver will inadvertently brake automatically due to the movement of the car up and down. Under normal circumstances, use the throttle deceleration method to control the car condition and shift gears. In this way, the brake system overheating caused by frequent braking is avoided, and the quick speed increase of the loader is also convenient. It avoids a series of seemingly difficult problems, such as the heating and braking of the disc when the brake system is overheated, and sometimes the phenomenon of braking, as well as the braking, afterburning, pump running, oil and so on.
Q:The loader needs to place detailed details of the butter
The work pin, the drive shaft, the cross, the swing frame, the joystick, the steering cylinder, the fan shaft, the pump
