Product Description:

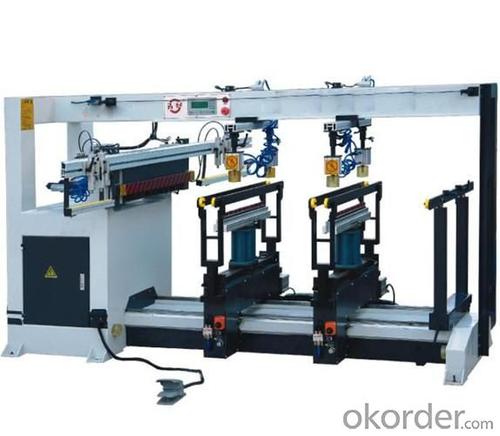

Introduction of Three Heads Multi Drilling Machine MZ73213F


1. Patented product, the very 1st creation in china.

2. Automatic loading, feeding, drilling unloading and pilling up working pieces.

3. Not only worked by single unit with automatic loading and unloading, but also linkage with other drilling machines drilling the side, top and bottom holes in one shot.

4. High efficiency: Process 13 pieces of board per minute by connective drilling.

5. Ease labor intensity: Loading and unloading automatically


Technical Parameters of Three Heads Multi Drilling Machine MZ73213F


1. Automatic loading and unloading standard height 640mm (custom-made needed for higher than 640mm)

2. Automatic loading and unloading maximum width 800mm

3. Automatic loading and unloading maximum length 2500mm

4. Automatic loading and unloading minimum width 160mm

5. Automatic loading and unloading minimum length 200mm

6. Process 13 pieces of board per minute for automatic loading, feeding, drilling and unloading.


Order Mode


1. Single machine (top-drilling and top-bottom drilling) with automatic loading and unloading device.

2. Linkage multiple machines with automatic loading and unloading device.

3. The number of drill rows, for example: 2 rows on the side, 4 rows on bottom and 4 rows on top.


Characteristic of Three Heads Multi Drilling Machine MZ73213F


1. Removable vertical drill rows, precision Italian gear and rack transmission, and Germany positioning digital display with "clear" and "reset" function.

2. Angular air lock of vertical drill rows, convenient and efficient.

3. German linear guides, Taiwanese drill rows.

4. Adjustment vertical drill rows drilling stroke (declining height), better efficiency.

5. Buffered function of the drill rows feeding avoided materials bulging out while at blind hole drilling.


Specification of Three Heads Multi Drilling Machine MZ73213F





Max. Drilling Dia.


Max. Drilling Depth


Number of Spindles


Distance Between Two Spindles


Minimum Distance Between Two Centre of Vertical drill Rows


Spindle Speed


Total Power

4.5 kw

Air Consumption


Net Weight


Overall Dimensions



Packing for Three Heads Multi Drilling Machine MZ73213F


 Three Heads Multi Drilling Machine MZ73213F
