Product Description:

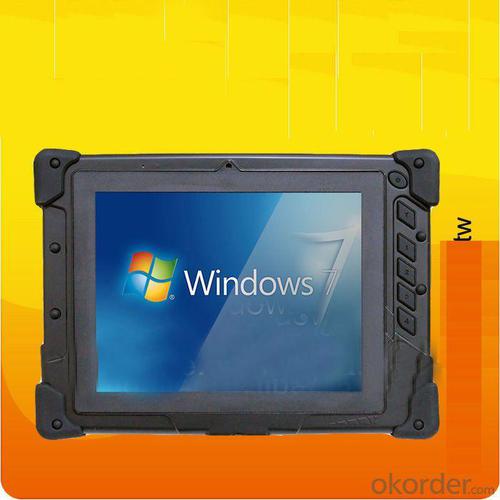

8" Tablet PC



Model:IC-8Size:8"
CPU:Atom N2600OS:windows 7
Memory:2GSSD:32G upgradable to 256G SSD
IP:IP65Battery life: 10 hours
Lead time:8 weeksWeight:1.2Kg





IP65 water & dust proof

Option functions:

  • 2D bar code scanner

  • RFID

  • MSR

  • Smart card reader

  • Dual camera - front 2M, rear 5M

  • 3.5G

  • U-Blox GPS





System
CPUIntel® Atom Processor  Dual Core N2600 1.6GHz / 1M L2 Cache
Memory1 x 204-pin  DDRIII SO-DIMM Socket support / up to 2GB
ChipsetIntel Express Chipset NM10
StorageMSATA SSD 32G to 256G
Operating SystemMicrosoft® Windows® Embedded Standard 7 / Windows® 7 Professional / Linux
DisplayTFT LCD 8 inch
Touch type : 4 Wires resistive type
Backlight Type : LED
Display Resolution : 1024 x 768 (XGA)
Luminance : 500 nits
Network InterfaceIntegrated WLAN 802.11 b/g/n
Integrated Blue Tooth 3.0
Finger Print  E-field Swipe Fingerprint Sensor
Data SecurityTPM 1.2
Control Switch and Buttons1 x Power on/off button
1 x Barcode Scanner trigger button
1 x Function Key button (default on/ff control  WIFI , BT , GSM/UMTS communcation, also can user define)
1 x Function Key button (default setting to CCD capture, also can user define)
2 x Function Key button (user define)
Indicator1 Power / 1 HDD / 1 Battery status LED
Speaker & MicrophoneBuilt-in speaker & microphone
Light adjustmentHardware
I/O Ports
USB2 x USB 2.0 Type A
DC Jack1 x DC Power input (16V / 4A)
RS-2321 x DB-9 RS232 Full function connector
Micro SD1 x Micro Secure Digital (SD) card slot
Expansion Docking PORT1 x 24 pin docking connector(Interface include Power, USB , Audio)
RJ451 x 10/100 Ethernet , Support POE (Power-Over-Ethernet applications up to 25.5W)
SIM Socket1 x SIM socket (located undermeath the external battery pack)
HDMI1 x Mini HDMI connector
Power
AC/DC AdapterInput AC: 100~240V Output DC: 16V / 4A
Battery PackInternal battery , one  cell  DC 3.7V/ 920mAh  support hot swap under S3 state
External 3S2P, 6 Cell,   DC 11.1V/ 6200mAh for main battery
EnclosureABS+PC Plastics and rubber
Stylus1
Dimensions251 x 181 x 3 (mm)
Weight
Environment
IP Code ( IEC 529 )IP 65
Vibration MIL-STD-810G     Random:  20~2000 HZ  / 7.69G
MIL-STD-810G     Sine : 5~500 HZ / 2G / 5G
Operating Temperature -10°C – 50°C
Storage Temperature -20°C  -  60°C ( Non Condensing )
RegulatoryCE / FCC  Class B / FCC ID
EN 60950-1 2005
Drop ( Body)120 cm
Option Functions
GSM/UMTS  Up to HSUPA 3.75G
GPS High performance positioning engine. Surport 50 channels.
GPS L1 Frequency, C/A code.  SBAS: WAAS/ EGNOS/MSAS
Camera Front (2M)& rear (5M)dual CMOS Camera
Bar code scanner 1D or 2D(UART Interface)1D symbologies: EAN/UPC, GS1 Databar (limited expanded & omni-directional), RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes (Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post)
2D symbologies: Data Matrix, PDF417, Micro PDF 417, Codablock Maxicode, QR, Aztec GS1 composite codes
Scan rate : 2D mode: 56 images/s auto adaptive
Scan Angle : 38.9° (Horizontal), 25.4° (Vertical)
Optical resolution : 752 (H) x 480 (V) pixels, 256 gray levels
Print Contrast : down to 25%
Version : Standard range and high density
MSR(USB Interface)Media formats: ISO 7811, AAMVA, and other F2F formats
Swipe speed: 7 to 150 cm per second, bi-directional
Operating Life: 1,000,000 cycles minimum
Smart card reader Operates ISO 7816 microprocessor or memory card
Transfer rates: 9600 to 115200 bps
Operating Life: 1,000,000 cycles minimum
RFID 13.56 MHz Mifare DESFire Reader / ISO 15693 Reader
Reading distance: 30mm ~ 50mm depending on tag types
