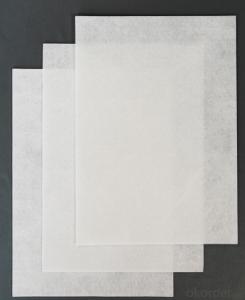

Spunbond Non-woven polyester mat is the reinforce laymer used foe SBS/APP . It is an ideal material for bitumen waterproof membrane .It include long fiber polyester mat and short fiber polyester felt.
The advantage of the spunbond polyester mat1).High tensile strength and elongation
2).Resistance to root puncture ,Good permeability
3).Resistance to high temperature and freezing , anti-aging and corrosion resistance
Compared with short fiber polyester mat , the long fiber polyester mat has :
1. Stronger tensile strength and elongation.
2. Stronger thermal stability and tear resistance.
3. Strong resistance to puncture capacity impregnation.
4. Stronger resistance to corrosion and aging resistance.
Data sheet:| Typical Properties | Test Method | Tolerance | Standard Value(Conventional Type) | |||||||||||
| TDF Product Type | 0120-AB | 0130-AB | 0140-AB | 0150-AB | 0160-AB | 0170-AB | 0180-AB | 0190-AB | 0200-AB | 0220-AB | 0230-AB | 0250-AB | ||
| Mass Unit Area -g/m2 | DIN EN 29073 | -5% * | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 | 220 | 230 | 250 |
| Thickness -mm | ±15% | 0.8 | 0.85 | 0.9 | 0.95 | 1.1 | 1.2 | 1.25 | 1.3 | 1.3 | 1.35 | 1.35 | 1.4 | |
| Max Tensile Strength (MD/CD) -N/5cm | DIN EN 29073 | -10% * | 400/250 | 420/300 | 450/350 | 500/400 | 550/420 | 580/450 | 600/480 | 620/520 | 650/560 | 750/640 | 780/680 | 900/780 |
| Elongation at Max Tensile Strength (MD/CD) -% | DIN EN 29073 | -15% * | 25/28 | 26/30 | 28/30 | 28/30 | 30/32 | 30/32 | 30/35 | 30/35 | 30/35 | 30/35 | 32/35 | 35/40 |
| Free Load Shrinkage (MD/CD) (200ºC/10min) -% | ≤ | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | 1.5/1.0 | |
| Trapezoid Tear Strength (MD/CD) -N | Inner Standard | -15%* | 200/180 | 210/190 | 220/200 | 250/220 | 270/240 | 280/260 | 300/280 | 350/300 | 400/350 | 450/400 | 480/430 | 500/450 |
