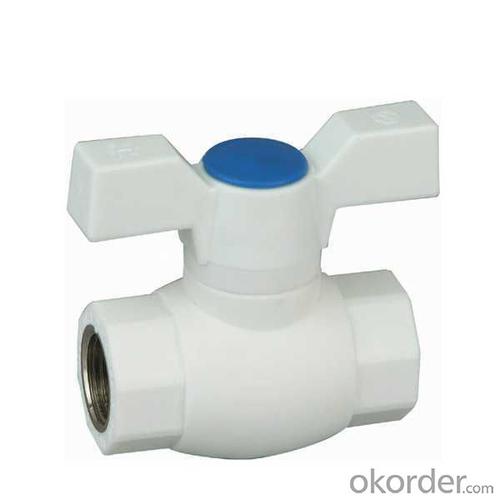

High Quality E5 Type PP-R Double female threaded ball valve with brass ball PP-R ball valve with brass ball size:1/2'',3/4''

1.Material:Random Polypropylene(Hyosung R200P);
2.ISO9001&ISO14001;
3.Standard:GB/T 18742.3-2002, DIN8077/8078;
4.OEM also ok

Q: Pneumatic ball valve q641f-16p what do you mean?: Q is a ball of the code, 6 representative driving mode is pneumatic, 4 flanged ball valve structure is straight through channel 1 on behalf of the floating ball, f sealing surface is the fluorine plastics, 16 represents the pressure of 16 kg, P represents the body material is stainless steel, Shandong Huadian valve.

Q: How can a steel ball in a steel ball valve be put in?: This kind of ball valve usually has an external direction of compression, an arrow. Usually, the ball is filled from the direction of the arrow tail and inserted or tightened into the circlip.

Q: Maintenance of PPR pipe ball valve is live or hot melt?: CharacteristicFirst, wear-resisting; because the hard sealing ball valve spool is alloy steel spray welding, sealing ring is alloy steel surfacing, so hard sealing ball valve in the switch will not cause too much wear and tear. (its coefficient of hardness is 65-70)Two, good sealing performance; because the hard sealing ball valve sealing is artificial grinding, until the valve core and the sealing ring completely in conformity with the use. So his sealing performance is reliable.Three, switch light; because the hard sealing ball valve sealing ring at the bottom of the spring, so that the sealing ring and valve tightly held together, so when the outside force exceeds the preload of the spring, the switch is very light.Four, long service life: has been widely used in petroleum, chemical, power generation, paper making, atomic energy, aviation, rockets and other departments, as well as people's daily life.

Q: Please professional help guide: accidental discovery of connection pipe and valve (mark position diagram) can rotate, but there is no problem with the 10 Water Leakage.Please professional help guide: accidental discovery of connection pipe and valve (mark position diagram) can rotate, but there is no Water Leakage problem, while the valve under the same position is fixed and can not rotate, will this situation is normal? Is it possible to leak water in the future?: This nut should be tight and can not move. There is a rubber pad in it, so it is not leaking at all. It will leak for a long time. It is suggested that the wrench should be tightened clockwise (from top to bottom)

Q: What is the diameter of the 2 inch ball valve?: The internal diameter of the valve is generally international to inch, the domestic standard for DN, 2 inches of ball valve, its inner diameter is DN50.

Q: Calculation formula of ball valve flow: The sectional area of diameter of DN15, DN25 and DN50 is respectively:DN15:15*3.14/4=176.625 mm, 0.0177 square decimeter.DN25:25*3.14/4=490.625 mm, 0.0491 square decimeter.DN50:50*3.14/4=1962.5 mm, 0.1963 square decimeter.A pipe flow rate of V=4 M / s V=40 decimeter / s, and the 1 liter =1 cubic meter, the pipe flow respectively (cross-sectional area multiplied by the velocity):DN15 pipe: flow Q=0.0177*40=0.708 L / sec,It's 2.55 cubic meters per hour.DN25 pipe: flow Q=0.0491*40=1.964 L / sec,It's 7.07 cubic meters per hour.DN50 pipe: flow Q=0.1963*40=7.852 L / sec,It's 28.27 cubic meters per hour.Note: a flow rate must be given to calculate the flow rate, which is calculated in accordance with 4 meters per second.

Q: What does "2P" ball valve mean?: The left valve body and the right valve body consist of two parts.

Q: Q41F-16-64P this is the ball valve, what type, please answer in detail, thank you!: Q--- ball valve4---- flange connection1----- ball valve is floating ball (ball valve has floating ball and fixed ball points, 7 represents the fixed ball)F----PTFE- PTFE seal (PTFE PTFE),16-64---- ball valve nominal pressure is 16-64 kg (1.6-6.4Mpa)P---- ball valve body material is 304 stainless steel

Q: The difference between gate valve, ball valve and butterfly valve: Butterfly valve plate and the ball valve is rotated around its own axis for movement; valve plate valve for the lifting movement along the axis; butterfly valve and gate valve can adjust the flow through the opening; the ball is not easy to do this.1. The sealing surface of the ball valve is spherical2. The sealing surface of butterfly valve is circular cylindrical surface3, the sealing surface of the gate valve is flat.

Q: Water heater ball valve is not very easy to pull, why does it feel bad?: Use the hair dryer, hot air gear to blow for a while, slowly screw, a bit loose, continue to screw, you can completely screw, and more than a few twists and turns, long time does not move, it will be stuck
