Product Description:

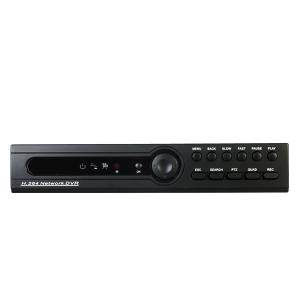

H.264 Embedded LINUX Operating System 960H Standalone DVR Digital Video Recorder Security
Specification
4CH 960H real Time Recording / 4CH 960H Playback,
4ch Video in / 1ch Video out, 1 x HDD,
4ch Audio in / 1ch Audio out,
Support VGA, PTZ, 3G-WIFI,With USB Mouse,
DC12V/2A adapter,remote controller ,support HDMI
Parameters
Model | TS-2004 |
System | Main Processor | Industrial embedded microprocessor |
Operating System | Embedded LINUX |
Video parameter | Video Compression | H.264 |
Video standard | PAL/NTSC |
Video Standard | PAL:960H(960*576)、D1(704×576) NTSC:960H(960*480)、D1(704×480) |
Playback video standard | Support 4CH 960H Playback |
Image control | adjustable, streaming can be changed to fixed or change |
Dual stream | Each channel can set dual stream, the resolution of sub-stream can not be higher than main stream. |
Motion detection | Each channel can set 192(16×12) zoom, 1-6 level be adjustable |
Privacy Mask | Support 1 zoom privacy per channel |
Audio parameter | Coding standard | G.711A |
Intercom | Two way intercom |
Audio input | 4 RCA Audio in |
Audio output | 1 RCA Audio out |
Alarm | Alarm input | N/A |
Alarm output | N/A |
Recording management | Recording | Support manually, automatically, motion detection, alarm trigger, etc |
Recording save | Hdd, Network |
Video speed | PAL 960H @ 25 fps/ NTSC 960H @ 30 fps |
Video playback | Support 4-ch playback |
Backup | Support HDD, Recorder, USB flash and backup |
Video | Video input | 4CH BNC |
Video output | 1-analog video of BNC (1.0Vp-p, 75Ω)、1-VGA output and 1-HDMI(max: 1920×1080) |
Capture | N/A |
Others | Network | 1- RJ45, 10/100M adjustable |
Communication | 485, support half-duplex |
USB | 2-USB 2.0 |
HDD | Support 1 SATA interface, （max: 2TB） |
Power | DC 12V |
Power supply | ≤10W（with adaptor、without HDD)） ≤20W(（with HDD)) |
Working temperature | 0℃-＋55℃ |
Woking humidity | 10%－90% |
Dimension | 250mm×213mm×45mm |
Weight | 0.84KG（without HDD) |
Installation | Rack installation, desktop installation |
Drawing
- Q:There are hard disk video recorder also need video server, what is the difference between the two, do a large monitor with which
- DVR and video encoder principle is the same, are analog video signals into digital signals, easy to store;
- Q:Digital DVR parameters
- One way VGA analog or DVI digital display mode output (frequency: 60HZ, resolution: 800X600)
- Q:Digital hard disk drive hard disk how to partition
- Hard disk video recorder on the original video will be lost, if it is important video, caution with this method.
- Q:How to video recorder on the hard disk video recorder connected to the Internet, the specific how to operate?
- If the user feels that this method mapping port is very troublesome, you can not use Method 1 to configure. There is also a way to open the TP-LINK router DMZ function (other brands of routers also have this feature), this will put the hard disk video recorder port are mapped to the INTERNET network, as shown below, as long as the "DMZ state "Select" Enable "," DMZ host IP address "to fill in the hard disk video recorder IP address, save to take effect.
- Q:Hard disk video recorder no usb how to copy the file inside how u disk
- DVR brand specifications are complex, and some products only VGA output interface, does not provide USB interface. In this case, do not increase the cost of data replication method, can only take off the hard disk linked to other computers to read.
- Q:What is the difference between a network DVR and a digital video recorder? Is it possible to remotely monitor it?
- One is DVR. One is the NVR, DVR back-end network port, is the analog signal into a digital signal, you can access the network within the network DVR video and video, NVR is connected to the switch, the front is also the network search network camera, Received on the switch. NVR has two network ports, one is to manage the network camera, one is to access the external network, easy to access and control the external network.
- Q:Matrix, computer, hard disk video recorder, how to connect the TV wall
- Switch is a network of centralized output of a platform, when all the equipment access switches, and then through the oil filter to upload or download to the exchange, and finally sent to your various equipment!
- Q:Digital hard disk video recorder, the power indicator light flashes, the hard disk can not start. Unplug the hard disk power, you can start, why.
- 1, the hard disk problem, replace a new hard disk to see if you can start, 2, the video camera power supply is insufficient, replace a foot of the power up, especially Taobao of the packet recorder video power are Is rotten.
- Q:What is the amount of data per channel for a digital video recorder? What is the hard disk space occupied by CIF and D1 machines per hour per hour? Column formula
- If you use CIF resolution, usually 150M / hour 200M / hour 300M / small 400M / hour.
- Q:Digital hard disk recorders and network DVR What is the difference
- Digital hard disk video recorder is connected to the network camera video recorder, network hard drive video with a network function of the video recorder, but in real life we have confused the two is the same no need to be true
