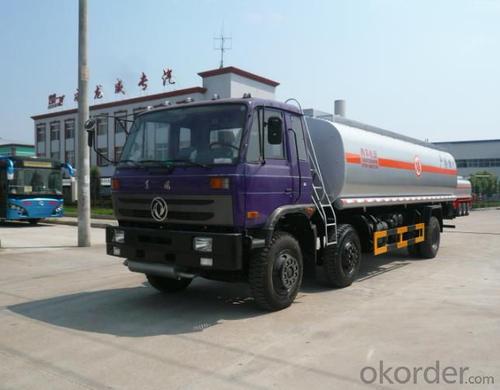

Fuel Tank Truck, 6X4 Fuel Truck

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 PCS
Supply Capability:
1500 PCS/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Fuel Tank Truck, 6X4 Fuel Truck

Product Details

Basic Info.

Model NO.:CLW 5160



Transmission Type:Manual

Power:Diesel



Load Capacity:21-30t

Emission Standard:Euro 3



Tank Volume:5001-10000L

Drive Wheel:8×4



Seats:≤5

Horsepower:<150hp



Engine Capacity:<4L

Storage:Oil



Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT



Tire Design:Bias

Condition:New



Description:Fuel Tank Truck

Volume of Tank:6000L, 8000L,10000L,12000L,15000L



Tire:11r22.5/12r22.5/11.00r20/12.00r20

Engine Model:Dongfeng, Deutz Ranault, Yc Sc Wd



Driving Axle:4X2/ 6X4/ 8X4

Chassis Brand:Dongfeng Sino HOWO Faw Foton JAC Forland Shaman Fo



Tank Material:Q235 Carbon Steel(According to Your Demand)

Exhaust/Power(Kw):90HP, 102HP, 120HP, 136HP, 137HP, 150HP, Ect



Material:Carton Steel Q235B, Stainless Steel 314, Alloy

Warranty:Maintenance and Free Technology for Life



Export Markets:Global

Additional Info.

Trademark:CLW Brand



Packing:Naked Package and Waxed Before on Board

Standard:CCC, ISO14001



Origin:Hubei

HS Code:8705909990



Production Capacity:800 Unit/Month

Product Description



Produce name 6000-8000l fuel oil tanker ,4x2 truck diesel container truck, 6x4 290hp fuel  truck
Products modelFuel tanker truckVechicle size5995X2000X2350
Total mass9400Tanker volum8000L
Empty truck weight4215Tanker size5000X1750X1150
A/D angle12/18F/R hang1032/1658
Axles quantity2Wheelbase3800
Wheel loading2480/4015Max speed80
Chassis information
Chassis modelDFA1070SJ35D6Tyre size7.00-16
Tyre quantity6Front track1506
Fuel typeDieselRear track1466
StandardGB3847-2005, GB17691-2005 Euro III
Engine model75KW/102HPD28D10-4DA
Tanker information
Tanker materialQ235 carbon steelTanker thick4mm or 5mm
Tanker volum8000LTanker colorOption
Fuel pumpCLW fule pumpDispenser (fule meter)Control by computer, can show the money, the fuel volum
Tank Description1. Shape: Oval
2. Material: Carbon steel Q235
3. Thickness: 5mm
4. Left hand drive or right hand drive
PumpModel: 80YHCB-60
Flow rate: 60m3/h
Working pressure: 0.6MPa
Rotation speed: 970R/min
Working Efficiency: 72%
Suction height: 7meters
Temprature: Blowe 80 °C
Standard EquipmentEquipped with gravity valve, tool box, fuel pipes, climb ladder, man holes.
Optional EquipmentFiscal refueling machine, additional tool box, fuel pump and flow meter.
Can be separated into several rooms to carry different fuels.

Fuel Tank Truck, 6X4 Fuel Truck

Fuel Tank Truck, 6X4 Fuel Truck


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is meant by "truck rotation" on the truck's exercise card?
Battalion turn does not mean that the so-called "battalion turn non", as its name suggests, is the operation of the vehicle into non operating vehicles. What we usually refer to as "transferring non - cars" mainly refers to the elimination of taxis or the elimination of freight cars into local licences.
Q:How to adjust the truck brake?
In fact, it's simple, because the large trucks are not overloaded. Brake pump generally do not know, the front wheel, rear wheel boats for adjusting nut, heavy vehicles on the road only myself.
Q:What do you mean, truck 8+8 and 8+5? Thanks a lot, little brother
Look at the frame, has two layers, the outer layer is main girder, are generally 8 thick, the inner layer is a secondary beam, beam not so long, to a smaller, 8 thick, 7 thick, 5 thick, 4 after several, you can measure the actual. There are three - story frame, three - story frame used in dump truck, that is, in the upper two layers plus a sub - frame, are generally used for heavy load.
Q:What is the five axle bridge?
Bridge refers to the drive axle. The drive axle is the mechanism at the end of the transmission line that changes the speed and torque from the transmission and passes them to the drive wheel.
Q:How to calculate the toll rate of freight cars and highways? How much is the surcharge?
Weightcharge billing standards are as follows: the light load (no load) heavy trucks (the current charges 4, 5 types of vehicles, namely 3 or more axis trucks) according to the current highway and other closed toll road fees reduce a vehicle charges tolls charged (the minimum current charges of 3 kinds of models);
Q:How many gears are there at the top of the truck?
Take the 5 gear car as an example, the gear ratio of the 1 gears is 3 times of the 5 gear, and the 4 gear is about 1.2 times of the 5 gear. With more gears, the gearshift range is wider than the optional range. The speed of the engine is very high, in thousands of, but the torque is not large, only about 200N.m. Such a small torque acts directly on the car body and is obviously unable to pull. Therefore, through the gear combination to achieve different speed ratio, torque amplification, while the speed decreased accordingly. Each gear transmission ratio between different, such as file total transmission ratio hypothesis 5 is 10, which is the torque of the engine 10 times magnification, and the rotation speed is reduced to 1/10, such as the engine speed of 3000 rpm, so the tire 5 stall speed only 300 rpm and torque is expanded to 10 times.
Q:Why do the rear brakes of pickup trucks use drum brakes?
Because of its reliability and powerful braking force, drum brakes are still available on many models (mostly in the rear wheels).Brake drum brake cost than the high cost, and because the rear wheel in the daily running and not braking, so this is a compromise of a cost function.The drum brake is pushed by the hydraulic device to brake the brake disc inside the brake drum to make the brake pad friction with the inner surface of the brake drum rotating with the wheel.
Q:How many kilometers is the wagon maintained?
Check that the front and rear lights are complete (including headlights, sight lights, turn signals, brake lights, reversing lights, and fog lamps).8, check the tire pressure and wear, according to the provisions of tightening torque, tire screws, tire pressure added to the provisions of the model value, according to wear conditions for tire transposition.
Q:Personal new shopping cart on the card need what procedures?
The truck will go to the vehicle administration office for the driving permit, and then go to the transportation department to do the operation certificate. Driver should apply for qualification certificate
Q:Do all new vans need new tires?
Tyre replacement is not recommended.
