China HJ Series High Efficiency Jaw Crusher Good Quality

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 pc
Supply Capability:
10 pc/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

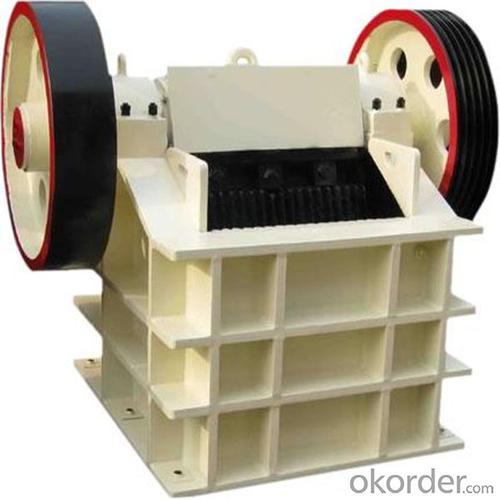

China HJ Series High Efficiency Jaw Crusher 2015

HJ jaw crusher in mining, building materials, construction and other departments are mainly used as coarse crusher and crusher. According to the inlet width size is divided into large, medium and small three, inlet width is greater than 600 mm for large machines, feed port in 300-600 - mm width for medium-sized machine, feeding mouth width is less than 300 mm for the minicomputer. Jaw crusher structure is simple, easy manufacturing, reliable work.


Technical data:

Model

Feed Opening (mm)

Max Feeding (mm)

Discharge Opening (mm)

Capacity(t/h)

Power (kW)

Machine Size(mm)
(mm)

HJ98

650×980

560

75-175

110-350

90-110

2470×2000×2180

HJ110

800×1100

660

100-200

215-510

110-132

2875×2472×2530

HJ125

950×1250

800

125-225

280-650

132-160

3320×2600×3120


Application

Jaw crusher is widely used in various materials processing of mining &construction industries, such as it is suit for crushing granite, marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and some other mineral &rocks.


Jaw Crusher Introduction:



 Jaw Crusher is one of the most popular stone crusher in the world, Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 320MPa.



Jaw Crusher is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries and etc. Many models are available according to your different fineness requirements.



 Jaw Crusher Structure:


Jaw crusher structure consist of main frame, eccentric shaft, big pulley, flywheel, moving jaw, side guard plate, toggle plate, toggle plate back seat, adjusting screw gap, the reset spring, fixed jaw plate and movable jaw and other components.




Capacity Raw MaterialOutput Size RequirementLocation
250t/hbasalt0-5mm, 5-10mm, 10-20mm, 20-30mmJeddah
60-80t/hAggregate stope stone  1/2" , 3/4" y 3/8Peru
30-40t/hgranite0-6mm, 6-14mm, 14-20mm(Kenya standard)  Kenya



According to the product model different,Materials will be broken into various sizes.
What size do you need of Materials finished product?

You can consult us,give you the best answer!

China HJ Series High Efficiency Jaw Crusher Good Quality

China HJ Series High Efficiency Jaw Crusher Good Quality

China HJ Series High Efficiency Jaw Crusher Good Quality

China HJ Series High Efficiency Jaw Crusher Good Quality


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is the high current of the motor when the crusher runs?
If the current is high after the switch on, then it should be a mechanical fault, check the bearings, motor bearings are generally not bad, and if the motor time is longer, should also be removed from the load, flexible inspection;
Q:Which crusher is better for granite crushing?
If broken, choose the jaw crusher, two broken words, see the finished product requirements
Q:What should I pay attention to in the test run of jaw crusher?
1, check the triangle belt (or flat belt) tightness and wear, such as tight too loose, or wear serious, should be timely adjustment or replacement belt.2, check the wear of both sides of the guard plate, such as serious wear, should be replaced.3. Adjust the opening size of the palatal plate according to the technical requirement.4, if there is no protective cover, or protective cover is not in good condition, it is not allowed to drive, so as to avoid personal accidents.5. Use the hand wheel to move the flywheel or pull the belt. Make sure the equipment is flexible, so you can test without load.
Q:What are the uses of cone crushers?
Cone crusher according to the use of different, can be divided into coarse crushing with cone crusher and medium crushing cone crusher, specific each crusher is used
Q:How many kilowatts is the crusher motor in the stone factory?
The power and speed of the motor, the power and speed should meet the requirements of the load6, other difficulties, such as whether the need for speed change, there is no special control requirements, the type of load
Q:Installation and clearance adjustment of grate for hammer crusher
The grate bars used in the hammer crusher are all of the same size at the time of installation. They are placed along the groove of the grate bar, and the two grate bars are separated by gaskets to ensure the clearance. Changing the spacer of different thickness can change the clearance between the grate bars.
Q:The advantages and disadvantages of Sandvik crusher
Domestic machines can't and Sandvik than Metso and he is a grade, Teleikesi is also very strong, Telsmith is not worse than them. Crusher brand many, can only say that each has its advantages and disadvantages.
Q:Is the jaw crusher broken? What are the main uses and what stone can be broken?
The jaw crusher produced by Jin Hua Machinery is used for crushing, crushing, compressive strength of 147 ~ 245MPa of various ores and rocks in coarse, medium and fine crushing. The maximum compressive strength of the crushed material is 320Mpa. The characteristics of the crusher are: the crushing ratio of the crusher is large, the product size is uniform, the structure is simple, the work is reliable, the maintenance is simple and the operation cost is low. Hubei broken machine working principle: when the motor through the belt wheel drives the eccentric shaft to rotate, the movable jaw cycle around and left for the jaw, which is extrusion, rubbing, grinding and other multiple crushing of material into small materials, gradually falling, until discharged from.
Q:What about shock and blockage in hammer crusher?
In view of the cause of the machine vibration of hammer crusher, the following methods can be used:Replace the hammer; replacement pin; remove the hammer, hammer to choose according to the weight, total weight of each hammer shaft hammer and hammer shaft relative to the total weight of the hammer is equal to the static balance to achieve the requirements; welding repair or replacement; fastening bolt.
Q:Who knows the working principle of the Stone breaker?
Rock stone crusher working principle is the material from the hopper into the crusher, the distributor of the material is divided into two parts: a part of the sub feeder into the high-speed rotation of the impeller, the rapid acceleration in the impeller, the acceleration of up to several times the acceleration of gravity, then 60-64m/s speed from the impeller three uniform flow in the projectile out, first by a portion of the material distributor around free fall impact crushing, and then together to shock vortex cavity material liner, liner material is rebound, oblique impact to the vortex chamber at the top, and change its movement direction, deviated from the downward movement of the impeller is emitted from the road the material forms a continuous material curtain.
