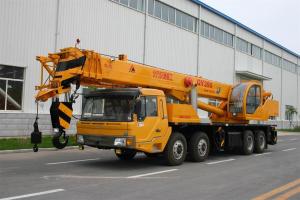

This crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 35t.

It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.

We have been in this line for many years, have very good design and production experience. For the upper structure, we use HQ600 high strength steel, for the key components, we use top brand components to assure product high quality.

Our product is durable and easy operation and maintenance, we can supply training for customer in our factory for free. pls find below detail parameters:

Items		Unit	Value
Working Performance Parameters	Max. Rated lifting weight	kg	35000
	Max. Lifting force of the basic boom	kn.m	1225
	Max. Height of the basic boom	m	11.2
	Max. Lifting force of the longest main boom	kn.m	638
	Max. Height of the main boom	m	33
	Max. Height of the jib	m	48
	Max. Speed of the single rope	m/min	110
Working Speed	Turning speed	r/min	0-2.4
	Lifting time of the lift boom	s	70
	Extension time of the lift boom	s	50
Traveling Parameters	Max. Traveling speed	km/h	70
	The whole weight	kg	35040
	Max. Grade ability	%	26
	Min. Turning radius	m	12
	Min. Ground clearance	m	0.23
	Approaching angle	°	17
	Departure angle	°	11
Dimension Parameters	External dimension（length×width×height）	mm	13312×2494×3500
	Vertical span of outrigger	m	5.4
	Horizontal span of outrigger	m	6.0
	Length of main boom	m	10.5~33
	Elevation of boom	°	-2~80
	Length of vice boom	m	8.5~14.5
Chassis	Model	—	TAZ5363J
	Engine model	—	WP10-290
	Rated power/speed	kw/（r/min）	213/2200
	Max. Torque/rotate speed	n.m/（r/min）	1160/1300-1600

Q: The world's largest car crane can be heavy?: Is the world 's largest car crane.China only three: a Beijing, Shanghai, a Linyi.

Q: What is the principle of car hanging arm?: The first section telescopic arms are driven by the cylinder 1, and the second and third sections are driven by the cylinder 2.

Q: Why the car crane rotation angle can not be more than 45 degrees: About the rotation angle is too large, will make the center of gravity out of the scope of support, resulting in truck crane rollover.

Q: What is the speed limit of a motor vehicle crane?: In all the valve, only the manual valve in the commutation at the same time, by controlling the size of the valve opening can also limit the speed and throttling speed.

Q: What is the difference between the main arm and the basic arm of a truck crane?: The main arm is for distinguishing between the main arm, the main arm including the basic arm (ie, the first arm), the second arm, the third arm, the fourth arm, the fifth arm (if there is a fifth arm

Q: What is the failure of the crane crane and the slow speed of the crane?: Hydraulic oil is missing or dirty agglomeration does not?

Q: What is the difference between a truck crane and a car crane?: The same thing is called different.In front of that is not the same as that obviously is called the car crane.

Q: What is the basic structure of a car crane?: Hydraulic truck crane hydraulic system using hydraulic pump, quantitative or variable motor to achieve the crane lifting rotation, amplitude, boom telescopic and leg telescopic and can be combined or combined action.
