Multi-functional 3G/WCDMA Vehicle GPS Tracker TS-100W with door lock/unlock remotely for car/fleet

Ref Price:
Loading Port:
Hong Kong
Payment Terms:
Min Order Qty:
1 set
Supply Capability:
10000 set/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

TS-100W is WCDMA/GPS tracking terminal for fleets’ vehicles with powerful application functions. It’s featured with high quality and reliable performance approved by 20000vehicles installed. The friendly access by USB port or SMS for configuration and debug are another favorite feature by system integrators.





  • Worldwide UMTS/HSDPA and GSM/GPRS/EDGE coverage

  • Two Way Audio Intercom

  • SMS/GPRS Data transmit

  • G sensor built-in for Crash detection/Harsh Brake

  • 4MB Internal flash memory with over 15000Way points storage capability

  • Speed Limit Management

  • One-press Call Center

  • GEO fencing

  • Vehicle Duty/Empty status detection

  • Door Lock/Unlock remotely

  • Engine Immobilizer

  • Fuel Level monitoring

  • Temperature Monitoring

  • iButton reader for driver identification

  • WinCE-Based LCD display for dispatch application

  • Image Camera for photo snap


Data Report:


  • Ignition On/Off

  • Given time interval base

  • Given Distance interval base

  • Given moving angle base

  • Ignition ON/Off, Door open/close, SOS trigger Camera shooting and picture update,RFID/iButton key ID update,alarm events

  • Vehicle Duty/Empty update

  • Report included: Time stamp/Cooridinates/Heading/ignition status/mileage/Door status/alarm staus/Driver ID/Fuel data


Alarm Events:


  • Speed Over Alarm

  • Power Disconnection Alarm

  • Drive in not-permit time period

  • Temperature Trigger Alarm

  • GEO Area In/Out

  • Vehicle Battery Low Alarm

  • Panic Help

  • Towing Alarm

  • Fuel Theft Alarm

  • Original car alarm event


Remote Control Commands:


  • Poll real time position

  • Setup IP/Port, Device ID, Data report time interval

  • Setup allow driving time period

  • Stop engine / release startup

  • Voice Listen-in authorization for once

  • Remote reboot and factory setting recovery

  • Remote Door Lock/Unlock

  • Remote setup Temperature High/Low alarm limit

  • Remote Picture shooting

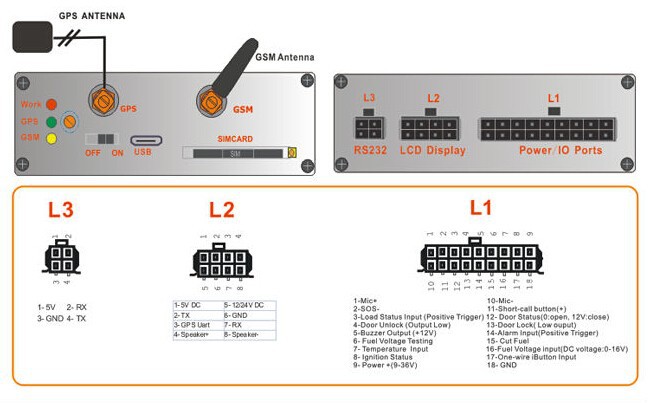

  I/O Interface Introduction:


MT-100W Interface


How it worksService PlatformApple SMS APP

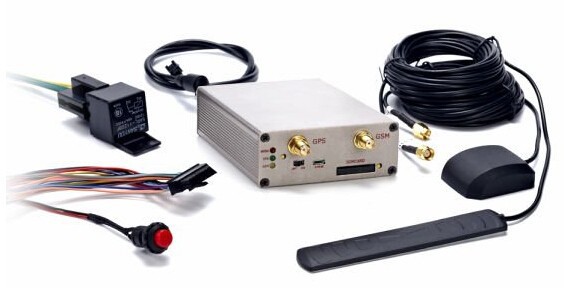

Package Contents:


MT-100 Package Contents

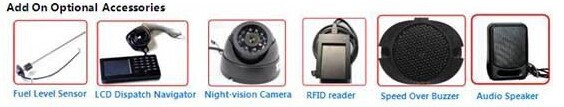

MT-100 Add on optional accessories

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:How to install and use car GPS locator
Car GPS positioning tracker from simple to difficult to be divided into three main categories: OBD interface, with strong magnetic, wiring (and there are different functions, functions, wiring is a little bit complicated);1).OBD interface installation is very simple, just like an GT500 grain car, just plug in the steering wheel below the OBD port can be
Q:What is the meaning of the GPS locator to set the center numberA
Which product to buy?  The GPS locator sent center number set successfully means your mobile phone number has been bound to the locator, binding, any information and operation locator will tell you.The phone rings hang up without positioning messages sent to the telephone, but can hear each other's voice, this is because you are so get the positioning, you call in the past, only to hear each other's voice, but there is no location information back to you, if you want to locate each other, must send the position instructions, details of your best check the manual, with sharp peak wise locator as an example, the positioning command is dw#, in order to facilitate the operation, the best special APP download locator businesses, install app can realize all functions of mobile phone operation.
Q:GPS positioning system on the phone how to use ah?
Download a GPS map, which will be useful for GPS positioning function
Q:Chengdu GPS locator installed there
Chongqing World Network Technology Co. Ltd specializes in automobile broker GPS locator, let the owner through the mobile phone anti-theft device and bundled any stolen vehicle operation may be the first time the location and the information is sent to the mobile phone owner. Chongqing heaven and earth network company is still the industry first developed a personal positioning GPS locatorGPS locator product features:1, SMS control: the owner can send text messages via mobile phone to query the specific location and driving state of the vehicle2, vibration alarm: under the state of security, the vehicle was abnormal vibration, will trigger the alarm. Send alarm information to the owner.
Q:What is the difference between a GPS positioning device, an external antenna, and a built-in antenna?
External antenna signal is relatively better. Built in antenna.GPS and GSM is not a thing at all, GPS is used for positioning, GSM is used for communication, there is a kind of AGPS can use mobile signal base station to locate.Where the signal is not good, an external antenna can be used for accurate positioning.
Q:GPS tracker and GPS detector is not ossessione
Good question, this is a bit of a friend.GPS positioning tracker is to prevent the theft of vehicles and other reasons, can not find the car born. And now the use of a very wide range, motivation is no longer so simple. Is the so-called, everything has an opposite, you want to track me, and I do not want to let you know, so I developed the detector, find your security GPS, demolition, you do not know.One foot in mind, I have the impression that science and technology is a more standard equipment interference detection signal GPS. With the progress of science and technology, which is the enemy of their own technology in the end which strong, unknown.AskNice to say
Q:I would like to install a car on my Fawkes gt06n GPS locator,
You want more, GPS is not listening, but you can locate.
Q:GPS car locator easy to use, useful to share the experience of what I recommend to buy what kind of real
The main vehicle positioning tracking history put some functions of leasing, rental, logistics companies have installed recommend cost-effective high visibility products: Armored soldiers K12 car locator
Q:My phone does not have a GPS positioning system
To buy a cell phone, this is a hardware problem
Q:GPS locator which is good
In fact, there is no correct answer to this question, in fact, that each have their own good, to say who this is really difficult to judge, the standard definition of everyone is not the same, I think perhaps you don't think so, I say this is not wise Albert PG02 everyone says, but right I hope you understand this just mentioned
