Product Description:

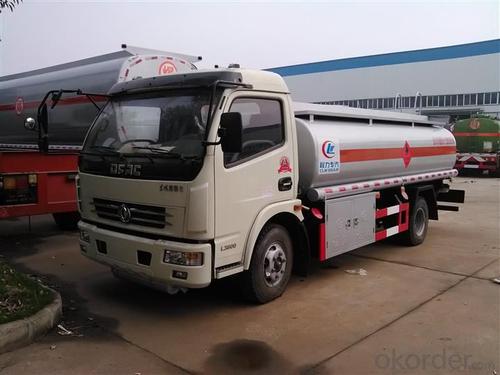

 Fuel Tank Truck 25000L  Tanker Truck

Product Details

Basic Info.

Model NO.:CIMC1317N3867C


Transmission Type:Manual



Load Capacity:21-30t

Emission Standard:Euro 3


Tank Volume:15001-30000L

Drive Wheel:8×4





Engine Capacity:>8L



Tire Type:Inner Tube

Tire Certification:ISO


Tire Design:Radial



Driving Type:LHD (Rhd Is Option)

Engine Model:Wd615.96,Euro II





Wheel Base (Mm):1800+4600+1350

Front/Rear Axle Load:Hf9t/Hc16t


Overall Dimension of Truck:11984*2496*3950(Mm)



Axles No.:4

Cabin:HOWO76 One Bed,Air-Condition


Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.



Packing:Nude Packing

Standard:ISO/TS16949, DOT, CCC, ISO, SGS



HS Code:8705909990


Production Capacity:1000PCS/Month

Product Description

Overall Dimension: 11984×2496×3950(mm)
Model: ZZ1317N4661W
Driving type:8*4
Kerb Weight: 25000kg
Gross Vehicle Weight: 12800kg
Engine:WD615.96,EURO II
Maximum Output: 375HP
Rated engine power: 277(KW/r/min)
Transmission: HW19710
Steering: ZF8098
Tyres: 12.00R20(Radial)
Front Axle: HF9
Rear Axle: HC16     Ratio:4.8
Maximum Speed: 85 km/h
Drum volume:30M3
Pump Model: 80QSB-60/90
Cab: HOWO76 ONE BED,Air-condition

Vehicle modelCA5403GHY Oil tank truckBatch No.197
ManufacturerFAWBrand nameFAW
Overall dimension(mm)11980×2480×3800Total weight (Kg)55000
Body internal dimension(mm)××Curb weight(Kg)18000
Approach/departure angle-/12Max speed(km/h)
Front/rear hang(mm)-/2130Vehicle identification codeLFA
Chassis model
Engine modelEngine manufacturerEmissionPower

 FAW/ WEICHAI Euro2 280hp,336hp
Fuel typeDieselTyre  number12
Axle number4Tyre  specification11.00-20,11.00R20,
Wheelbase1800+5730+1310Front wheel distance-
Axle load9000-/26000 ( parallel )Rear wheel distance1840/1840/1840
Leaf spring number-/8/8/8
