14m Articulated boom aerial working platform

Ref Price:
Loading Port:
Tianjin
Payment Terms:
TT OR LC
Min Order Qty:
-
Supply Capability:
100台 /month
Inquire Now Customer Service

Contact us by

(1) WeChat
(2) Whatsapp: +8617190086776

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

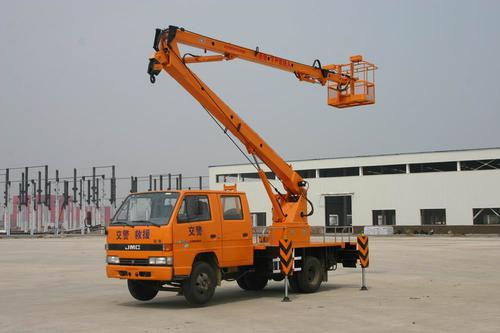

The max. working height of this aerial working platform is 14m.

It can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.

We start this business from 1998, have many years of design and production experience.For the upper structure, we use HQ600 high strength steel, for some key components(like balance valves, hydraulic locks and so on), we imported from Europe to assure product high quality.

Our product is durable and easy operation and maintenance, we can supply training for customer in our factory for free. pls find below detail parameters:

Bulletin No.

KFM5052JGK

Type

GKZ-14J

External dimensionsmm

6320×2000×2920

Structure type

Three-section articulated boom

Working Cage

Internal sizemm

1100×600×1100

Rated loadingkg

200

Max. Working heightmm

14000

Max. Height from groundmm

12300

Max. Working radiusmm

7050

Working radius when doing the highest heightmm

2990

Working Boom

Max. Raising angle of lower boomº

70

Max. Raising angle of upper boomº

70

Max. Raising angle of jibº

90

Boom rack rotation angleº

360

Outrigger

Vertical spanmm

2950

Horizontal spanmm

2750

Travelling of vertical outriggermm

450

Adjustment

Single adjustable

Lifting

Rated lifting weightkg

995

Rated lifting heightmm

7700

Chassis Introduction

Traveling

Performance

Parameters

Chassis model

JX1060TSG23

Persons

2+3

Axle base (mm)

3360

Wheel base (front/rear)mm

1385/1425

Driving mode

4×2

Front suspensionmm

1015

Rear suspensionmm

1815

Approaching angleº

27

Departure angleº

11

Max. Grade ability%

28

Min. Turning diametermm

13600

Min. Ground clearancemm

190

Engine

Engine model

JX493ZLQ3

Rated powerkw/r/min

85/3600

TorqueNm/r/min

285/2000

 Max. Speedkm/h

70

Gas consumption per one hundred miles(diesel oil) L

12

Specification of the tire

7.00R16LT

The whole weightkg

4880

Max. Weight with whole loadingkg

5205

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is a wheeled crane
According to the crane design manual to divide the words: tire cranes, truck cranes, crawler cranes are tied, belong to the fixed rotary crane!
Q:What is the design process for a truck crane?
According to the function, performance, operating environment and other factors, and customers to develop a detailed user requirements manual, and then determine the development goals.
Q:What is the benefit of the four metal brackets in the rear of the car when lifting the crane
Hydraulic truck crane in the lifting of the four brackets open, obviously increased the weight of the station when the area, a solid crane center of gravity, but also play a supporting role, so that when the lifting time will be more stable.
Q:Why does the crane have two cabs?
Inside the necessary equipment to be mechanical joystick, electrical control electrical cabinet, and pneumatic or hydraulic devices.
Q:What is the brake lock of a truck crane?
Car crane crane valve and the valve body between the use of more than the gap seal, in its own gravity and lifting load under the dual role of gravity, the brake when the high-pressure oil often through the valve spool and valve body between the
Q:What are the design of the truck crane?
Upgraded design: upgrades of existing car cranes based on experience and technology development to improve performance, reduce manufacturing costs or reduce operating costs.
Q:What is the principle of car hanging arm?
The cylinder 1 is of the piston type and is made of double-sleeved casing as the fuel supply passage for the cylinder 2. However, the manufacturing process is complicated and the conventional piston double acting cylinder is used. However,
Q:What are the truck cranes getting off the system and the car system?
The following is the part that gets off (the part that can not be rotated).
Q:What is the hook crane technique?
Stop hook, slow,Shake hook, to coincide with the turntable speed.
Q:What is the relationship between the winch and the reel and the reel shaft?
First, the reel is mounted on the upper drum holder, and then the spline shaft is inserted into the internal spline of the friction plate of the reducer (the picture is seen), and then the hoisting motor (the balance valve is installed) and
