Lowest Price Thermal Insulation Rock Wool Board
1.Structure of Lowest Price Thermal Insulation Rock Wool Board：
Rock wool insulation refers to a type of insulation that is made from actual rocks and minerals. It also goes by the names of stone wool insulation, mineral wool insulation, or slag wool insulation. A wide range of products can be made from rock wool, due to its excellent ability to block sound and heat. This type of insulation is commonly used in building construction, industrial plants, and in automotive applications.
The Manufacturing Process
Melting / Forming into fibers /Continuous-filament process/Staple-fiber process/ Chopped fiber/ Rock wool / Protective coatings /Forming into shapes
2.Main Features of Lowest Price Thermal Insulation Rock Wool Board：
● FEATURES
Thermal Insulation
Fire Safety
Acoustic Control
No Corrosion
Environmental friendly
Moisture Resistance
Energy Conservation & Emissions Reduction
Different raw material: Our rock wool is mainly made by Basalt and other natural ores. The raw material for other so-called rock wool is mineral slag. Different raw material, different features.
Different corrosion resistance. Our rock wool have good corrosion resistance. non-corrosive for metal. But the mineral slag wool is different. In high humidity environment, CaS in mineral slag will have chemical reactions and produce corrosive when contact with metal.
Different working life. The working life for mineral slag is very short and Durability is very low because of higher CaO and MgO in slag. The efflorescence for mineral Slag is easy and also effect the working life. The
Different heat resisting. The heat resisting for rock wool(Basalt) is higher than mineral Slag wool. Our operating temperature can reach 800℃.But for Slag wool ,can not higher than 675℃.The features for our rock wool is totally superior to Slag wool.

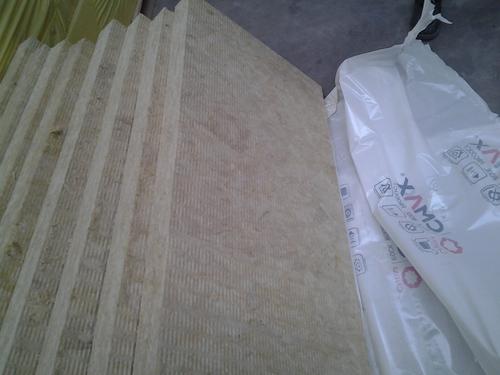

3. Lowest Price Thermal Insulation Rock Wool Board Images
4. Lowest Price Thermal Insulation Rock Wool Board Specification
ROCK WOOL BLANKET & BOARD
Standard Size
Product Blanket Board
Density (kg/m3) 60-100 40-200
Size: L x W (mm) 1200X3000-6000 600X1200
Thickness (mm) 30-150 30-100
Remark:
Other sizes are available upon request.
Facing materials can be applied upon request.
Standard Size
Product Blanket Board
Density (kg/m3) 60-100 40-200
Size: L x W (mm) 1200X3000-6000 600X1200
Thickness (mm) 30-150 30-100
Remark:
Other sizes are available upon request.
Facing materials can be applied upon request.
Rock wool PIPE
Standard Size
DIA Thickness (mm)
inch mm 25 30 40 50 60 70 80 90 100 120 150
1/2’’ 22 ● ● ●
3/4’’ 27 ● ● ● ● ● ● ●
1’’ 34 ● ● ● ● ● ● ●
1-1/4’’ 43 ● ● ● ● ● ● ● ● ●
1-1/2’’ 48 ● ● ● ● ● ● ● ● ●
2’’ 60 ● ● ● ● ● ● ● ● ●
2-1/2’’ 76 ● ● ● ● ● ● ● ● ●
3’’ 89 ● ● ● ● ● ● ● ● ●
3-1/2’’ 108 ● ● ● ● ● ● ● ● ●
4’’ 114 ● ● ● ● ● ● ● ● ● ●
5’’ 140 ● ● ● ● ● ● ● ● ● ●
6’’ 169 ● ● ● ● ● ● ● ● ● ●
8’’ 219 ● ● ● ● ● ● ● ● ●
10’’ 273 ● ● ● ● ● ● ● ● ●
12’’ 325 ● ● ● ● ● ● ● ● ●
14’’ 356 ● ● ● ● ● ● ● ●
15’’ 381 ● ● ● ● ● ● ● ●
16’’ 406 ● ● ● ● ● ● ● ●
18’’ 456 ● ● ● ● ● ● ● ●
19’’ 483 ● ● ● ● ● ●
20’’ 508 ● ● ● ● ● ●
22’’ 558 ● ● ● ● ●
24’’ 610 ● ● ● ● ●
5.FAQ
We have organized several common questions for our clients，may help you sincerely：
① What’s the mainly material for rock wool？
Rock wool is called a mineral wool because it is made primarily from basalt, an igneous rock,
②What’s the mainly type for rock wool？
rock wool insulating products are available in loose-fill form and as batting. Batts, or blankets, are thick slabs of insulation that may have a kraft paper facing.
③How you control the quality?
During the production of fiberglass insulation, material is sampled at a number of locations in the process to maintain quality.
- Q: Should a two story home have insulation under the roof in the big closets ?
- yea. it might cost you some to put it in but it will save you a lot in the future with heating and air conditioning bills
- Q: Sorry, I asked this in the maintenance and repair section, but no luck.Which is better to have in a 2-story home? My last 2-story home was always hotter upstairs than down. (Physics...heat rises)
- the best is more attic isolation so that the heat don't come directly to second floor.
- Q: I am really confused about this science stuff! Sustainability is terrible xP
- All versions of insulation are largely air that is kept from moving - air is a good insulator if convection - movement of heated or cooled air due to changes of density - is prevented. This assumes that a vapor barrier and caulking prevent actual air movement through the wall when a wind is blowing. Some insulators are also poor conductors of heat so the connection between inside and outside that might occur is broken. As it happens, glass used in fiberglass and minerals used in rock wool are actually pretty good conductors of heat in solid form but as fine particles and flakes they don't conduct well from one strand/piece to the next.
- Q: Does snow on the roof help or hurt my heating bill?
- I mostly shows that your home is well insulated and not loosing heat through the ceiling to melt it. Think of an Igloo made of packed snow. It can be kept at a temperature just below freezing so that it will not melt and still keep those inside from the 30-60 below outside.
- Q: Foam and the new building technolodgy's are coming to New Orleans. The rebuilding is causing New Orleans to be the "Greenest City in America". Energy Efficiency and the proper buiilding techniques tak hold.
- First, "green" building is not technically defined as far as the construction industry is concerned. i.e. anyone can call their products "green" until the parameters are set up to strickly define what is "green" and what is not. To date, it's been more of a marketing strategy than anything. (Unless this has changed in recent months) I'm glad to hear New Orleans is taking the right path in rebuilding the place! Hope to get back down there soon.
- Q: We have recently moved into a house in Australia with a tin roof. There is a layer of 5cm batts on the rafters in the roof space, but the temp is 10-15 degrees C higher up there than in the house (with all the windows and doors open). I don't want to get air-conditioning, is there another way to insulate the roof and cool the house?
- like they said ventilation is the answer... you allready have a radiant barrier ( metal roof ), now get the heat out. a rigge vent would be best with plent of open soffit all the way around the perimeter. if you're in a dry climate, a humidifier will work as well as an a/c, but much cheaper! give measurments in feet & inches... what do you thing, some one from france is going to help you?
- Q: Hi, I have got a physics question and was just wondering about it.. Can someone pls tell me how does roof insulation work? how is it effective? How does the insulation changes the heat circulation and transfer inside a house?I know that the insulation prevents radiation from the sun and overheating.. but any more details about radiation, convection and conduction of heat pls?
- Well insulation makes a dead air space (air is stagnant). Since the air is not moving the transfer of hot and cold is slowed down considerably. But since you have to create cross ventilation to reduce rotting in wood and the build up of explosive gasses. Its a crap shoot that it even does any good. Radiation is heat so that's covered by the dead air space. Convection is usually not an issue with the cross venting. Also for conduction the insulation should slow it down considerably.
- Q: i like to put a layer of sand in roofing instead of insulation. it's fireproof and insulates better. plus it's free. how much weight can ceiling board handle? I find about 15 inches poured into the roof works fine so far. Saves me about $1600 each house built
- first sand is very heavy and will probably exceed the loading on the roof and walls the extra reinforcing you would need to make the house SAFE would far outway any savings
- Q: is it safe to put insulation in the corners where the roof meets the wall in attics?fiberglass in corners?
- No it is not EVER safe! Roofing material needs to breathe. Anywhere that insulation is applied to the underside of the roof deck the roofing material will warp and then leak. You have to have a cushion of air between the underside of the decking and the insulation
- Q: I am purchasing a mobile home with a shingled roof. The shingles need to be replaced (>15yrs old) and with the cost of heating going up each day I thought I would added some of that 2" thick rigid insulation. I would place this right on top of the existing roof and then place the firring strips for the metal roof right on top of the rigid insulation panels (which are 4x8'). By using 3" galvanized sheet rock screws I will get a good solid attachment. Then I will put the metal roofing on to the firring strips as normal. Does anyone see any downside to doing this? Has anyone tried this before?
- The only downside I see is your miscalculation about the length of the screws need. Lets see, 2 inches of insulation, 3/4 inches of furring, leaves you with a solid 1/4 inch of bite, and we all know that the first 1/4 inch of the screw is meant for piercing, not holding. So plan on 4 inch screws, because you still need to penetrate the old roof and bite the structure. Don't forget to plan your drip edge which now will have 2+ inches of roof thickness to carry the rain water over into your gutter.
