Product Description

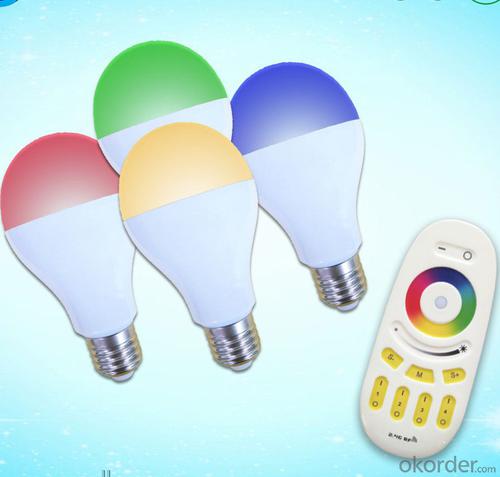

This product is a high-performance replacement type RGB+W LED bulb, Remote control for wireless control, With 64W colors and 9 kinds of dynamic change models for choice, at the same time has the function of illumination of white light. Using LED light source, its power consumption is 20% of the traditional incandescent lamp, the service life is energy-saving lamp more than 10 times. Easy installation and use simple at the same time, security and stability, achieve intelligent illumination lamps and lanterns, both energy saving and environmental protection.
The lamp body is made of aluminum plastic forming, the greatest degree to solve the problem of the high power LED heat dissipation. The lampshade adopts imported polymer nano materials, light transmittance as high as 85% above, homogeneous soft light output. Control ways, using the 2.4G high frequency wireless transmission technology, low power consumption, remote control distance is far, strong anti-jamming capability, high speed of air communication and so on. The appearance remote control is fashionable and beautiful. Function is practical and simple controls, using capacitive touch design, has the rich that move light, color mixing function. For household lighting, scene layout it adds a different exotic atmosphere.
Technical Parameters
Light bulbs parameters:
content | parameter | content | parameter |
Supply Voltage | AC86-265V 50/60HZ | Working temperature | -40℃-60℃ |
Power consumption | 9W | Power factor | >0.65 |
White light color temperature section | WW（2700-3500K）\ CW（6000-6500K） | luminous flux | 810LM |
Color rendering index | ＞80 | Light angle | 140° |
White LED specifications | 5730 （0.5W/each） | RGB LED specifications | 5050（1.5W/each） |
External dimension | Φ68*120mm | The service life | 50000H |
The material | Plastic cover the aluminum +The PC cover | Lamp holder specifications | E27 E26 B22 |
Application places | Household lighting, commercial lighting, KTV, bar, Can also be mounted on a chandelier, floor lamp, desk lamp, etc | ||
The remote control parameters：
content | parameter | content | parameter |
Supply Voltage | 3V，2*AAA battery | Transmission power | 6db |
Transmission frequency | 2400-2483.5MHz | Standby power consumption | 10uA |
Modulation method | GFSK | Remote control distance | 20-30m |
External dimension | 120×52×20mm |
External dimension
The function of remote control
“M” dynamic mode table:：
NO. | Mode | Brightness state | Speed state |
1 | 7 colors fade | adjustable | adjustable |
2 | White fade | adjustable | adjustable |
3 | Red green blue white 4 colors fade | adjustable | adjustable |
4 | Red green blue white 4 colors jump | adjustable | adjustable |
5 | 8 colors jump（7 color+white） | adjustable | adjustable |
6 | Red light fade and flash | adjustable | adjustable |
7 | Red light fade and flash | adjustable | adjustable |
8 | Red light fade and flash | adjustable | adjustable |
9 | Full automatic play mode | adjustable | adjustable |
Application scenarios
- Q:LED bulb with what type of LED beads?
- Of course, the more high-end heat better use EMC3030 lamp, EMC2835 lamp and so on, please consult your supplier
- Q:What are the driving IC used in LED bulb?
- The analysis report shows that nearly three years, the domestic market share of LED lamps will increase from 5% to about 20%-30% can be seen, LED is now the need to walk into the homes of ordinary people, so we need to control the cost, cost is the main driving power LED lamp and a shell, a power driven material faster BOM province can let the promotion of LED. As the LED lamp has the characteristics of energy saving and environmental protection, the state has also subsidized the product accordingly.
- Q:LED bulb lamp. Is there a good drive or no drive? Is the lamp of good or integrated?
- LED bulb lamp, are driven by a power of the ordinary small beads, driving is very simple only rectification, filtering, limiting the number of components is another large power SMD beads, this drive is more troublesome, SMT SMD components, and double plate, both have the element.
- Q:What brand of LED bulb is good in quality?
- Look at the bulb of the bulb. The so-called bubble shell refers to the transparent glass shell in front. In incandescent lamps, all are made of glass. But in LED bulbs, though they can be made of glass, they rarely do.. Because the LED bulb weight than incandescent lamp 5 times or more, if made of glass, fell on the ground, it broke the possibility of large. As a result, more LED bulbs are made of plastic to prevent them from breaking. And the LED bulb went out because the heat from the radiator, so the bulb Everbright is visible light, infrared heating has little, so the use of plastic to make foam shell will not damage due to heat.
- Q:How does the LED bulb go with the power?
- voltage range as long as the 36V can be achieved, for example: voltage range 24v-80v is very good,
- Q:60W how many lumens and how many W LED bulb does incandescent bulb replace?
- With a high quality LED light, 6W will be enough;High brightness compared to incandescent lamp, more energy saving.
- Q:Want to find common features, unified purchase accessories repair!
- The most common problem is that 1, the drive power is broken 2, the light source due to excessive or excessive flow leading to necrosis
- Q:LED bulb bulbs, do you need 3C certification now?
- Light source class is impossible to do, only lamps and lanterns class can do. For example, flat lamp, ceiling lamp and so on...However, CQC voluntary certification can be done.
- Q:Detailed description of LED bulb lamp
- High purity aluminum reflector, radiator, acrylic glass cover, high power LED light source, high efficiency imported constant current source. 2. The bulb has high luminous efficiency and good environmental protection performance. It does not contain harmful substances, has no pollution to the environment, does not have infrared rays and ultraviolet rays, and avoids harm to the human body, and belongs to the green lighting products. 3, PC light shield, optional transparent or matte, to prevent glare and effectively protect the LED lamp, unique optical design, light distribution. 4, good color, to show a true color of things, a variety of color options, to meet the different needs of the environment, eliminating the traditional lamp color temperature depression caused by excessively high or low, the Department of visual comfort, improve the working efficiency of workers. 5, the bulb of the spiral points E27 and E40, easy installation, alternative to the traditional 65W125W energy-saving lamps. 6, the bulb is made of high quality aluminum alloy for shell production, good corrosion resistance, long service life, energy-saving effect is obvious. 7, bulb 30W installation height of 3-4 meters, 50W installation height of 5-6 meters.
- Q:LED bulb after the power failure, still glimmer, can last hours or even all day, what is the reason?!
- Because LED's normal luminous current is 20MA, and LED has a weak current, it can emit light. According to this source. Maybe your line is just on the zero line. This will lead to a small leakage current flows through the LED lamp.Try offline.
