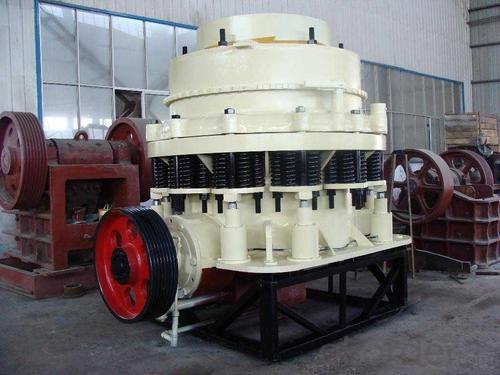

Cone Crusher High Quality

Ref Price:

Loading Port:: China Main Port

Payment Terms:: TT or LC

Min Order Qty:: 1 Set set

Supply Capability:: 100 Sets Per Month set/month

Inquire Now

Chat Online

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Specifications

1.High productively;

2.High quality;

3.Less machine stops time;

4.Easy maintenance.

Features:

1. High-performance

Combining optimal designing of chamber type with applying reasonable speed and stroke, to make this kind of machine does more work with the same dynamic cone diameter. Therefo, this machine is of high-performance and manufactring capacity compared with other cone crusher of the same type.

2. Good products size composition

The crusher applys for laminated crushing principle to make cubic shapes of final products stand for larger proportion. Acicular and flake shape products decrease and size fraction much more well-proportioned.

3. Good stability

If there is metal or other nonbroken material come to the chamber, metal going through protection device will release it and then reset automaticly. The protection device has fixed discharge opening returning point and the original discharge opening can returing back immediately after the metal goes through the crushing chamber.

4. Convenient Cleaning-up

If the crusher stops under loading condition, hydralic cleaning system can clean up the crushing chamber quickly so that decrease the downtime.

5. High reliability.

Adopting main shaft with big diameter,heavy main frame and separate automatic Control System of thin oil lubrication system, so that it guarantees robustness and reliable operation of the crusher.

Main Technical Data

Short Head

Model	Dia. mm (inch)	Cavity	Feed Opeing	Outlet Setting (mm)	Shaft Speed (r/min)	Power (kw)	Capacity (t/hour)	Weight (t)	Dimension (mm)
Closing Side (mm)	Open Side (mm)
CSD75	914 (3')	Fine	13	41	3-13	580	75	27-90	15	2821×1880×2410
Coarse	33	60	3-16	27-100
CSD110	1218 (4')	Fine	29	57	5-16	485	110	50-132	20	2560×1942×2928
Medium	44	73	10-16	90-145
Coarse	56	89	13-19	141-181
CSD160	1295 (4 1/4')	Fine	29	64	3-16	485	160	36-163	27	2800×2342×2668
Medium	54	89	6-16	82-163
Coarse	70	105	10-25	109-227
CSD220	1676 (5 1/2')	Fine	35	70	5-13	485	220	90-209	55	3917×2870×3771
Medium	54	89	6-19	136-281
Coarse	98	133	10-25	190-336
CSD315	2134 (7')	Fine	51	105	5-16	435	315	190-408	110	4130×3251×4454
Medium	95	133	10-19	354-508
Coarse	127	178	13-25	454-599

Model

Dia. mm (inch)

Cavity

Feed Opeing

Outlet Setting (mm)

Shaft Speed (r/min)

Power (kw)

Capacity (t/hour)

Weight (t)

Dimension (mm)

Closing Side (mm)

Open Side (mm)

CSD75

914 (3')

Fine

3-13

580

27-90

2821×1880×2410

Coarse

3-16

27-100

CSD110

1218 (4')

Fine

5-16

485

110

50-132

2560×1942×2928

Medium

10-16

90-145

Coarse

13-19

141-181

CSD160

1295 (4 1/4')

Fine

3-16

485

160

36-163

2800×2342×2668

Medium

6-16

82-163

Coarse

105

10-25

109-227

CSD220

1676 (5 1/2')

Fine

5-13

485

220

90-209

3917×2870×3771

Medium

6-19

136-281

Coarse

133

10-25

190-336

CSD315

2134 (7')

Fine

105

5-16

435

315

190-408

110

4130×3251×4454

Medium

133

10-19

354-508

Coarse

127

178

13-25

454-599

Packaging & Delivery

Packaging Details:according to the contract

Delivery Detail:30days
