Packaging & Delivery
Packaging Detail: | Neutral color box |
Delivery Detail: | 7-10 days after getting payment money |

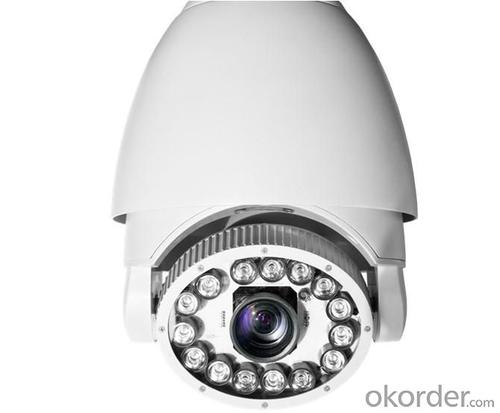

Specification OF Dome Camera,PTZ
* PWM function, Adopt multi-angle super power Infrared LED, the brightness of image uniform and soft.
* Adopt LED ARRAY Infrared light source, IR distances can reach 150 M.
* English/Chinese OSD menu;
* Dome ID, baud rate, communication protocol can be set via the controller;
* Supported Protocols : Pelco-D/P; Others on special request;
* 7",Total metal body construction, waterproof IP 66;
* Optional , 4 Alarm inputs and 2 alarm outputs.
*Optional IP module (built in provision);
* Auto tracking function optional
| ||||
Signal System | PAL /NTSC | |||
Focus Model | Auto / Semiautomatic / Manual | |||
Communication | RS-485 | |||
RS-485 Protocols | PELCO_D , PELCO_P | |||
Baud Rate | 1200 bps /2400 bps/4800 bps/9600 bps | |||
Supporting All-in-one Module | Sony, Hitachi, SAMSUNG, CNB,LG, China brand etc. | |||
Cruise Tours | 8 groups | |||
Cruise Points Qty Per | Max.16 points, dwell time user selectable | |||
Pan Speed | 1°~180°/s(1~64 Step free set ) | |||
Preset Speed | 180°/S | |||
Preset Points | 128 Points | |||
Pan Range | 360º | |||
Tilt Range | 1°~100°/s(1~64 Step free set ) | |||
Auto Flip | Horizontal 180°,Vertical 90° | |||
A-B Scan Speed | 5~180°/s (15-64 grade available) | |||
IR Control | Auto / Manual | |||
Menu Language | English/Chinese | |||
Peak Emission Wavelength | 850 | |||
Leds | ¢20=12pcs,¢8=42pcs | |||
Monitor Output | 1.0V[p-p] / 75Ω, PAL、NTSC, BNC | |||
Address | 0-255 | |||
Security | Password protection: configured by the administrator | |||
Privacy Zones (Masking) | Support 2 zones | |||
Heater In Operation | Auto | |||
Alarm Input | 4 inputs | |||
Alarm Output | 2 outputs | |||
Power-off Memory | Support | |||
Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan | |||
Protection Level | IP66+ | |||
Working Temperature | indoor:(0ºC~+40ºC) outdoor:(-40℃~+60℃) | |||
Power Supply | DC13V 5A(range:DC12V-14V) | |||
Power Consumption | ≤20W | |||
Material | Aluminum alloy | |||
Package | 30.5*32*40CM | |||
Net Weight | 6.5KG | |||
Humidity | ≤95%(no condensation) | |||
Mount Option | Wall Mount; Corner Mount; Indoor pendant mount; Ceiling Mount |
- Q:Monitor inside the infrared network camera infrared light automatically switch and synchronous switch What does this mean?
- Synchronous switch has not heard, another set according to set the time to switch. For example, set 18 points to night into black and white
- Q:What is the difference between a camera's double point and a single lamp point?
- Array infrared camera in the field of monitoring the application of the biggest advantage is to solve the problem of LED light source cooling, with high luminous efficiency and luminous intensity, photoelectric conversion efficiency than ordinary infrared LED camera increased by about 25%, the efficiency can reach 45% Greatly reduce the energy consumption, increase the lighting distance, while extending the life of the camera, array infrared night vision camera life is generally 9 times the life of ordinary infrared camera.
- Q:Monitor the top ten cameras
- Foreign brands: SONY, Panasonic, Samsung, Sanyo, Pyle high, Honeywell, and so on domestic brands: Yaan, Ming King, SOWZE, Hai Kang Wei as. The The Too much
- Q:Monitor the camera in the monitor screen appears in the camera 001 what meaning
- One is the camera's own image on the name, you must enter the camera's menu, delete the name.
- Q:How does the surveillance camera solve the backlight problem?
- Second, always use the corresponding function of the camera, improve the backlit appearance. There are two kinds of cameras inside the security camera can be better to deal with the problem of camera backlight, one is a backlight compensation function of the camera, one is wide dynamic camera. Backlight compensation, also known as backlight compensation, is the screen dividends of several different areas, each area from the exposure. In some applications, the field of view can contain a very bright area, and the subject is included in the bright field surrounded by a picture of a bleak, no level. At this point because the AGC detects the signal level is not low, so the amplifier gain is very low, can not improve the brightness of the main screen, when the introduction of backlight compensation, the camera only the entire field of view of a sub-region, Area of the uniform signal level to determine the AGC circuit operating point.
- Q:There are cameras at the fork in the expressway
- The second is the security card mouth camcorder, the public driving through this camera often found that regardless of speed will flash lights take pictures, in fact, encountered this situation and do not panic. Its main role is to import and export vehicles and personnel to monitor the investigation of suspicious vehicle screening clues to help Interpol and other staff to trace the staff involved. This camera appearance and speed camera no significant difference.
- Q:Monitor the camera's 4-way, 8-channel What does it mean! The
- Fourth, and eighth, sorted by number
- Q:Monitor the camera 1/3 and 1/4 of the difference there is nothing different CCD what is it
- CCD, English full name: Charge-coupled Device, the Chinese full name: charge-coupled components. Can be called CCD image sensor, also known as image controller. A CCD is a semiconductor device that converts an optical image into a digital signal. The tiny photoreceptor implanted on the CCD is called the pixel (Pixel). The higher the number of pixels on a CCD, the higher the picture resolution it provides. The CCD acts like a film, but it converts an optical signal into a charge signal. CCD has a number of neatly arranged photodiode, can sense the light, and the optical signal into electrical signals, the external sampling amplifier and analog conversion circuit into digital image signal.
- Q:What do I need to do with video surveillance systems?
- The monitoring system is composed of a large part of the camera, transmission, control, display, record registration. The camera transmits the video image to the control panel through the coaxial video cable, controls the host computer and assigns the video signal to each monitor and video equipment, and can simultaneously input the voice signal to be transmitted into the video recorder. By controlling the host, the operator can issue commands to control the up, down, left and right movements of the pan / tilt and zoom in on the lens, and can be controlled by the host in multi-camera and PTZ Between the switch. The use of special video processing mode, the image can be input, playback, processing and other operations, so that the video effect to achieve the best.
- Q:What kind of material is needed to install the surveillance camera?
- 3, each camera installed 12V transformer one. About 15-25 yuan / month
