Tank Truck 6X4 Fuel Transport for Full Trailer

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 PCS
Supply Capability:
1500 PCS/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Tank Truck 6X4 Fuel Transport  for Full Trailer

Product Details

Basic Info.

Model NO.:CQ1254HTG434



Transmission Type:Manual

Power:Diesel



Load Capacity:41-50t

Emission Standard:Euro 3



Tank Volume:<5000L

Drive Wheel:6×4



Seats:≤5

Horsepower:351-450hp



Engine Capacity:>8L

Storage:Oil



Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT



Tire Design:Radial

Condition:New



Truck Type:Tanker Truck

Chassis:Cq1254htg434



Gross Vehicle Weight(Kg):25, 000

Overall Dimension(Mm):9, 640X2, 500X3, 201



Oil Tank(L):400L

Rated Weight(Kg):13730



Kerb Weight(Kg):11140

Color:Optional



Export Markets:Global

Additional Info.

Trademark:GENLYON



Packing:Nude Packing

Standard:SGS



Origin:China

HS Code:8716311000



Production Capacity:50000 Units/Year

Product Description



(A) Specifications:

Truck Type: TANKER TRUCK
Driving Type: 6X4
Vehicle Brand: SAIC-Iveco HONGYAN
Rated Loading Capacity: 41-50T

Chassis: CQ1254HTG434
Engine model: C9 380, 380 HP Euro 3
Max. Output: 380 HP
Drive Axle: Double Reduction, Hongyan punching welding drive axle

Tires: 12.00R20 (with one spare tire)
Wheelbase: 4325+1350mm
Cab: Genlyon cab, Flat-roof strengthened, Left-Hand drive

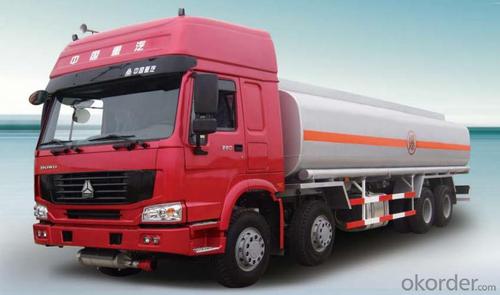

                                                                                        PIC IS ONLY FOR REFERENCE
NO.SPECIFICATIONPARAMETERNOTE
1Chassis                CQ1254HTG434

2ApplicationTanker truck

3Drive                  6*4


4Rated Weight13,730


5Kerb Weight(kg)             11,140


6Gross Vehicle Weight(kg)    25,000


7Type                   Genlyon cab,Flat-roof strengthed, Left-Hand drive
8EquipmentAir-conditioner, One Sleeper,Large carbin
9Overall Dimension(mm)     9,640x2,500x3,201

10Wheelbase(mm)             4325+1350

11Model                  C9 380


12Engine Output  (kw(HP))      (280)380HP

13Displacement(L)8.709


14Emission STDEURO3


15Drive Axle    Double Reduction, Hongyan punching welding drive axle
16Frame865/280 8+5

17Tyre                       12.00R20


18Oil Tank(L)400L


19Tank Volume (m3) 21


25m3 full trailer tanker specs
1Tank Volume (m3) 25


3Axle13 Ton x3, FUWA axle
4Tire12.00R20


5Leaf spring10 pieces


6tool box 1.2M*1



Tank Truck 6X4 Fuel Transport  for Full Trailer

Tank Truck 6X4 Fuel Transport  for Full Trailer


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What do you mean by the 6 * 4 on the truck?
The back numbers represent the number of drive wheels6 x 4, that is, the latter eight rounds, or the ten wheel, is the number of tires, not the number of wheels.Off-road vehicles 4 x 4, that is, four wheel positions are driven wheel position.
Q:How do trucks change their oil?
In the hot state (high temperature, low oil viscosity, good fluidity, the cleaner), then turn off, put oil screw removed protection plate under the engine oil pan removed, let go of the old engine oil.
Q:Where is the engine number of the truck?
If you can not lift the general direction of the front wheel hit the low head look carefully to see the cylinder can be found, there are some special vehicles, like a car, some have to drum up the rear seat back cover open to see the engine number, chassis number in the front tire side crossbeam, some in the passenger seat the tires on the girder, and one is on the tail of the carriage crossbeam, like the measured beam in Jianghuai, Isuzu is placed in the front tire, the frame beam number is no..
Q:Why do trucks use diesel?.
The commercial diesel oil is graded according to the freezing point, such as 10, -20 and so on, which indicates low service temperature. Diesel oil is widely used in large vehicles, ships, generators and so on. It is mainly used as liquid fuel for diesel engines. As the speed of diesel engine is higher than that of gasoline engine, the demand for diesel is increasing faster than that of gasoline. The environmental characteristics of diesel with low energy consumption, low pollution, so some small cars even high performance cars to switch to diesel, but because of the inferior quality of the normal operation of foreign Chinese diesel, diesel cars imported into the country may be frequent failures and even accidents.
Q:Where do I need to hit butter from the truck?
The main direction is the ball head, vertical pin, steel plate cover, transmission shaft, cross shaft
Q:Truck modification problems and penalties
Above the gate type truck and a dump truck, the vehicle registration certificate issued by the traffic administrative department of public security and driving license records of dimensions and the size of the container inside, gate 3 axis and 3 axis above the height of the dump truck shall not exceed 1500 mm. Overdue demolition and road vehicles, public security traffic management departments will be punished in accordance with the relevant provisions of the temporary suspension of the vehicle, and ordered the owner of the vehicle or the driver to return to its original state. It is reported that the illegal modification of vehicles in the high gate, car registration, transfer of registration, change of registration, vehicle periodic inspection, the relevant departments are not inspection.
Q:Which of the two trucks is better?
No problem, all domestic mainstream models. The liberation of J6 fuel, low noise, fast, power is poor; Delong is powerful, rugged, noise, fuel consumption is slightly larger.
Q:How to adjust the truck brake?
In fact, it's simple, because the large trucks are not overloaded. Brake pump generally do not know, the front wheel, rear wheel boats for adjusting nut, heavy vehicles on the road only myself.
Q:Truck freight calculation
The total unit freight, a car is probably:35*1000*0.15+500=5750In other words, use the most common bulk truck to transport your vegetables, each car is 5750 of the price
Q:B2 driver's license, can you drive the big truck in the eight round?
B2 permits driving large trucks. Nowadays many large lorries are divided into heavy and large ones, but they are all large truck types. Large trucks are heavy and medium-sized vehicles. Heavy truck drivers is greater than or equal to 6m, the total mass is greater than or equal to 12000kg. Medium truck drivers is greater than or equal to 6m, the total mass is greater than or equal to 4500kg and less than 12000kg.Well, in the freight car class, the B2 card is not allowed to drive except for the car (usually referred to as the towed car, the quasi driving code named A2), and the other yellow cards can be driven without a trailer. B2 cards can also drive C1 (compact cars), C2 (small automatic cars) and C3 (low speed truck) down.
