ISO11439 ECER110 Type 2 composite CNG cylinders NGV cylinder GNV cylinder
Sinoma Science and Technology (Suzhou) Co., Ltd.- Ref Price:
-
- Loading Port:
- Shanghai
- Payment Terms:
- TT OR LC
- Min Order Qty:
- 50 pc
- Supply Capability:
- 5000 pc/month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
Item specifice

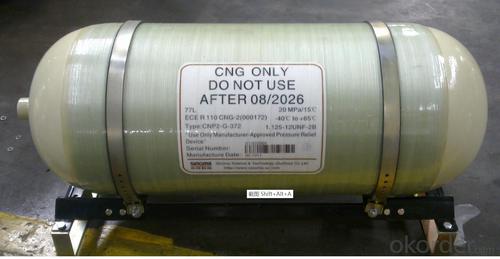

ISO11439 ECER110 Type 2 composite CNG cylinders NGV cylinder GNV cylinder
Product Specifications:
Outside Diameter: 326-425mm
Capacity: 55~225L
Brand name: SINOMA
Filling Gas: CNG
Work pressure (PW): 200bar
Test pressure (PH): 250bar
Material: Steel and composite fibers
ISO 11439, ECER110
Product details:
| Standard | No. | Model | OD (mm) | Water capacity (L) | Length (mm) | Weight (kg) | WP (MPa) |
| ISO11439 | 1 | CNP2-G-425-212-20A | 425 | 212 | 1935±10 | 152±5 | 20 |
| 2 | CNP2-G-426-200-25A | 426 | 200 | 1890±10 | 172±5 | 25 | |
| 3 | CNP2-G-425-200-20A | 425 | 200 | 1890±10 | 155±5 | 20 | |
| 4 | CNP2-G-425-150-20B | 425 | 150 | 1410±10 | 108±5 | 20 | |
| 5 | CNP2-G-425-120-20B | 425 | 120 | 1180±10 | 91±5 | 20 | |
| 6 | CNP2-G-425-110-20B | 425 | 110 | 1095±10 | 85±5 | 20 | |
| 7 | CNP2-G-425-100-20B | 425 | 100 | 990±10 | 79±5 | 20 | |
| 8 | CNP2-G-425-90-20B | 425 | 90 | 930±10 | 73±5 | 20 | |
| 9 | CNP2-G-425-80-20B | 425 | 80 | 850±10 | 67±5 | 20 | |
| 10 | CNP2-G-372-150-20A | 372 | 150 | 1815±10 | 107±5 | 20 | |
| 11 | CNP2-G-372-140-20A | 372 | 140 | 1710±10 | 102±5 | 20 | |
| 12 | CNP2-G-372-113-20B | 372 | 113 | 1380±10 | 88±5 | 20 | |
| 13 | CNP2-G-372-100-20B | 372 | 100 | 1235±10 | 72.5 | 20 | |
| 14 | CNP2-G-372-80-20B | 372 | 80 | 1020±10 | 71±5 | 20 | |
| 15 | CNP2-G-372-77-20B | 372 | 77 | 990±10 | 68±5 | 20 | |
| 16 | CNP2-G-372-70-20B | 372 | 70 | 900±10 | 57±5 | 20 | |
| 17 | CNP2-G-372-65-20B | 372 | 65 | 870±10 | 57±5 | 20 | |
| 18 | CNP2-G-372-60-20B | 372 | 60 | 820±10 | 54±5 | 20 | |
| 19 | CNP2-G-338-135-20A | 338 | 135 | 1900±10 | 97±5 | 20 | |
| 20 | CNP2-G-338-120-20A | 338 | 120 | 1730±10 | 87±5 | 20 | |
| 21 | CNP2-G-338-120-20B | 338 | 120 | 1695±10 | 88.5 | 20 | |
| 22 | CNP2-G-338-100-20B | 338 | 100 | 1445±10 | 73±5 | 20 | |
| 23 | CNP2-G-338-90-20B | 338 | 90 | 1310±10 | 67±5 | 20 | |
| 24 | CNP2-G-338-75-20B | 338 | 75 | 1120±10 | 60±5 | 20 | |
| 25 | CNP2-G-338-70-20B | 338 | 70 | 1020±10 | 57±5 | 20 | |
| 26 | CNP2-G-338-65-20B | 338 | 65 | 990±10 | 52±5 | 20 | |
| 27 | CNP2-G-338-60-20B | 338 | 60 | 930±10 | 49±5 | 20 | |
| 28 | CNP2-G-338-55-20B | 338 | 55 | 870±10 | 46±5 | 20 | |
| ECE R 110 | 1 | CNP2-C-678-600-20A | 678 | 600 | 2205±15 | 404±5 | 20 |
| 2 | CNP2-G-425-212-20A | 425 | 212 | 1935±10 | 152±5 | 20 | |
| 3 | CNP2-G-425-100-20B | 425 | 100 | 990±10 | 79±5 | 20 | |
| 4 | CNP2-G-425-90-20B | 425 | 90 | 930±10 | 73.5±5 | 20 | |
| 5 | CNP2-G-425-80-20B | 425 | 80 | 850±10 | 67±5 | 20 | |
| 6 | CNP2-G-372-150-20A | 372 | 150 | 1815±10 | 108±5 | 20 | |
| 7 | CNP2-G-372-140-20A | 372 | 140 | 1710±10 | 102±5 | 20 | |
| 8 | CNP2-G-338-120-20A | 338 | 120 | 1730±10 | 87±5 | 20 | |
| 9 | CNP2-G-338-120-20B | 338 | 120 | 1695±10 | 88.5 | 20 | |
| 10 | CNP2-G-338-90-20B | 338 | 90 | 1310±10 | 66.5 | 20 | |
| 11 | CNP2-G-326-90-20B (DDI) | 326 | 90 | 1360±10 | 61±5 | 20 | |
| 12 | CNP2-G-326-112-20B (DDI) | 326 | 112 | 1660±10 | 75±5 | 20 |
Company Details:
It is a wholly-owned subsidiary of Sinoma Science & Technology Co., Ltd. (Stock code: 002080-CN) (hereinafter referred to as "Sinoma Science & Technology"), whose main business are NGV cylinders, hydrogen fuel cell cylinders, composite materials products and gas storage and transportation unit. The company has three production bases in Chengdu, Sichuan province, Jiujiang, Jiangxi province and Suzhou, Jiangsu province with an annual capacity of more than 700,000 pcs. Among them, Chengdu base is the largest production base of CNG pressure vessels in China, and has established long-term stable partnership with many international and domestic famous automobile OEMs, and provide NGV cylinders and system application services. Suzhou base is only CNG product manufacturing base for Volkswagen in Asia-Pacific region.
Packing&Shipment:
Package Type: Pallets
Why Choose US:
Top Quality Control
Fast Delivery
Safely Package And Loading Conatiner
Custom Gas Cylinder
Full Complete Certificates And Full Reports
FAQ:
Q1: If you are factory or trade company?
We are manufacturer with more than 20 years.
Q2: What is your delivery time?
We promise 30-35 days once deposit paid and workshop drawings confirmed
Q3: What is your payment terms?
We accept TT and L/C at sight.
Q4: What is your packing for all cylinders ?
We can pack all cylinders by pallet , also no pallet is available for different type cylinder.
Q5: Can you provide OEM design?
Yes, we can, we are factory under ourself R&D team.
and we can make customerbrand name on cylinder shoulder, color, printing, etc...
Q6: What is your MOQ?
Our MOQ is 50 pcs.
Q7: Do you have any protection for the head of the cylinder?
Yes, in our factory, each gas cylinder is protected by standard cap which can make sure the safety of gas cylinder during the transportation.
Q8: What is your advantage with other competitors?
We are factory with excellent equipment and high quality control system, and our factory price is more competitive, fast shipment with high quality, 7x24 hours service on line for fast reply your requestments.
