Led Lighting Strip 5050 120 Leds / M 50-100M / Roll

Ref Price:
$0.68 - 0.93 / m
Loading Port:
Shenzhen
Payment Terms:
L/C,T/T
Min Order Qty:
10 Meters m
Supply Capability:
100000 Meters Per Month m/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

General Introduction

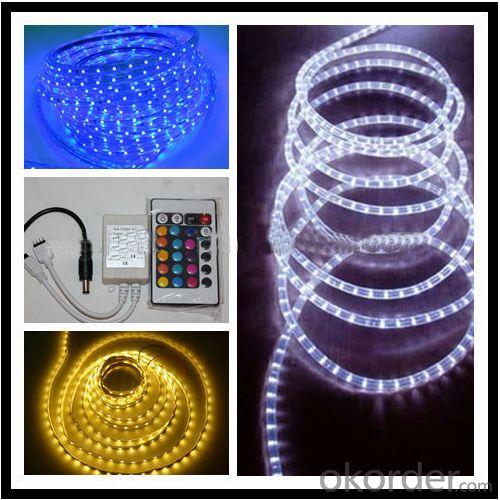

led lighting strip  5050 120 leds / m 50-100m / roll



Specification

Model No.

Color

Product Type

Quantity

Power

TT-3528R-30

red

3528-SMD,non-waterproof

30LEDs/m

2.4W/m

TT-3528Y-30

yellow

3528-SMD,non-waterproof

30LEDs/m

2.4W/m

TT-3528B-30

blue

3528-SMD,non-waterproof

30LEDs/m

2.4W/m

TT-3528G-30

green

3528-SMD,non-waterproof

30LEDs/m

2.4W/m

TT-3528W-30

white

3528-SMD,non-waterproof

30LEDs/m

2.4W/m

TT-3528WY-30

warm white

3528-SMD,non-waterproof

30LEDs/m

2.4W/m



TT-3528R-60

red

3528-SMD,waterproof

60LEDs/m

4.8W/m

TT-3528Y-60

yellow

3528-SMD,waterproof

60LEDs/m

4.8W/m

TT-3528B-60

blue

3528-SMD,waterproof

60LEDs/m

4.8W/m

TT-3528G-60

green

3528-SMD,waterproof

60LEDs/m

4.8W/m

TT-3528W-60

white

3528-SMD,waterproof

60LEDs/m

4.8W/m

TT-3528WY-60

warm white

3528-SMD,waterproof

60LEDs/m

4.8W/m



TT-5050R-30

red

5050-SMD,non-waterproof

30LEDs/m

7.2W/m

TT-5050Y-30

yellow

5050-SMD,non-waterproof

30LEDs/m

7.2W/m

TT-5050B-30

blue

5050-SMD,non-waterproof

30LEDs/m

7.2W/m

TT-5050G-30

green

5050-SMD,non-waterproof

30LEDs/m

7.2W/m

TT-5050W-30

white

5050-SMD,non-waterproof

30LEDs/m

7.2W/m

TT-5050Y-30

warm white

5050-SMD,non-waterproof

30LEDs/m

7.2W/m



TT-5050R-60

red

5050-SMD,waterproof

60LEDs/m

14.4W/m

TT-5050Y-60

yellow

5050-SMD,waterproof

60LEDs/m

14.4W/m

TT-5050B-60

blue

5050-SMD,waterproof

60LEDs/m

14.4W/m

TT-5050G-60

green

5050-SMD,waterproof

60LEDs/m

14.4W/m

TT-5050W-60

white

5050-SMD,waterproof

60LEDs/m

14.4W/m

TT-5050WY-60

warm white

5050-SMD,waterproof

60LEDs/m

14.4W/m

 Feature

1) Various colors including red, yellow, blue, green, white and other colors

2) Have waterproof style for customer choose

3) Can be bent, can be easy fixed on the concave surface

4) Every 3 or 6 LED cutable without damaging the rest strip

5 ) Low voltage power supply, excellent security and stability

6) Solid-state, high shock / vibration resistant

7) Maintenance free, easy installation

8) Standard length: 5 meters / roll, different length available

9) Long life span, Can be use 50000~80000 hours.



Application

1 ) Walkway lighting

2 ) Architectural decorative lighting

3 ) Stairway lighting & decorating

 4) DIY lights for home use

5) Path and contour marking

6 ) Decorative lights for holiday,event,show,exhibition.



Customized options

Customized label/ Logo can be made onto packing box.



Packaging & Delivery



Package:

1 x Box



Delivery:

Shipping Service

Estimated Delivery Time

DHL

2-8 business days

FedEx

3-8 business days

TNT

2-10 business days

UPS

1-7 business days

EMS

6-14 business days

ePacket

7-12 business days

China Post Air Mail

7-15 business days

China Post SAL

14-30 business days

By sea

30-40 business days

1. 3-10 business days for Sample Orders; 7-40 business days for Bulk Orders.

2. "Business days" means Monday-Friday, excluding holidays.

3. DHL and UPS cannot ship to military or P.O. boxes address.

4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What are the LED patch bands, single panels and double panels? What's the difference between them?
Refers to the circuit board attached to the lamp. The single panel has a copper wire on one side, and the double panel is on either side of the 2. Materials are generally better on both sides. Some of the panels are cheap flame retardant panels with superior electrical performance. Heat dissipation. High cost.
Q:LED chandelier (ceiling lamp), the band controller does not synchronize, what should I do?
Note that the three controllers are connected and then connected to the power supply, otherwise it may not be synchronized.
Q:LED lamp with 180 beads, how many watts per meter?
Of course, this is used as decorative light belt, and if the band is used for lighting, such as a lamp plate, ceiling lamp class, its current will be used 60MA, that is, become 36W
Q:How many volts does the LED light belt need to start?
Conventional: high voltage lamp with 220V, low voltage 12VYou can also customize the voltage. 110V, 24V, and so on.
Q:LED light is still a weak light after the switch is closed. What's the matter?
LED has normal light after power failure. The solution is...1, with a grounding wire, you can understand?2, test pencil, measure will be changed to FireWire, FireWire disconnection switch circuit3, in the case of unprofessional, use method 1
Q:5050 per meter, 60 beads, led band power consumption is about how much watts?
The electrical parameters of 5050 beads:1, current: 43-46mA (this is the most ideal driving current); maximum use current can not exceed 60mA;2, voltage 2.8-3.6V (transient voltage not more than 5V beads, or damage or serious damage to the LED lamp to repair);3, the ambient temperature -20 degrees Celsius to +40 degrees Celsius (requirements of thermal design of lamps and lanterns do better, LED lamp pin temperature can not exceed 60 degrees);4. If the current is at 14-20mA, the brightness of each 1mA is reduced by 4%;
Q:The brightness of 220V lights with LED power up before optical switch can adjust the lamp with the LED?
The brightness of the LED light band cannot be adjusted.The high voltage light belt is made through IC or resistance capacitance step-down, and the security is very poor. Easy to cause fire and safety accidents, or use low voltage safety.
Q:Where is the difference between the LED lamp belt and the ordinary lamp?
Thermal characteristics LED soft band with little heating, LED use cold lighting technology, heating capacity is much lower than ordinary lighting.LED soft lamp with DC drive, ultra low power (single tube 0.03-0.06 Watt) electro-optical power conversion is close to 100%, the same lighting effect than traditional light source energy saving more than 80%. Because it has no filament, so no filament burn thermaldeposition disadvantages such as light fades.
Q:What is the material of LED lamp belt?
Sort:LED lights are divided into two types of flexible LED lamp band and LED hard light strip, but they also contain the old band with wire connecting LED, such as flat three wire, flat four wire band and so on.Difference:1, flexible LED light strip is done using FPC assembly line board, with patch LED assembly, the thickness of only one coin thickness, Mitutoyo LED lamp with space; general specifications 30cm 18 LED, 24 LED and 15 LED 50cm long, 24 LED, 30 a LED. There are 60cm, 80cm and so on, different users have different specifications. The utility model can be cut at will, and can be extended at any time, and the luminous effect is not affected. The FPC material is flexible and can be bent, folded and wound freely. It can be moved and stretched freely in three-dimensional space without breaking. The utility model is suitable for irregular places and space narrow places, and can also be arbitrarily bent and winding, and is suitable for arbitrarily combining various patterns in advertisement decoration.2, LED light bar is PCB hard to do assembly circuit board, LED SMD LED assembly useful, but also useful in line LED assembly, as required by different components and different. The advantage of hard light bar is easier to fix, and the processing and installation are more convenient. The disadvantage is that it can not bend freely and is not suitable for irregular place. Light bar with patch LED with 18 LED, 24 LED, 30 LED, 36 LED, 40 LED and so on many kinds of specifications; used in line LED 18 star, 24 star, 36 star, 48 stars of different specifications, also have a positive side, and side light called the Great Wall lights.
Q:What is the difference between T4 tube and LED lamp? What are their advantages and disadvantages?
T4 tube is fluorescent three primary color lamp tube. It has a diameter of 12MM.
