Product Description:

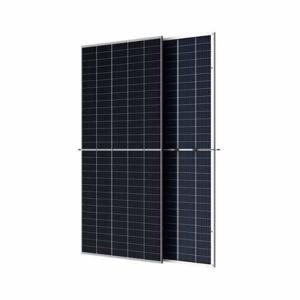

Monochrystalline & Polycrystalline Silicon Solar Panels

Description

We provide various types of Monochrystalline Solar Panels & Polycrystalline Silicon Solar Panels, as well as various solar panel components. Include 90W, 100W, 120W, 195W, 205W, 260W, 270W, 310W, 530w, 535w, 540w, 545w and so on. We can customize the solar panel according to the size and parameters you provide.  Take Polycrystalline Silicon Solar Panels 155W 36V Series as an example to list the product parameters. If you need more product parameters, please contact the customer service.


ELectrical Data

   (W)Power
    155
   (V)Vmp
    37.71
   (A)Imp
    4.12
   (V)Voc
    44.90
   (A)Isc
    4.43
   (%)CE
    18.13
   (%)ME
    >15.6
   (%)Tolearnce
    ±3%
   NOCT
    47°C +/-2°C


Temperature Coefficients

   Isc(%)℃
    +0.04
   Voc(%)℃
    -0.38
   Pm(%)℃
    -0.47
   Im(%)℃
    +0.04
   Vm(%)℃
    -0.38


Components & Mechanical Data

   Solar Cell
   156*78    Poly
   Number of Cell(pcs)
    6*12
   Size of Module(mm)
   1010*990
   Front Glass Thikness(mm)
    3.2
   Surface Maximum Load Capacity
    2400-5400Pa
   Allowable Hail Load
    23m/s ,7.53g
   Weight Per Piece(KG)
    15.26
   Junction Box Type
    Pass the TUV or CE Certificate
   Bypass Diode Rating(A)
    12 or None
   Cable & Connector Type
    Pass the TUV or CE  Certificate
   Frame(Material Corners,etc.)
    30# / 35#
   Backing (Brand Type)
    TPT , PET or KPF
   Temperature Range
    -40°C  to +85°C
   Standard Test Conditions
    AM1.5 1000W/㎡ 25°C


Application Scenario





Application

We can assist in designing and manufacturing according to the special requirements of customers. Solar panel products are mainly used for various electronic products developed by businesses, such as solar lighting, traffic lamps, toys, chargers, electrical appliances, handicrafts, household power supplies, road traffic lights, solar garden lights, lawn lights, and buried lights.


Advantage

The solar panel provided by us has the advantages of long service life, many recyclable times, wide use temperature, good low-temperature efficiency, high airtight rate, good conversion, sufficient power, long warranty period, and obvious clean, environmental and energy-saving effects.


Quality certification and certificate

Monochrystalline & Polycrystalline Silicon Solar Panels




FAQ

1. How about your company?

CNBM Solar photovoltaic (PV) Panel has various wattage from 1.5W to 315W to meet the demand of every customer. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar panel offers high performance of power warranty and good after sale service, we have professional people to reply your problem anytime.
CNBM International Corporation's products including Monocrystalline Solar Panel, Polycrystalline Solar Panel have received and enjoyed famous reputation in many countries and regions in the world .As a solar panel supplier in China, we strive to provide our customers with excellent service, superior products and unmatched value.

2. How to guarantee the quality of the products?

CNBM Solar performance guarantees for 25 years
• 12 years guarantee for workmanship
• Timeliness of delivery
• Quality Products certified (TÜV, UL, CE, ISO)

3. How long can we receive the product after purchase?

In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers.Commonly 7 to 10 working days can be served.













Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Are solar panels worth it?
No, but if you have the money, go for it. In Germany, people get a government rebate (much like the Prius rebate our own government offered) and so you see solar panels everywhere. If the Obama administration pushes for a rebate for solar panels, you will see them here in the state. It's the initial cost that puts off most potential solar panel customers. Upkeep isn't too expensive, and they ultimatley pay for themselves. (after about a decade)
Q:How much energy does it take to make, install, and eventually dispose of a solar panel?
The attached link is to an article from the 200 Home Power magazine. In that article the energy payback was found to be between 2 and 4 years. Newer panels are more efficient primarily because the silicon wafers used today are thinner. The silicon cell embodies most of the energy required to make a solar panel. Today most solar panels will produce the amount of energy required to manufacture them in between about 9 months and 2 years depending upon the specific technology used to make it. Solar panels are expected to produce energy for between 30 and 50 years. Therefore it takes around 5% of their total energy production to produce them. Note that these figures depend upon where the panels are installed. Panels in very sunny areas may generate more than 3 times the energy of panels in a cloudier area. Edit - The energy payback meta-study that carbonates references below mention one particular study Alsema (2000), which the authors used as a baseline to come up with their 4 year payback figure. These studies DO NOT assume ideal conditions. The Alsema study assumes an annual an irradiation of 700 kWh/m2/yr. That is the United States average irradiation and does take into account cloudy weather and the like. Under idea conditions the amount of energy collected can be almost twice as much. Albuquerque New Mexico is an example. The figures I mentioned above are recent values reported by several different panel manufacturers with whom I discussed the issue at the 2006 IEEE 4th World Conference on Photovoltaic Energy Conversion held this May. The very long payback times that carbonate highlights are almost certainly wrong. The study he references concludes that paybacks range between 2 and 8 years with 4 years being the most likely. In my opinion payback times are actually a fair bit shorter based on conversations with the manufacturers.
Q:Increasing Solar Panel Efficiency?
I am a senior in highschool and one of my classmates is basically a genius by all means that I can tell. He has already been accepted yo UNC Chapel Hill. His admissions statement was on exactly this subject. I proof read it for him. Anyways the basic problem with solar energy is that we can only harness about 20- 35 pecent of the energy and even less of that is converted into energy that can acutally be used. His argument is that if somehow we could harness chloraphyll which is the chemical which plants use to harness the suns energy and incorporate it somehow into our solar panels. We could harness up to 95% of the suns energy!!! Id deffinately look into this.
Q:Why won't my solar panels drive a motor?
Mark G has a good answer. If you leave your voltmeter on the solar cells when you hook up the motor, you will see the voltage drop to near zero. Same thing would happen if you tried to use 2 9 volt batteries to start your car. They just cant maintain the voltage when high curent demands are made.
Q:solar panels and wind power help?
A lot depends on location. If you haven't seen other solar panels or wind turbines in your general region, that could be a clue that the area is not really that good for them. The best thing to do is look in the phone book under solar or wind and see if there are local installers. In the event that your area is suitable for both, I think you should choose one or the other, to avoid complexity and extra cost in the system. We have solar electric. It really requires long-term thinking to get such a system, because the up-front costs are large. It will be 5, 0, maybe even 5 years' worth of electric bills that you pay up-front, in a suitable location. After the solar is installed, your electric bills will be lower or near zero, but it's only after that 5-5 years has passed that you actually start saving financially. A professional installer can run the analysis and you can see if the numbers make sense to you.
Q:Opinions on Solar Panels?
Bing solar power in Germany. Solar power has an option of assisting in removing some of the burden during daylight, from power generation plants. Anything is a help. Plus they will continue to do it forever (at least a lifetime). But they are not the total answer. Like wind, limited to certain areas. Wave generation is another solution, but still limited to coastal areas. The current design of most supply grids does not allow transportation of power long distances. You want a real eye opener, Bing transportation line looses power grid and see how much energy is wasted, and the amount of carbon put into the air for these losses.
Q:How does Solar Panels works and what is the cost of getting a solar panel installed.?
solar panels are a waste, I work for the biggest energy producer on the east coast and we are required by some really dumb laws to have many types of energy sources, fo course the only ones we make money on are coal and nuclear, solar panels we lose a ton of money on because they never make up for the cost it takes to buy them, and technology cannot bring them down because their too expensive even with a gov't subsidy bc of the products to make them. Don't waste your time with them, if you want to save money get a wood furnace
Q:how many solar panels needed for Heater and AC?
There are many, upon many variations of equipment needed for a complete solar home. I would call several contractors in your area that deals with it and get estimates. You have to look at what your wattage diet is at your home. How many watts are you using for your AC and heat. Which can vary by age, efficiency, insulation of home, etc. Look at your electric bill for a normal summer month and a normal winter month, then estimate your heating and cooling (Sometimes can be as much as 70% of the bill). You will see on your bill your toal kilowatt hours. ( Kilowat = 000 Watts) Solar systems can start as low as $2.00/watt, but can rapidly approach $20.00/watt depending on the difficulty of application etc.... Here is the great thing, in many areas of the country there may be rebates from the county or state. And what you don't use can be fed back into the grid, and you get paid for it. But as always - Call a quailified contractor and get the right system for your home.
Q:Advantages and Disadvantages of using solar panels?
Initial cost , space occupied AND DAILY CYCLE (unless through a battery) are the only disadvantages. REST ARE ALL ADVANTAGES
Q:Solar Panel/Energy help?
The rating of a solar panel is a maximum continuous rating. A 200 Watt panel will give a maximum of 200 watts under ideal conditions. A computer and monitor use about 400 Watts. not per hour - watts is Volts * Amps and a measure of Power. In hour a computer and monitor uses 400 Watt hours (Wh). Wh is a measure of Energy. To power a lab of 0 computers you will need 0* 400 = 4000 Watts. To run this from solar panels through the day only you would need a 4000 Watt panel. Except - its cloudy, the sun is in the wrong place - many factors reduce the output. To be reasonably safe you would need about a 2000 Watt panel. Then you would need batteries to store power through dull periods AND a voltage converter to change from low voltage DC from the solar panels to the mains voltage for your computers.
