Product Description:

Polycrystalline Solar Modules

CNBM offers a range of small, medium and large polycrystalline solar modules, designed for a range of requirements.

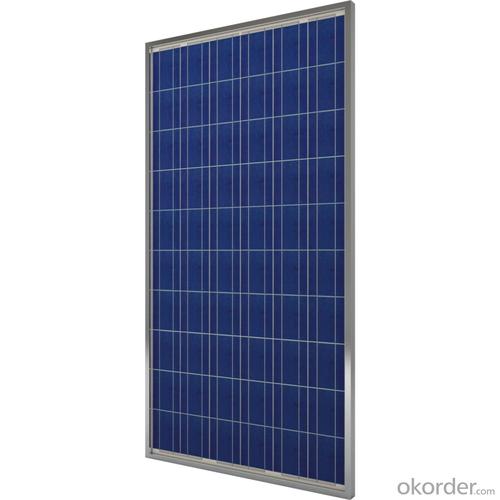

1W  Poly Solar Panel Small Poly Solar Panel CNBM

1W  Poly Solar Panel Small Poly Solar Panel CNBM



Specifications:

Tolerance

+/-3%

Cell

Polycrystalline silicon solar cells (156 x 156mm)

N0. of Cells

60 (10 x 6)

Dimension of Modules (mm)

1650 x 990 x 40

Weight (kg)

25.5

Limits:

Operating Temperature

-40~+85?

Storage Temperature

-40~+85?

Maximum System Voltage

1000 VDC max.

Hail Impact

Diameter of 28mm with impact speed
of 86km/h

Temperature and Coefficients:

NOCT

48C+/-2?

Voltage temperature coefficient (%/K)

-0.35

Current temperature coefficient (%/K)

0.05

Power temperature coefficient (%/K)

-0.45

Characteristics:

Model:

SGM-200P

SGM-210P

SGM-220P

Max-power voltage Vmp (V)

29.2

29.4

29.41

Max-power current Imp (A)

6.85

7.14

7.48

Open-circuit voltage Voc (V)

36.5

36.69

36.9

Short-Circuit Current Isc (A)

7.28

7.6

7.93

Max-power Pm(W)

200

210

220



Model:

SGM-230P

Max-power voltage Vmp (V)

29.8

Max-power current Imp (A)

7.72

Open-circuit voltage Voc (V)

37.31

Short-Circuit Current Isc (A)

8.19

Max-power Pm(W)

230

STC: Irradiance 1000W/m2, module temperature 25?, AM-=1.5

Poly Crystalline Solar Panels Specifications Range

Maximum Power (Pm)

Dimension

Weight

Operating Voltage (Vmp)

Operating Current (Imp)

Open Circuit Voltage (Voc)

Short Circuit Current (Isc)

0.45W

140x80x10mm

0.08kg

3.3V

150mA

4.6V

160mA

1.0W

162x140x10mm

0.16kg

7.5V

150mA

10.3V

160mA

4.5W

269x251x23mm

0.8kg

16.5V

0.27A

20.5V

0.3A

10W

420.1×268.9×22.6mm

1.92kg

17.5V

0.58A

20.5V

0.6A

20W

425x502x50mm

3.0kg

16.8V

1.19A

21.0V

1.29A

30W

593x502x22.6mm

3.9kg

16.8V

1.78A

21.0V

1.94A

40W

655x537x50mm

5.75kg

17.3V

2.31A

22.1V

2.54A

50W

839x537x50mm

6.0kg

17.5V

2.9A

21.8V

3.17A

65W

1111x502x50mm

7.2kg

17.6V

3.69A

22.1V

3.99A

80W

1204x537x50mm

7.7kg

17.6V

4.55A

22.1V

4.8A



Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Solar Panel Voltage Question?
Hmmm (8v -7v)/ 0 ohms .... shakes head....
Q:DIY single solar panels with outlets?
Sounds like an electrocution in the works. Try learning about grid tied and grid free solar system first.
Q:how does a solar panel works?
The fourth answer (kinetic energy) is totally wrong except for follow the instructions If you don't have the basic qualifications, you shouldn't even try besides falling off your roof and electrocuting someone else with bad connections. Solar panels produce low voltage DC power (up to 48 volts depending on design) which can be used directly but rarely is. DC power is stored in batteries for night, overcast days, and times of higher usage. The battery power must be fed through an inverter to produce 20 (or 240) volt AC power that your appliances use. The inverter to house connection must be made in a way that when the main power is turned off (like for repairs) your solar sourced power is not on the wires to hurt someone.
Q:Solar Panel - DC motor - Rated Power ? Functionality ?
solar cells are not rated in mah, they are rated in ma or amps. I'll assume this one is 50mA. Two in parallel will give you 300mA, so that will charge a 800mA-hr battery in 800/300 = 3 hours. Theoretically, in bright sunlight if the array is exactly at right angles to the sun's rays. The problem is, depending on the type of cells, the battery pack will need 8 volts or so to charge, and your solar cells won't deliver that. If the sun is at an angle, you may get only 3-5 volts. so you have to put them in series, so you will get only 50mA out of them, which will charge the battery in 6 hours of bright sunlight. Would two of my solar panels run this DC motor ? If the motor is .8 amps, you need the battery, the arrays are not near enough. Or are you attempting to replace the battery pack with the solar array? Your english makes that difficult to understand. If so, put them in parallel to get the 300mA, but that would run the .8 amp motor very slowly. If you had 2 of the solar panels, it might run at close to full speed if the sun is bright and shining directly on all the panels. But where did you get the .8 amps for the motor? The 800Mah rating of the battery has ZERO to do with the motor current. So the answer above is based on your number, which I suspect is totally wrong. .
Q:Solar Panel House?
Where can we get the solar panels? I think you will have to buy it on OKorder Solar Panels can be used to heat water and heaters. When you get the solar panels, they should be in the direction that the sun rises in your country. They should be allowed to come into direct contact with sunlight for most of the day in order for the solar panels to be used to its max.
Q:How to maintain a battery with a solar panel?
What I would suggest is that you find a panel that is rated for 00 mA, at any voltage higher than 8 volts. A 2 or even 8-volt panel will do, because the voltage will drop to match the battery. Then I would get a diode to put in series with the panel to prevent the battery from discharging through the panel at night. That's called a blocking diode. At such low currents, a charge controller is not worth it. There is not enough power to overheat the battery, which is principally what a charge controller protects against in a larger system. Be aware that you could also simply plug a trickle charger for the battery into the wall outlet, at a cost of less than a penny a day in electricity.
Q:How to hook up a Solar Panel To a single outlet?
That solar panel puts out about amp (in round numbers). If you are talking about a 20vac outlet, you'll have to send the output of the solar panel through an inverter. That brings it up to 20vac. 20 watts at 20 volts means you'll only be able to draw 0.6667 amps. With an inverter at 85% efficiency, you'll only get about 0.4 amps. That would barely light a CFL. 20 watts of power at 7 volts = amp (in round numbers) 20 watts of power at 20vac = 0.6667 amp (in round numbers) Power (watts) = current x voltage. If you increase voltate, you must decrease current to get the same watts. Watts is the common denominator in power measurement.
Q:Solar panel battery charging?
I agree, you should get a charge controller and install appropriate fuses.
Q:are there solar panel that work without the sun?
Unfortunately, okorder.com
Q:how can i build my own, cheap, solar panels at home?
electric powered panels are actually not plausible for many persons. they are 2 great skinny layers of polarized cloth. while the solar hits them electrons pass from the st to the 2d layer with an quantity of stress. you are able to no longer reproduction that at abode. What you need to do is setup photograph voltaic heating panels and run them against a Stirling engine. this methodology is many times extra effective than time-honored electric powered panels besides in industry. they have warmth on one element and chilly on the different to generate stress. Hook that to any generator to offer electrical energy. in case you're useful construction a house gadget, weblog approximately it, others will desire to nicely known precisely the way you probably did it.
