Woven Fabric Geotextile Nonwoven Fabric Roll

Ref Price:
Loading Port:
Qingdao
Payment Terms:
TT OR LC
Min Order Qty:
10000 m²
Supply Capability:
30000000 m²/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Specifications of our Geotextile:


- Specification:100SNG-1500SNG

- Property:Good flexibility, permeability, filtration , separation and easy for construction.

- Usage:Used in the areaof highway, railway, dam, reclamation for filtration, separation drainage and protection.

- Size of Package: Width 2-6m,length50-100m(or as per customer's requirement).

- Certificate: ISO9001:2008 and ISO14001:2004,CE.


Gextextile Product Description:



--Our geotextile can be made of polypropylene (PP) or polyester (PET) .

-- The weight is available from 100g/m2 to 1500g/m2 and the width from 1m to 8m,

-- Two kinds of processing technical to select: needle punched and thermally bonded, long fiber or  short fiber.

-- All kinds of colors are available.

-- It is widely known as earthwork material and industry fabric, used in the areas of railway, highway, water conservancy, dam, tunnel, subway, environment protection and so on.
-- We can supply different specifications as customers’ request.



Geotextile Product Specification / Models:


Material: polypropylene (PP) thermally bounded
Weight: 100g/m2-1200g/m2
Width: 1-8m
Length: As customers’ demand (usually is 100m)
Package: PE film and woven cloth
Delivery time: With in 3weeks after received the advance payment
Payment terms: T/T 30% in advance+T/T 70% against the copies of original documents or L/C
PS. Also we can produce the product as customer’s demand.



Application of Geoxtile:

1. Filtration

The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.

2. Separation

The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.

3. Reinforcement

The highway, railway, soilstone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.



4. Protection

It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.



Technical specification of short fiber needle punched non-woven geotextiles:
According to GB/T17638-1998 Standard



No.

Item

Specification

Note

Mass per   square meter g/m2

100

150

200

250

300

350

400

450

500

600

800

1

Weight   Variation %

-8

-8

-8

-8

-7

-7

-7

-7

-6

-6

-6


2

Thickness   mm ≥

0.9

1.3

1.7

2.1

2.4

2.7

3.0

3.3

3.6

4.1

5.0

3

Width   Variation %

-0.5

4

Breaking   Strength KN/m

2.5

4.5

6.5

8.0

9.5

11.0

12.5

14.0

16.0

19.0

25.0

MD and   CD

5

Elongation   at Break %

25 ~ 100

6

CBR   Mullen Burst Strength KN≥

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3.2

4.0


7

Sieve   Size 090 mm

0.07 ~   0.20


8

Vertical   Permeability Coefficient cm/s

k×   (10-1 ~ 10-3)

k=1.0-9.9

9

Tear   Strength KN ≥

0.08

0.12

0.16

0.20

0.24

0.28

0.33

0.38

0.42

0.46

0.60

MD and   CD

Needle   punched geotextile after treatment method
  Singeing, Calendar,Heat-setting, the film cover,steep glue setting. Shell   membrane surface treatment

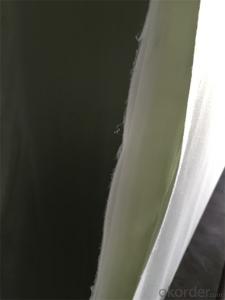

 Geotextile Products Show:



geotextile

geotextile

geotextile

geotextile

geotextile

























































































FAQ of our geotextile:

- Q: What can we do for the special customer?

   A: Provide custom made service with customer's drawing; We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items.


- Q: What can we supply?

   A: We provide high levels of communication from start to finish.



- Q: What is our advantage?

   A: Top Cemented Carbide has extensive business experience, Fast delivery and high quality.
