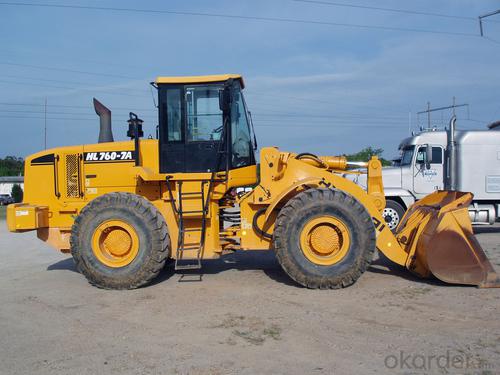

Wheel Loaders CE Approved 1.8 Ton

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 PCS
Supply Capability:
1500 PCS/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Wheel Loaders CE Approved 1.8 Ton


Product Details

Basic Info.

Model NO.:LQ918



Type:Large Loader

Walking Mode:Wheeled



Load and Unload Method:Front Discharge

Certification:CE, ISO9001: 2000



Condition:New

Wheel Loader:Wheel Loader



Export Markets:Global

Additional Info.

Trademark:LUQING



Standard:CE, ISO9001

Origin:Qingzhou City, Shandong Province, China



HS Code:84295100

Product Description




--Originated from Komatsu technology, high reliability and productivity,
--Torque converter and counter-shaft transmission gearbox- Komatsu technology, higher reliability and easier maintenance,
--Fully hydraulic steering system, power shift transmission, easier operation,
--Bucket can be leveled automatically, optimized working device, higher productivity,
--Comfortable operation environment, new design cabin, Grimmer seat
-Various working devices of attachment are available, such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet different needs
--With A/C

Rated weight1800Kg
Rated capacity1.03m3
Operating weight4000kg
Wheel base2100mm
Tread1260mm
Max. breakout force43KN
Max. dumping height3200/3700/4500mm
Dump distance≥930mm
Total time9s
Transportation 4060×2050×2790mm


 Engine

ModelWEICHAI HUAFENG ZHBG41
PatternVertical, water-cooled, 4-stroke, direct injection
Rated power/speed47kw/2400rpm
Max. torque270N.m
Normal fuel consumption258g/kw.h
Total displacement3.76L
Fuel 0# or 10# diesel oil


 Torque converter and transmission system

Model of torque converterYJ265
Pattern 3-element single stage
Transmission typeFull-power shift, countershaft type
Number of gear2 forward, 1 reverse
Max. travel speed38km/h
AxleWANGDA
Main reducer patternArc taper gear, model ration of first   grade
Pattern of wheel side moderationPlanet gear moderation of single


 Tire

Tire size20.5/70-16

 Steering system

Pattern Articulated and hydraulic steering
Min. turning radius(outside of bucket)3500mm
Max. turning angle35°±1


 Implement hydraulic system

Implement pumpCBG1045
Distribution device modelDF15.2C


 Brake system

Brake typeAir assisted oil disc on four wheel
Parking brake typeSoft axle control, outside bunch drum type

Wheel Loaders CE Approved 1.8 Ton

Wheel Loaders CE Approved 1.8 Ton


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Why did the excavator find Lan Xiang?!
However, compared to other vocational training schools, the reputation of Lan Xiang is not expensive. To 2.5 years of school car maintenance classes, for example, tuition is 32890 yuan. The average tuition is over 10000 per year, more than the majority of colleges and universities. In addition, Lan Xiang use military management, learning, eating, practice, life, and even love are strictly managed, everyone's words and deeds are monitored everywhere camera. Lan Xiang managers never mince words, students in their eyes is "product", they are responsible for the production of standardized qualified products. All of this lead to some social questions and criticism, and recently vice president led the provincial fight event is triggered strong public criticism.Despite the doubts, China's industrialisation and urbanization are booming, giving birth to the industry's enormous demand for skilled workers, ensuring that waves of young men and women are heading for Lan Xiang. They expect a professional return in the shortest possible time after a short training session. But now the Chinese, Lan Xiang met the demands of the students, their "ideal" can be achieved accurately, which is why the reality on the Internet Lan Xiang piece is unfailing.
Q:Are trenching machines and excavators one or two different 10?
According to the principle of internal combustion and power, thin in the air, mine generally use the latter. Some other special kinds of shovel, such as grab, drag shovel, mountain shovel, etc., have pictures on the Internet, or suggest you open the backhoe, the work is easy to find, and open well, then there are people who hire you. Wish you success!
Q:Explanation of tail slewing and tailless rotation of excavators
Moving arm side shift deviceThe front part of the body equipment boom side shift device, so as to realize the direct mining work similar to wall area, without frequent driving. With the small tail structure, narrow areas should be handled freely.Tailless slalomThe Kubota small excavator uses a small, tailless, rotating structure that does not exceed the width of the vehicle when the upper part is turned, so it is free to operate in narrow areas.The latest hydraulic systemThe system is not affected by the load size, but the hydraulic fluid flow is fully allocated according to the amplitude of the joystick. Therefore, the operation can be done easily according to the intention of the operator. At the same time, because of the small load of the engine and the unnecessary loss of the flow rate, various micro operations and compound operations can be realized.Original engineKubota is one of the few independent manufacturers of engines. Equipped with a small excavator engine, condensed for nearly a century of experience and technology, power surging, can meet all kinds of harsh occasions of operation.Clean engineEmissions of compounds that cause environmental pollution are minimized, a low fuel consumption clean engine that meets the next generation of needs.
Q:Is the power supply voltage of the excavator AC or DC?
The power supply of electric excavator is AC power supply.The AC power is introduced into the interior of the excavator and then converted into direct current by the unit or the electronic converter.
Q:What kind of excavator does Nissan brand have?
Komatsu, komat 'Su (PC). Zaxis (EX). Hitachi, Kobelco, Kato, Kobelco (SK) KATO (HD). Sumitomo, SUMITOMO (SH). The car has Ishikawajima Kubota IHI. Yanmar.
Q:Which brand is good for excavator?
Just nonsense, the assembly of domestic localization is not high, but a little fragile, is made in China, the rest are also required by others own factory production! Landlord is a prop? Do you sell Japanese cars?You want Komatsu now, Carter?. Volvo is the three in the top three. Relatively speaking, or that the characteristics of fuel economy, oil. However, according to my own ranking is. Volvo. Komatsu. Carter
Q:How about Xugong excavator?
31 is not what good goods! All I did was 31Xugong is also made in China, and it is estimated that it is not goodIf you buy machine, easy to buy Carter, or greater than, Komatsu value and so on, @You spent a few years later, you can sell hundreds of thousands, and the other is equivalent to selling scrap iron! You'll see
Q:Which country is Carter excavator?
In fact, Carter is also produced in Japan on the nameplate, there are MADE, IN, JAPAN
Q:How to learn excavator
Every beat butter like live as an apprentice to the courage to bear various combinations, when nothing to do when careful observation work digging machine, angle. Can also do in the master behind, see the master work. In short, the operation of the case is not difficult to learn, see their savvy, and how much time you can learn. No one knows, no one knows! Look at your savvy! Learn one day, one year will not learn, and understand! If you want to learn, study hard, you can do a simple job in a month or so! In fact, the real master is not good in this aspect of digging machine operation. Want to do good, there are a few points of master machine. Simple operation, flexible speed. There is no unnecessary waste. Take a look at the construction situation, you can quickly do a good job plan, faster completion of the work done. Take good care of the machine and butter on time... Wait! In fact, learning machine is not difficult, if you want to learn. It is so simple, you make up your mind, you can find a good master, to learn carefully, 1 months or so, you can go it alone. When learning to always touch the machine, the light does not work, it is practical... That's probably it.. Finally, tell you one of the most important aspects! Do not go to school to learn, spent money do not say, out of no use, but also from the new learning!! You can't believe it, you go to school and you cry.. That's probably the point.. Ha ha, try hard!
Q:How much is the tuition fee for Lan Xiang excavator?
Total cost: 4750 yuanExcavator maintenance class: semester three months, learning excavator, loader working principle, hydraulic, transmission, mechanical, circuit system maintenance technology. Total cost: 9980 yuanLoader operation class: semester a month, learn the safe operation of loader and driving, structure, working principle and so on maintenance technology. Total cost: 3760 yuanCar crane class: semester a month, learn the safe operation of car crane, cargo lifting, maintenance and other technologies. Total cost: 4660 yuanRoller operation class: semester a month, learning roller operation and structure, working principle and maintenance technology.
