Product Description:

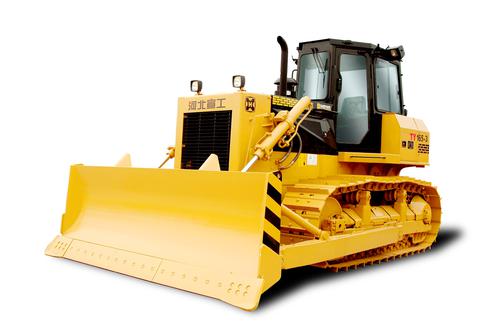

TY165-3 bulldozer is semi-rigid suspended, powershift, hydraulically controlled and track-type. It is applicable for roadconstruction, water and electricity engineering farmland leveling, portbuilding, mining and other engineering conditions.

Main specifications (Standard type: straight dozer)

Overall dimensions (L×W×H) :------------------------------------------------------5447×3442×3160 mm

Operation weight:-----------------------------------------------------------------------------------------------17.55t

Flywheel power:-----------------------------------------------------------------------------------------------121kW

Max. drawbar pull:------------------------------------------------------------------------------------------139.6kN

(The efficient force depends on weight and groundsurface adherence)

Ground pressure (at operating weight):------------------------------------------------------------------69.2KPa

Min. ground radium:-------------------------------------------------------------------------------------------4.0 m

Min. ground clearance:-----------------------------------------------------------------------------------352.5 mm

Grade ability:----------------------------------------------------------------------------Straight30 Side 25

Diesel engine

Manufactured factory: SHANGHAI DIESEL ENGINECO., LTD

Model:-------------------------------------------------------------------------------------------------C6121ZG05a

Type:-------------------------------------water-cooled,single-row, vertical, 4-stroke-cycle, turbo-charged

Number of cylinders-bore×stroke:---------------------------------------------------------6-120.7×152.4mm

Total piston displacement:---------------------------------------------------------------------------------10.5 L

Rated RPM:---------------------------------------------------------------------------------------------1900r/min

Rated power:---------------------------------------------------------------------------------------------131  kW

Oil consumption (at rated power output)

Fuel consumption:--------------------------------------------------------------------------244 g/kW·h

Lube oil consumption:-----------------------------------------------------------------------0.6 g/kW·h

Max. torque (1400r/min):------------------------------------------------------------------------790 N·m

Cooling method:---------------------------------------------------------------closedcirculation water cooling

Starting method:--------------------------------------------------------------------------------byelectric at 24V

Torque converter and transmission

Single-stage, three unites structure torqueconverter.

output power is stable with high performance.

Planetary, power shift transmission with three speedsforward and three speeds reverse. Speed and direction can be quickly shifted.

Travel speed (in theory 1900/min engine speed ):

Forward                             Reverse

First speed                 0—3.32 km/h                        0—4.00 km/h

Second speed               0—6.26 km/h                        0—7.57 km/h

Third speed                0—11.40km/h                        0—13.87km/h

Steering and braking

The steering clutch is tighten by pressuredsprings and separated hydraulically with oil-type, multi-powder-metal discs.

The brakes are oil, two-direction floating band withmechanism foot pedals, hydraulic boosted. The steering and braking can beactuated in one control.

Transmission, steering and braking operation

The operation of transmission , steering andbraking is controlled by single lever  .Transmission, left and right steering and braking can be realized for threespeeds forward and three speeds reverse by one handle .

Final drive

The final drives are double reduction with spurgear and segment sprocket, which are sealed by duo-cone seal

Undercarriage system

The undercarriage is section steel welded trackroller frame with diagonal

brace.

The track rollers, carrier rollers and front idlershave the same floating seals which are long-service life and seal well.

Number of track rollers: -----------------------------------------------------------4single-flange on each side

                 -----------------------------------------------------------2double-flange on each side

Number of carrier roller :--------------------------------------------------------------------------2 on each side

Number of front idler: ---------------------------------------------------------------------------oneon each side

Track type: -------------------------------------------------------------------------singlegrouser, modular type.

Track adjuster type: ----------------------------------------------------------------------byhydraulically adjust

Pitch: --------------------------------------------------------------------------------------------------------203 mm

Numbers of shoe:-------------------------------------------------------------------------------------------------38

Width of shoe: ----------------------------------------------------------------------------------------------500mm

Length of track on ground: -----------------------------------------------------------------------------2570mm

Implement hydraulic system

It consists of two group gear pump ,pilot valve,main valve , cylinders, oil filter and lines.

Pump type: -------------------------------------------------------------------------------twogroup gear oil pump

Pump flow : Front pump :--------------190L/min ; Pilot pump :----------------------------------19L/min

System pressure: -------------------------------------------------------------------------------------------12MPa

Basic hydraulic system

Pump type: -----------------------------------------------------------------------------------------gearoil pump

System output:------------------------------------------------------------------------------------------135 L/min

System pressure:------------------------------------------------------------------------------------------2.35MPa

Cab

The cab with adjustable seat features low noiseand wide visible range and contains electrical fan.

The different kinds of cabs as follow can be chosen:

1. Cab with air-conditioner

2. Cab with Rops canopy

3. Rops.

Service refill

Fill location                                                            Capacity(L)

Radiator and diesel engine water:-----------------------------------------------------------------------60

Lubricating system of diesel engine Oil:---------------------------------------------------------------27.5

Flywheel house, Torque converter  ,

Transmission, bevel gear case  Oil:----------------------------------------------------------------------95

Final drive(each side)  Oil:--------------------------------------------------------------------------------24

Implement hydraulic system  Oil:------------------------------------------------------------------------85

Fuel tank Oil: -----------------------------------------------------------------------------------------------230

Track roller, carrier roller, front idler(each) Oil:------------------------------------------------------0.35

Blade specifications

BladeStraight

Width --------------------------------------------------------------------------------------------------3297 mm

Height--------------------------------------------------------------------------------------------------1170 mm

Max digging depth:------------------------------------------------------------------------------------420mm

Max. ground clearance:-------------------------------------------------------------------------------852mm

Tilting angle:-----------------------------------------------------------------------------------------------8.5°

Blade capacity:------------------------------------------------------------------------------------------4.5m3

Ripper specifications

Number of shank :-------------------------------------------------------------------------------------three

Length :-----------------------------------------------------------------------------------------------1580mm

Width :------------------------------------------------------------------------------------------------2020mm

Max. Penetration depth : -------------------------------------------------------------------------550mm

Max. Lifting height : --------------------------------------------------------------------------------510mm
