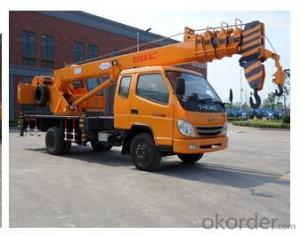

truck crane with max lifting capacity of 8 tons

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 unit
Supply Capability:
15 unit/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:



Quick Details

  • Feature: Truck Crane

  • Condition: New

  • Application: Max lifting capacity 8000kg

  • Rated Loading Capacity: 8000kg

  • Rated Lifting Moment: 196 kn*m

  • Max. Lifting Load: 8000kg

  • Max. Lifting Height: 26m

  • Span: 4400mm

  • Model Number: YGQY8K
  • Certification: ISO9001:2008

  • Warranty: 12 months

  • After-sales Service Provided: Engineers available to service machinery overseas

  • Engine Model: YN33CR

  • Chassis Model: T-king ZB5090JQZP

  • Main hook single lifting load: 1350kg

  • Main hook single lifting speed: 50m/min

  • Auxiliary hook single lifting load: 300kg

  • Auxiliary hook single lifting speed:100m/min

  • Max Travelling speed: 80km/h

  • Tire type: 7.50-16 with spare tire

  • Braking form: Air brake

  • Dynamic motor: GB 11KW-6-pole

  • Technical Parameters for truck with loading crane



    Product model

    YGQY8K

    Total mass           kg

    8000

    Overall dimension     mm

    8510x2190x3100

    Rated elevating capacity   kg

    8000

    Rated Lifting torque   kn*m

    196

    Max. Lifting Height     m

    26

    Main hook single load   kg

    1350

    Main hook single elevating speed m/min

    50

    Auxiliary hook single load kg

    300

    Auxiliary hook single elevating speed m/min

    100

    Engine model

    YN33CR

    Derailleur model

    LG5-25 With high and low speed auxiliary box

    Tires

    7.50-16 with spare tires

    Braking form

    Air brake

    Steering form

    Hydraulic power steering

    Crane jib structure

    Category five hexagon box-type, hydro cylinder telescopic boom

    Main Lifting Mechanism

    Category two planet wheel with a brake inside

    Auxiliary Lifting Mechanism

    Category one gear brake motor

    Swing Bearing

    GB Φ1000 Tooth, material 50Mn intermediate frequency

    Vertical hydraulicleg

    Double-acting engineering oil cylinder

    Horizontal hydraulicleg

    Double-acting engineering oil cylinder

    Platform

    Anti-skidding and big

    Protective Screening

    Two-way

    Night light

    3 lamps control

    Dynamic Motor

    GB 11KW-6 pole

    Crane Cab

    Tailor-made

    The central axially symmetrical

    Four oil ways

    Crane Start

    Tailor-made

    Throttle

    Hydraulic

    Warning Horn

    Mono snail

    Pressure gage and switch

    Shockproof component

    Power Takeoff

    Driving indoor operation zip type

    Hydraulic Oil Tank

    Turntable rearmounted, counter weight combined type, special four-layer filters

    Load displayer/ Lift height limiting stopper

    Optional



Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is the difference between a tires crane and a truck crane?
The general tire crane chassis is not in the general or special car chassis type spectrum, but specially designed out of a chassis, so the design of this crane is not subject to the existing car chassis type spectrum limit, wheelbase,
Q:What about the Reza car cranes?
Crane products in line with national testing standards, but also the use of German test testing standards, the crane's driving performance, operating performance and structural strength and other aspects of the test were tested, the product quality of the German manufacturing level.
Q:Is the crane (a truck crane) a truck?
Article 2 of the Regulations of the People's Republic of China on Road Transport stipulates that "the road transport operations referred to in the preceding paragraph shall include road passenger transport operations (hereinafter referred to as passenger transport operations) and roads
Q:What is the relationship between all-terrain cranes and tire cranes?
Tires are truck cranes mainly in the car chassis improved car cranes, such as the liberation of 8 tons of truck cranes is in the liberation of CA141 chassis modified truck cranes, and its chassis CA141 is the most extensive truck.
Q:What is the packaging of a car crane?
quantity, technical specification, special use requirements, packaging and transportation conditions, delivery time, payment method, quality assurance, claim and arbitration.
Q:What is the principle of the arm boom of the boom-type truck crane?
There are two ways in which the boom is extended and retracted; sequential telescopic and synchronous telescopic
Q:What is the difference between the main arm and the basic arm of a truck crane?
The secondary arm is for distinguishing from the main arm, and the auxiliary arm includes the first section of the auxiliary arm and the second section of the secondary arm (if there is a second section of the auxiliary arm).
Q:What is the relationship between the winch and the reel and the reel shaft?
Winch system: get off the oil pump through the center of the rotary joint, and then through the main valve, the first through a gale balance valve, and then drive the hoisting motor, hoisting motor through a spline shaft connected to the reducer (some motor directly connected to
Q:What is the quota for a car crane (25T)?
Generally remember the cost of a large machine into and out of the transport or transport (need to transport).
Q:What is the development trend of truck cranes in China?
due to increased market demand, but also requires the production enterprises to innovate, to ensure the performance of the crane on the basis of continuous development
