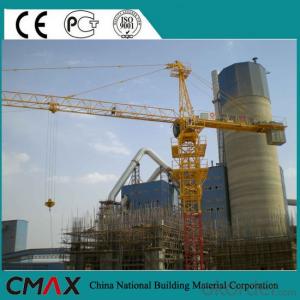

TC6016 with CE ISO Certificate 10T Types of Tower Cranes for Sale

Ref Price:
Loading Port:
China main port
Payment Terms:
TT OR LC
Min Order Qty:
1 unit
Supply Capability:
100 unit/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Descriptions of our tower crane:

1, TC6016 have competitive price and excellent quality, suitable for all kinds of construction project and can work under all kinds of work condition. With their working radius from 2.5 to 62m, TC6016tower cranes are famous for their large operating ranges, varied working methods and wide uses.

2,This series of tower cranes has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism.

3, It is original in design, reliable in operation and satisfactory in shape.

4,Equipped with all necessary safety devices, these cranes show a good speed-control capacity,, satisfactory operating stability and high work efficiency.

5,They are widely applied for the construction of high-rise hotels, resident buildings, high-rise industrial buildings, large-span factory buildings and tower like buildings like tall chimneys. Best after sales service will be offered which will get rid of all your worries in the purchase of our products


Advantage of our tower crane:

1, boom relief Angle is big, greatly widened the equipment capacity and scope of work.

2, suitable for the group of tower cross homework.

3, boom stability is good, combination amplitude range.

4, suitable for height have special requirements occasions construction.

5, lifting capacity big, effectively solve the high steel structure construction team crane big lifting capacity requirements.

Features of our tower crane:

TC6016 with CE ISO Certificate 10T Types of Tower Cranes for Sale



Independent height (m)

50.5

Max height with attachment (m)

200

Working range can be adjusted(m)

48/54/60

Min working range(m)

2.5

Max lifting capacity(t)

10

Tip load @ 48m(t)

1.6

Hoist mechanism

Falls

2

4

Lifting capacity(t)

0-2.5

-

0-5

0-5

-

0-10

Speed(m/min)

0-80

-

0-40

0-40

-

0-20

Motor

YZPBFc250M1-6-45W

Trolleying mechanism

Speed(m/min)

0-56

Motor

YPBE132S-4/8/16-4-5.5KW

Slewing mechanism

Speed(r/min)

0-0.6

Motor

YTW112M2-4-4KW X2

Climbing speed(m/min)

0.5

Counterweight(t)

18.9

Mast section size(L×W×H)m

1.6×1.6×3.0m

Working temperature

-40-+60°C

Total power (KW)

60

Power supply requirement (KVA)

190KVA for generator

Cable type ( within 30 meters from site power source to lower

 electric box of tower crane )

50mm2(3+2, 5 cores)

Startup voltage & current

380V×95%=361V       179A

Rated working voltage & current

380V                   116A



TC6016 with CE ISO Certificate 10T Types of Tower Cranes for Sale

TC6016 with CE ISO Certificate 10T Types of Tower Cranes for Sale

TC6016 with CE ISO Certificate 10T Types of Tower Cranes for Sale

TC6016 with CE ISO Certificate 10T Types of Tower Cranes for Sale

TC6016 with CE ISO Certificate 10T Types of Tower Cranes for Sale


TC6016 with CE ISO Certificate 10T Types of Tower Cranes for Sale

FAQ;

1. why chose us?

China National Building Materials (Group) Corporation (CNBM), established in 1984,now is one of the largest state-owned group corporation in China, dealing with building materials & industrial equipment. Up to year 2010, CNBM Group's total asset is 20 billion USD and total staff is more than 100,000.CNBM International Corporation, specializes in designing & manufacturing of various

kinds of construction machinery, including tower crane, building hoist, etc. All the equipment produced by CNBM are compliant with the National level quality standard, and wins great reputation for their endurable performance in worldwide markets.



2.How about the shipment?

You can put 2 sets of of wheel loaders in one 40HQ container. The spare parts are packed with boxes.

The delivery time is 20 days.



3. What about your service?

We have our factory, we can meet customers needs as soon as possible.

We have first rate professional technology and provide good after-sales service.



4.After Sales Service

We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:S930 M50 (M125/75) level jib tower crane about how much money
Do you want to see is that, generally is Sishijiwan
Q:Tower crane and construction hoist service life? What are the norms and standards? How to detect?
more than 1250KN.m (including 1250KN.m), the factory more than 20 years of age (including 20 years);Construction hoist: SC years of construction for more than 8 years (excluding 8 years) SS construction hoist; factory life of more than 5 years (excluding 5 years) of the construction hoist.Excluding other areas
Q:Tower crane; command; gesture
5. hook down: arm stretched to the front, lower, and the body with an angle of about 30 degrees, five fingers stretched out naturally, with the wrist as the axis rotation.6. hook horizontal movement: small arm side to side straight, fingers together, palms outward, toward the direction of the load should be moving down to the shoulder level position.7. the hook rises slightly: the small arm extends to the top of the side, the top of the palm is higher than the shoulder, the wrist is the axis, and the palms swing upward repeatedly.
Q:What is the torque limiter of the tower crane A: the lift is stopped when the lifting torque is exceeded. B: over gravity
The torque limiter acts as follows: (a)In lifting process, when the weight of the lifting object moves ahead of the trolley when the lever force exceeds the moment limiter, the hook rises, the motor and the trolley forward motor are stopped at the same time, and the utility model has the safety function.
Q:How to distinguish self lifting tower crane with counterweight and lifting tower crane without counterweight
With the weight of the tower crane is mainly ordinary tower cap tower crane, tower crane and tower crane type, is made of concrete counterweight pieces of the balance arm, is also useful for iron making, but relatively rare.The tower crane without counterweight is mainly a city quick loading tower crane. It is characterized by the absence of balance arm, and it is impossible to have counterweightThe layman can not tell the can see the appearance, there are long steel structure before and after the weight of the tower body, and no weight of the tower body with only one steel structure (i.e. jib crane, structure)
Q:Climbing process of an internal climbing tower crane
The tower is sleeved on the ladder climbing, lifting hydraulic cylinder is articulated in the body of the beam, and the lower end (piston rod end) the middle beam is hinged on the activities. The two sides of the tower are provided with legs, and the two sides of the movable beam are also provided with legs, and the two supporting legs are alternately supported on the ladder steps so as to cause the tower to rise.
Q:Tower cranes should stop working when the wind speed is greater than the magnitude.
Rules for safety regulation of tower crane,The installation of tower crane is strictly prohibited at grade 4 or above
Q:Who invented the tower crane, please?
Tower crane originated in Western europe. The first patent on tower cranes for construction was issued in 1900. In 1905, a crane with a boom was fixed in the tower. In 1923, a prototype of modern tower crane was built. The first relatively complete modern tower crane appeared in the same year. Our tower crane started from Shanghai in 1950.
Q:What role does the tower crane torque limiter play?
The overload protection of tower crane is protected by two equipment, lifting load limiter and torque limiter. The latter generally in the big arm root 4-5 meters to the front of the large arm, overloading (Chao Liju) work, it is more important, basically, the scope of work is torque limiter plays a protective role. While the former is the weight limiter function in the arm root within 4-5 meters, because the tower crane is a jib type crane, each allowing weight lifting position corresponding to the different (CAB load curve). For example, such as 63KN.M, the big arm root 2 meters lifting, the theory is 23 tons, while the torque limiter is not over, but in fact, the tower crane at early crouched down, so the weight limiter in this work.
Q:Where can I get the tower crane manufacturing permit?
This is the permit of the Bureau of quality supervision
