Product Description:

Introduction of Non-Pressure Solar Water Heater:

Non-pressure Solar Heater is one of the most economical solar water heating device with pretty high efficiency at the same time. It consists of hot water storage tank, solar vacuum tubes with mouth plug in storage tank, and bracket supporting tank and tubes.When cold water in evacuated tubes is heated with solar irradiation, as the specific gravities of hot water and cold water are different, hotter water goes upward to storage tank and colder water goes downward to glass tubes. through this continuous circulation, the cold water in storage tank will be gradually heated till sunset.



Specialty:

1.    High thermal performance and working temperature: the heat exchanging rate even in winter can up above 55%.

2.    Heat collecting efficiency is at least 20% above common solar systems.

3.    Work in all day and all season: no matter any corner of the world, this system can work well even -40 to avoid the tube freezing problem.

4.    Reliability: No water following through the tube, so water scale can not generate and tube cracks could be avoided, the system still can keep working even with some damaged tubes.

5.    It can connect with water tap and work automatically with pressure0.6Mpa, bring enjoyable washing experience.

6.    Safety: P/T valve would release pressure and temperature to protect tank..



 Technical Specification:

1.    Outer tank material: SUS304 stainless steel or powder coated color steel

2.    Inner tank material: 1.2mm thick SUS304 food grade stainless steel  ( Optional material SUS316L)

3.    Vacuum tube material: borosilicate glass 3.3; AL-SS-CU absorb coating, with copper heat   pipe inside

4.    Frame material: 1.2mm thickness stainless steel

5.    Insulation material: 55mm thickness polyurethane

6.    Suitable for mains pressure water(up to 8 bar/116psi)

7.    Easy plug-in installation

8.    Install the T/P valve on the pressurized tank

9.    Seal material: Stabilized High Temperature Silicon

  1. Outer tank material: SUS304 stainless steel or powder      coated color steel

  2. Inner tank material: 1.2mm thick SUS304      food grade stainless steel  (      Optional material SUS316L)

  3. Vacuum tube material: borosilicate glass 3.3; AL-SS-CU absorb      coating, with copper heat   pipe inside

  4. Frame      material: 1.2mm thickness stainless steel

  5. Insulation      material: 55mm thickness polyurethane

  6. Suitable for mains pressure water(up to 8 bar/116psi)

  7. Easy      plug-in installation

  8. Install      the T/P valve on the pressurized tank

  9. Seal material: Stabilized High Temperature Silicon




19. Vacuum Tube

20.  Size (mm)

21.   Φ47*1500 / Φ58*1800 / Φ70*2100

22.  Tube (pcs)

23.   10 / 12 / 15 / 18 / 20 / 22 / 24 / 30 / 36 / 42

24.  Material

25.   Borosilicate 3.3 glass, magnetron spluttering selective coating

26.  Coating

27.   Single-target   AL-N/AL or Three-target AL/N-Cu-SS

28. Water Tank

29.  Capacity

30.   80L ~ 500L for hot water storage tank

31.  Inner tank

32.   Food-grade stainless steel SUS304-2B / SUS316

33.  Insulation

34.   High-density polyurethane foam with 70~80 hour heat preservation

35.  Tank shell

36.   Food-grade   stainless steel SUS304-2B

37. Bracket

38.  Shaped strong   aluminum alloy structure adaptable for flat or slope roof

39. Accessories

40.  Anti-aging silicon seals, Dustproof seals, Air-vent cap, Stainless screws

41. Auxiliary Devices

42.  Assistant tankIntelligent controllerElectrical heaterMagnesium anodes

43. Tilt Angle

44.  25 ~ 50°

45. Water Output

46.  45 - 95°C

47. Hail Resistance

48.  Φ25mm diameter

49. Model Number

50. Solar Vacuum Tube

51. Tank

52. Liter

53. System

54. Liter

55. Container Loading Qty /sets

56. Size /mm

57. Qty /pcs

58. 20GP

59. 40GP

60. 40HQ

61. VNS-58SA12-100

62. Φ58*1800

63. 12

64. 100

65. 132

66. 58

67. 119

68. 140

69. VNS-58SA15-130

70. 15

71. 130

72. 170

73. 54

74. 108

75. 131

76. VNS-58SA18-150

77. 18

78. 150

79. 198

80. 43

81. 86

82. 105

83. VNS-58SA20-170

84. 20

85. 170

86. 223

87. 40

88. 80

89. 97

VNS-58SA24-200

24

200

263

35

70

85

VNS-58SA30-250

30

250

329

28

56

68

VNS-58SA36-300

36

300

395

23

47

57

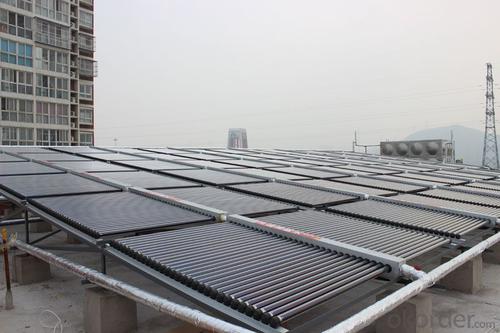

 Products Show


Solar Water Heater With Copper Coil In Water Tank


Solar Water Heater With Copper Coil In Water Tank
Solar Water Heater With Copper Coil In Water Tank



  Our Services

1.  OEM service

2. Warranty: 5 years

3. Considerable after sale service

Color steel Compact pressure Thermal solar heater

FAQ:

1.    What’s the delivery time?

10 days after receiving deposit.

2.    How long is the warranty?

5 years for whole system, 1 year for accessory

3.    What’s your production capacity?

6000sets/month

4.    What’s the MOQ?

1 set.

5.    What’s your payment term?

Container: 30% T/T in advance for deposit, 70% T/T before shipment for fist order.

70% T/T after seeing copy of B/L from second order

Sample: 100% T/T in advance

Other choices: L/C at sight.

6.    What certifications do you have?

CE, SOLAR KEYMARK, SRCC and etc.

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Solar water heater is water riot or anhydrous riot
Solar energy will be the main components of the unexpected burst vacuum tube, the correct use of the case will not happen.
Q:Solar water heater, gas water heater and electric water heater which is better?
Gas water heater: the use of energy is combustible gas, it has the advantages of fast heating, water, temperature stability, less scale, and small footprint, free from water control. Disadvantages: the use of the process will be due to inadequate combustion and discharge of toxic gases, easy to cause safety accidents;
Q:Long term use of solar water heaters should not be how to maintain?
Long term maintenance method of solar water heater:1 do a clean up and clean the water heater.
Q:Solar water heater in a total valve when a pipe on the water.
The valve should be connected to the sink Xicai pool of hot water supply. Please ask the amount of your installation master.
Q:What is the structure and principle of solar water heater?
Two is the surface absorption coating. The core fin efficiency of the designed collector should be more than 93%. The core fin efficiency of the collector is related to the structure of the core, the surface treatment and the overall structure of the collector. The overall heat transfer coefficient of the collector can be described by the total heat transfer coefficient, which is the same as the size of the geometry. That is to say, in the case of the same efficiency, the heat collector can be thinner. Selective absorbing surface can improve the efficiency of heat collection, but these products in the market in order to improve economic efficiency, often thin rib. In the case of water heaters, the actual effect of the collection of such products and the selection of some poor (and even no selectivity) but the thickness of some of the collector will not be much difference.
Q:How to use solar water heater controller
Take a look at this line is not, the general control instrument used are almostThe use of solar water heater microcomputer intelligent measurement and control instrument
Q:What kind of solar water heater industry
Water heater 2009 annual output of 42 million square meters, an increase of 35.5%, of which 40 million square meters for the vacuum tube collector, accounting for about 95% of the social population reached 145 million square meters, an increase of 16%, energy saving of about 21 million 750 thousand tons of standard coal, carbon dioxide emissions of about 60 million tons. 2009 solar water heater production accounted for 78% of the world, accounting for the world's total of 54%. The total output of 2010 Chinese solar water heater industry reached 49 million square meters. In China more than 95% of the products for all glass vacuum tube solar water heater. The solar water heater industry is a specialized industry, has been basically formed from the technical research and development, product design, raw material processing, equipment manufacturing, production, testing and certification, engineering design and marketing services to the industrial system, led to the development of glass, metal, insulation materials, machinery manufacturing, logistics and other related industries.
Q:The solar water heater is broken
If your water is tap water, according to the floor level and the need to provide water, plus a booster in the electromagnetic valve before the pump (market 90W 120W head 10 meters, 13 meters head automatic booster pump, and other specifications optional)
Q:Solar water heater is not how is it going?
The vacuum tube:There are a lot of families to install a vacuum tube solar water heater, vacuum tube is an important component of the absorption of solar heat source. Vacuum tube does not clean up for a long time will affect the ability to absorb heat, there will be only out of cold water hot water phenomenon. Vacuum tube solar water heater in sunny weather in summer, heat absorption fast, if no one at home for a long time without water, so that the water tank for a long time in a state of high temperature, high pressure, the problem will not be able to water tank aging. In addition, vacuum tube damage caused by insufficient heat, solar water heaters will cause no hot water. To clean up the vacuum tube in a timely manner, if there is damage to be replaced in a long time, no one at home should be placed in the vacuum tube to block the sun blocking.
Q:Types of solar water heaters
Classification from structureThe utility model is characterized in that the vacuum glass tube is directly inserted into the water tank, and the water temperature of the water tank is increased by using the heating water circulation. Is also the most popular. Only the top layer can be used to change the type of water heater, unless the top user and the relationship between your downstairs special iron, and the roof area is limited. Split type water heater: split type: the solution is not the top users can also use solar water heaters. Split cycle 2, a water on the natural circulation, the heat exchange efficiency is low, can not meet the requirements of water; a pump circulation heat exchange, to solve the problem of low efficiency of natural circulation, pump circulation, can significantly improve the water heat exchange
