Product Description:

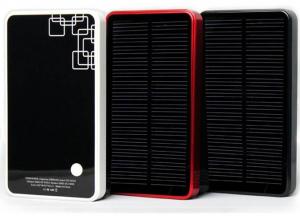

Specification of Solar Portable Charger

When put the solar charger under the light, the photovoltaic solar panel will automatically convert the light into electrical energy for reserving energy. As to the different solar charging efficiency is caused by corresponding different intensity of light, what we need to do is just place the product under the light, and the solar indicators will be working, that means the product is on working status, also we can judge the battery capacity by check the indicator’s status, it will tell us the statues of the product’s battery capacity.



Parameters of Solar Portable Charger









 Solar Portable Charger

Solar Portable Charger









 Solar Portable Charger

Solar Portable Charger



Capacity:  2000mAh/3000mAh

Color: Black/White/Red

Weight: 95g(2000mAh)

Size: 108*58*12.5mm

Input Voltage: 5.0V ±0.5V

Input Current: 1A

Output Voltage: 5.0V ±0.25V

Output Current: 600mA

Solar Panel: 5.5V/95mA, Monocrystalline

Cell: Lithium Polymer

Time of charging mobile phones: about 120minutes  (different mobile phones need different time)

Time of charging itself fully by USB cable: 3-4hours

Time of charging itself fully by sunlight: 15-20hours

Accessory: Output &Input cable *1pcs , Connector*5pcs (iPhone, Nokia n7x, Micro usb, Mini usb, Samsung)



Packaging & Delivery of Solar Portable Charger

Packaging: Wooden box or Customized

Delivery: Depends on the quantity or Customized



Notice of Solar Portable Charger

1.   1. Do not use the sharp objects scratching the surface of the photovoltaic panel.

2.   2. In order to maintain it on recharging states at any time, please make the photovoltaic panel upward to the sunlight or direct light when  placing the product.

3.   3. Please do use the original power adaptor for charging, and do not use other different power adaptors.

4.   4. Please place the charger under dry environment.

5.   5. When the short-circuit protection happened, and the charger has already stop working normally, please pull the cable out, the charger   will automatically restored in 10 seconds, and it is ok to be used again.







Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:The principle of mobile phone solar charger
use efficiency. The efficiency of use includes two aspects: solar panel conversion efficiency and secondary conversion efficiency. The conversion efficiency of solar panels, as the name implies, refers to the efficiency of light energy conversion into electricity; and the secondary conversion efficiency refers to the efficiency of light energy stored in the battery after being converted into electrical energy.
Q:Do you have a solar charger?
Second, do not put the mobile power in the high temperature of the car, or the battery life will be shortened, try not to cross the glass to the sun to the mobile power to charge, because the effect is not obvious. Finally, be sure to charge the mobile power under strong light and do not use chemicals to wipe the product.
Q:Can a solar charger be charged for a cloudy day?
due to the factory, each charger within the power is inconsistent, so the initial use of charging or discharge time will be different.
Q:Solar mobile power, you can side of the solar energy directed at the side of the phone to charge it?
if this time to the phone charge will make the phone exposed to the sun, so charging the phone will be very high temperature.
Q:5V120mA solar panel how to do the charger
the charger internal battery (usually lithium battery) charge. When used, open the internal boost constant current circuit (boost to 5V current limit 500mA can), the phone charge
Q:What are the shortcomings of solar charger?
you can choose a higher conversion rate of solar charger, Guorui sun in the conversion rate is still possible, more than 20% of the charging speed will be faster.
Q:How to put this charger into a solar charger
Your current circuit is just a pilot charging circuit, should be coupled with solar charging circuit, and solar modules, this is more trouble
Q:How does solar power be converted into charging with battery car
The output voltage depends on the number of solar panels and the individual open circuit voltage. The inverter outputs the constant current output of the solar panel to AC constant Pressure output. So the latter two only need to choose a matching universal charger can be.
Q:Can the solar charger be charged in the light?
Solar charger is the core of solar cells, solar cells, the sensitivity is generally the entire visible light, whether it is sunlight or light.
Q:How much will the solar charge charge the phone?
Single crystal and polycrystalline silicon solar power is the most efficient power generation, if you plan a day full of mobile phone batteries, solar power is calculated every day about 5 hours, then 1500 except 5 = 300ma, then 5 * 300 = 1500 in addition to 1000 = 1.5W, 5V solar panels,
