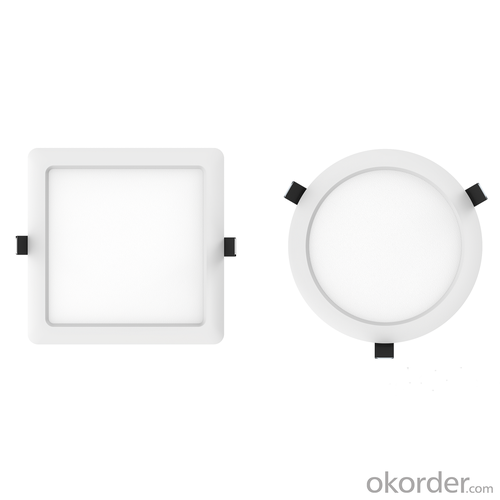

Slim and stylish design LED Downlight for Retail, home and office use

Ref Price:
$4.60 - 5.10 / pc
Loading Port:
Shanghai
Payment Terms:
TT or LC
Min Order Qty:
600 pc
Supply Capability:
300000 pc/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Item specifice:

Color Temperature: Cool White IP Rating: IP44
Power(W): 6 Lamp Body Material: Aluminum

Product Description:

Features

• Slim and stylish design

• Optimized LGP and diuser design

• Flicker free

Benefits

• Minimal aesthetic footprint once installed

• Even, balanced light

• Stress free ambient light

Product   DescriptionPower
    (W)
Power
     Factor
Lumen
     (lm)
Efficacy
    (lm/W)
CRICCT(K)Average   Lifetime(hrs)Energy Level
LEDDownlightRc-ES   R100-6W-3000-WH-NV 61380380803,00030,000A
LEDDownlightRc-ES   R100-6W-4000-WH-NV 61400400804,00030,000A
LEDDownlightRc-ES   R100-6W-6000-WH-NV 61420420806,00030,000A
LEDDownlightRc-ES   R150-12W-3000-WH-NV 121880880803,00030,000A
LEDDownlightRc-ES   R150-12W-4000-WH-NV 121900900804,00030,000A
LEDDownlightRc-ES   R150-12W-6000-WH-NV 121930930806,00030,000A
LEDDownlightRc-ES   R175-18W-3000-WH-NV 1811,3201,320803,00030,000A
LEDDownlightRc-ES   R175-18W-4000-WH-NV 1811,3501,350804,00030,000A
LEDDownlightRc-ES   R175-18W-6000-WH-NV 1811,3801,380806,00030,000A
LEDDownlightRc-ES   R200-18W-3000-WH-NV1811,3801,380803,00030,000A
LEDDownlightRc-ES   R200-18W-4000-WH-NV1811,3801,380804,00030,000A
LEDDownlightRc-ES   R200-18W-6000-WH-NV1811,3801,380806,00030,000A
LEDDownlightRc-ES   S100-6W-3000-WH-NV 61400400803,00030,000A
LEDDownlightRc-ES   S100-6W-4000-WH-NV 61420420804,00030,000A
LEDDownlightRc-ES   S100-6W-6000-WH-NV 61440440806,00030,000A
LEDDownlightRc-ES   S150-12W-3000-WH-NV 121920920803,00030,000A
LEDDownlightRc-ES   S150-12W-4000-WH-NV 121930930804,00030,000A
LEDDownlightRc-ES   S150-12W-6000-WH-NV 121950950806,00030,000A
LEDDownlightRc-ES   S175-18W-3000-WH-NV 1811,3401,340803,00030,000A
LEDDownlightRc-ES   S175-18W-4000-WH-NV 1811,3801,380804,00030,000A
LEDDownlightRc-ES   S175-18W-6000-WH-NV 1811,4201,420806,00030,000A

Slim and stylish design LED Downlight for Retail, home and office use

Slim and stylish design LED Downlight for Retail, home and office use


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is the role of LED downlight
Compared with other lamps, it is the main installation can be embedded into the ceiling will not affect the overall appearance but also has installed more than spot downlight, past ordinary lamps, in fact is the common use of lighting or other auxiliary lighting, general store with more traditional can replace the lamp
Q:What is the size LED downlight
LED lamp size generally have 6 inch, 5 inch, 4 inch, 3 inch, 2.5 inch, inch inch refers to here, refers to the inside of the reflection cup diameter.The commonly used standard size and parameters of LED downlight:2.5 inch LED lamp size parameters of hole (phi 80) - page table size Phi 102 * H30 power 3W;3 inch LED lamp size parameters of hole (phi 90) - page table size Phi 112 * H30 power 5W;3.5 inch LED lamp size parameters of hole (phi 100) - page table size Phi 122 * H30 power 7W;4 inch LED lamp size parameters of hole (phi 120) - page table size Phi 146 * H30 power 9W;5 inch LED lamp size parameters of hole (phi 150) - page table size Phi 180 * H30 power 12W;6 inch LED lamp size parameters of hole (phi 160) - page table size Phi 190 * H30 power 15W;LED downlight is a kind of embedded lighting ceiling light shooting style.
Q:LED ceiling lamp and LED downlight what is the difference
LED is a kind of lamps downlight than ordinary lamp with light, usually used for general lighting or auxiliary lighting.The LED spotlight is a highly focused luminaire with light rays that have a specific target to be specified. Mainly used for special lighting, such as emphasizing a very good taste or very innovative place.
Q:How to judge the quality of LED downlight
Determine the quality of LED ceiling lamp lighting effect, the United States and Taiwan LED chip chip chip, domestic chip etc.. Different brands, different prices, lighting difference is also large. Special low price downlight, make many use of chip production line down the defective products, color inconsistencies, brightness difference, short service life, users need to pay attention to.
Q:The opening 7, 5 cm height of the LED lamp, home decoration into the floor with fear of hydrochlorothiazide
Let the master in the wiring on the lamp to think about the way, I suggest you go online to see, in mind, or else you worry
Q:What is the difference between the LED and the LED lamp ceiling lamp
Specific point is, smallpox lamp, general light source and lamps and lanterns sell together. You are your own choice by light source lamp, but it is still about the same. The key depends on what kind of effect you use
Q:Now there is no replacement of the LED light source lamp?
Yes, it depends on what level you want. I can solve your problem with a net name.
Q:Excuse me, how many different sizes for LED lamp lumens
Ha ha, we should consider the problem of heat dissipation, ah, is the light will heat
Q:LED downlight, embedded lamps, lamp tube and difference?
No LED lamp lens, no light, light uniformity, light angle.LED recessed lamp is in accordance with the method, there are two types of installation and embedded installation. The recessed lamp is mounted inside the ceiling.LED cylinder spotlights have lenses, focus light, first focus on a place to illuminate, and where the illumination is high.
Q:Steam more business bathroom bath with what LED lamp?
LED fog lamp, in fact, as long as the structure can reach IP44 level
