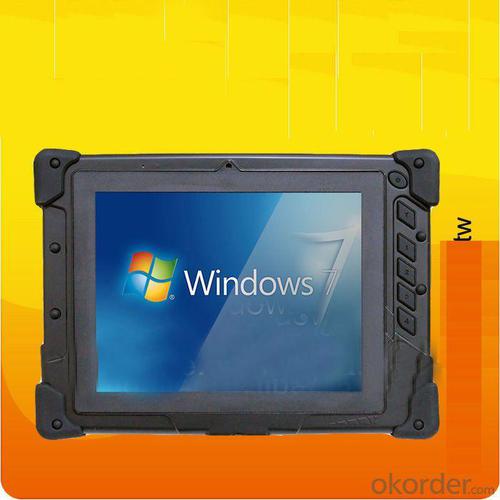

Rugged Tablet Pc For Windows 7
- Loading Port:
- Shenzhen
- Payment Terms:
- L/C,T/T
- Min Order Qty:
- 10 Pieces pc
- Supply Capability:
- 10000 Sets per Month pc/month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
8" Tablet PC
Model: | IC-8 | Size: | 8" |
CPU: | Atom N2600 | OS: | windows 7 |
Memory: | 2G | SSD: | 32G upgradable to 256G SSD |
IP: | IP65 | Battery life: | 10 hours |
Lead time: | 8 weeks | Weight: | 1.2Kg |
IP65 water & dust proof
Option functions:
2D bar code scanner
RFID
MSR
Smart card reader
Dual camera - front 2M, rear 5M
3.5G
U-Blox GPS
System | |
CPU | Intel® Atom Processor Dual Core N2600 1.6GHz / 1M L2 Cache |
Memory | 1 x 204-pin DDRIII SO-DIMM Socket support / up to 2GB |
Chipset | Intel Express Chipset NM10 |
Storage | MSATA SSD 32G to 256G |
Operating System | Microsoft® Windows® Embedded Standard 7 / Windows® 7 Professional / Linux |
Display | TFT LCD 8 inch |
Touch type : 4 Wires resistive type | |
Backlight Type : LED | |
Display Resolution : 1024 x 768 (XGA) | |
Luminance : 500 nits | |
Network Interface | Integrated WLAN 802.11 b/g/n |
Integrated Blue Tooth 3.0 | |
Finger Print | E-field Swipe Fingerprint Sensor |
Data Security | TPM 1.2 |
Control Switch and Buttons | 1 x Power on/off button |
1 x Barcode Scanner trigger button | |
1 x Function Key button (default on/ff control WIFI , BT , GSM/UMTS communcation, also can user define) | |
1 x Function Key button (default setting to CCD capture, also can user define) | |
2 x Function Key button (user define) | |
Indicator | 1 Power / 1 HDD / 1 Battery status LED |
Speaker & Microphone | Built-in speaker & microphone |
Light adjustment | Hardware |
I/O Ports | |
USB | 2 x USB 2.0 Type A |
DC Jack | 1 x DC Power input (16V / 4A) |
RS-232 | 1 x DB-9 RS232 Full function connector |
Micro SD | 1 x Micro Secure Digital (SD) card slot |
Expansion Docking PORT | 1 x 24 pin docking connector(Interface include Power, USB , Audio) |
RJ45 | 1 x 10/100 Ethernet , Support POE (Power-Over-Ethernet applications up to 25.5W) |
SIM Socket | 1 x SIM socket (located undermeath the external battery pack) |
HDMI | 1 x Mini HDMI connector |
Power | |
AC/DC Adapter | Input AC: 100~240V Output DC: 16V / 4A |
Battery Pack | Internal battery , one cell DC 3.7V/ 920mAh support hot swap under S3 state |
External 3S2P, 6 Cell, DC 11.1V/ 6200mAh for main battery | |
Enclosure | ABS+PC Plastics and rubber |
Stylus | 1 |
Dimensions | 251 x 181 x 3 (mm) |
Weight | |
Environment | |
IP Code ( IEC 529 ) | IP 65 |
Vibration | MIL-STD-810G Random: 20~2000 HZ / 7.69G |
MIL-STD-810G Sine : 5~500 HZ / 2G / 5G | |
Operating Temperature | -10°C – 50°C |
Storage Temperature | -20°C - 60°C ( Non Condensing ) |
Regulatory | CE / FCC Class B / FCC ID |
EN 60950-1 2005 | |
Drop ( Body) | 120 cm |
Option Functions | |
GSM/UMTS | Up to HSUPA 3.75G |
GPS | High performance positioning engine. Surport 50 channels. |
GPS L1 Frequency, C/A code. SBAS: WAAS/ EGNOS/MSAS | |
Camera | Front (2M)& rear (5M)dual CMOS Camera |
Bar code scanner 1D or 2D(UART Interface) | 1D symbologies: EAN/UPC, GS1 Databar (limited expanded & omni-directional), RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes (Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post) |
2D symbologies: Data Matrix, PDF417, Micro PDF 417, Codablock Maxicode, QR, Aztec GS1 composite codes | |
Scan rate : 2D mode: 56 images/s auto adaptive | |
Scan Angle : 38.9° (Horizontal), 25.4° (Vertical) | |
Optical resolution : 752 (H) x 480 (V) pixels, 256 gray levels | |
Print Contrast : down to 25% | |
Version : Standard range and high density | |
MSR(USB Interface) | Media formats: ISO 7811, AAMVA, and other F2F formats |
Swipe speed: 7 to 150 cm per second, bi-directional | |
Operating Life: 1,000,000 cycles minimum | |
Smart card reader | Operates ISO 7816 microprocessor or memory card |
Transfer rates: 9600 to 115200 bps | |
Operating Life: 1,000,000 cycles minimum | |
RFID | 13.56 MHz Mifare DESFire Reader / ISO 15693 Reader |
Reading distance: 30mm ~ 50mm depending on tag types |
Why we choose Okorder.com?
Okorder.com is a professional and reliable online E-market place
Providing a variety of products with reasonable prices
High quality goods provided by factory suppliers
Shipping to over 200 countries.
One-stop sourcing
Dubai Logistic Complex
Okorder Quality Control?
We hold a very strict quality control system to check every connector of our products for your safety.
Okorder services for you
1.7*24 hours Hotline & Email Service
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English
4. OEM&ODM, any your customized demand we can help you to design and put into product.
5. Distributor ship are offered for your unique design and some our current models
- Q:I want to install the Excel or WORD ppt feature on the Patriot E800 tablet. Can I install it? How to download and install it? Thank you
- You can install, you open IE software, such as QQ browser, such as, search OFFICE can be, like WPS can do
- Q:Does the tablet need to be recharged without electricity?
- Now the tablet PC is using lithium batteries, lithium batteries do not wait until the use of electricity, and then recharge, usually in idle time on the charge, so that the electricity remained at more than 20%. The battery life shortens as often as the charge is below 20%.
- Q:After connecting to the computer desktop, and although there is a safety angle to remove software logo, but I open my computer, which although there are two hard but when opened, it said, please insert the disk drive H: This is how ah tablet in USB debugging is useless
- Motherboard driver is no good, two solutions, 1 upgrade, update drive, 2 refresh system. If memory fails, replace it. Different machine method is slightly different, look at yourself to do it.
- Q:Have you ever used a tablet PC for an elite school student? Which one is good? Please give me some advice
- Do not buy garbage, I bought a 16 year, less than a year, repaired 7-8 times, sometimes stuck, shutdown is not closed, repaired a few days and so
- Q:Can tablets use the U disk?
- Most tablets now support OTG technology, so most tablets can connect to the U disk via OTG.First of all, you need a Otg line and a U disk, copy the files you want to move into the U disk, then insert the Otg line into the micro USB interface of the tablet, and finally insert the U disk at the other end of the Otg line. Tablet computers will soon read the contents of the U disk, through file management, you can move files from the U disk to the tablet.However, if some older models do not support OTG, it will not be able to connect to the U disk.
- Q:How do tablets share the flow of mobile phones? Detailed point
- Open cell phone Wi-Fi to create Wi-Fi hotspot. Then set the password, open the data traffic at the same time, and then use Wi-Fi to connect hot spots on the tablet PC
- Q:Is iPad a tablet? Are they apples?
- Yes, the iPad series is Apple's tablet computer
- Q:Is a tablet PC a mobile phone or a computer?
- Depends on the classification of the system.For Android and Apple tablet computer, the Android system it preloaded with the same mobile phone, operation mode and application experience with Android Apple mobile phone is basically similar, so they tend to large screen mobile phone, has advantages of wider perspective.For the flat Windows system, because of its preloaded with the same computer system, full support for EXE computer program, operation mode and function with the computer is basically the same, so their advantages are in favor of computer, can be replaced by computer for daily operation, very practical.
- Q:Where are the dots found on the apple tablet?
- General purpose auxiliary -Assis...
- Q:What are the video formats supported by tablets? Is it played as long as it can be played by the computer? What about the flat below the mall one thousand? Is there a video format required? Do you want to convert?
- Tablet PC comes with software, supported by the format of H.264, VC-1, MPEG-2, MPEG4, XviD/DivX, MP4, M4V, AVI, VOB, WMV, 3GP, MKV and other mainstream formats.For the network popular real format video, Real, 8910, RA, RM, RMVB, and FLASH format FLV, etc., it is recommended to download, decode, install. Or directly install third party playback software, support more video formats, such as Baidu video, or storm video.
