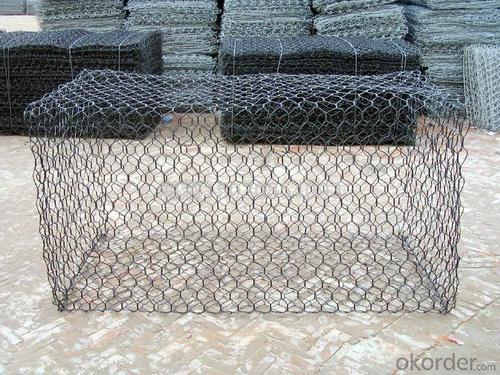

PVC Galvanized Gabion Box For Stone

Ref Price:
Loading Port:
China Main Port
Payment Terms:
TT OR LC
Min Order Qty:
-
Supply Capability:
-

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:


Quick Details

Place of Origin:
China (Mainland)
Side wire:
thinner than netting wire
Model Number:
MZ-GM
Type:
hexagonal wire mesh
Application:
gabions/fence/protective fence
Hole Shape:
Hexagonal
Aperture:
60x60mm-100x100mm
Material:
Galvanized Iron Wire,Low-Carbon Iron Wire
Wire Gauge:
2.0mm to 4.5mm
wWeave style:
twisted
Tech:
weave
Tensile strength:
38kg/m2
Product name:
gabion/gabion box/gabion basket/stone cage
color:
light green,yellow, grey,etc
Certificate:
ISO9001
Gabion size:
2x1x1,3x1x1,6x1x1...
Main Market:
North America,Eastern Europe,Southeast
binding wire:
thick than netting wire


Packaging & Delivery

Packaging Detail:Normally each roll packed in water proof paper, then in termo foil (Shrinked Plastic).
Delivery Detail:Depend on amount

Specifications

gabion wire mesh
1.Material: galvanized wire
2.Wire dia:2.0-4.0mm
3.Mesh :60*80,80*100mm
4.Gabion size:2*1*1m

Opening
(mm)

Wire Diameter(Metal Wire)    (mm)

Wire Diameter (PVC Coate)/ Inner/Outside(mm)

Strands

60X80

φ2.0-2.8

φ2.0/3.0-2.5/3.5

3

80X100

φ2.0-3.2

φ2.0/3.0-2.8/3.8

3

80X120

φ2.0-3.2

φ2.0/3.0-2.8/3.8

3

100X120

φ2.0-3.4

φ2.0/3.0-2.8/3.8

3

100X150

φ2.0-3.4

φ2.0/3.0-2.8/3.8

3

120X150

φ2.0-4.0

φ2.0/3.0-3.0/4.0

3


Hexagonal Wire Netting Gabions

Model

Opening(mm)

Body wire(mm)

Edge wire(mm)

Lacing wire(mm)

Max. width

DL60

60X80

2.0-2.8

3.0-4.0

2.0-2.2

4M

DL80

80X100

2.0-3.0

3.0-4.0

2.0-2.2

4M

DL80W

80X120

2.0-3.0

3.0-4.0

2.0-2.2

4M

DL100

100X120

2.0-3.0

3.0-4.0

2.0-2.2

4M

WL100W

100X150

2.0-3.0

3.0-4.0

2.0-2.2

4M

DL120

120X150

2.0-3.0

3.0-4.0

2.0-2.2

4M


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What is the use of wire
Iron is a long time will rust. Iron easily rust, in addition to its chemical nature of lively, but also with the outside world conditions also have a great relationship.Water is easy to rust the iron one of the material, iron into the water
Q:What is the barbed wire fence? What is the general specification?
Barbed wire fence Barbed wire fence can also be called: Dutch net, cattle bar net, wire fence, wall barbed wire and so on.
Q:How does the "jagged" on the back of the knife cut the barbed wire?
Knife knife cutting barbed wire as shown: the knife hole slightly and the sheath of the protruding part of a combination on the line (to M86 Saber and AK Army knife, for example)
Q:How is the wire mesh made
Wire and wire production is generally used in drawing process and galvanized. First of all, the application of electrolytic pickling, high pressure flushing,
Q:Barbed wire fence is what the iron ring
The wire rod is twisted by a fully automated barbed wire machine. Folk commonly known as Tribulus terrestris, barbed wire, thorn line. Type: single wire twist and double wire twist. Raw materials: high quality low carbon steel wire.
Q:In the chemical experiment, how does the wire mesh use? What are the effects?
when below the sieve The reaction can be stopped to achieve the purpose of controlling the reaction.
Q:Wall tiles how to hang iron wire mesh
Fenqian wire mesh for the cold galvanized welded wire mesh, is the choice of high-quality low-carbon steel wire welding wire, the intersection of advanced welding technology were vertical and horizontal welding, and then cold plating;
Q:How does proe draw wire mesh?
this curve you can draw their own equation can also be used to generate, I used here instead of sine curve example, sketched out a curve ,
Q:What is the mesh in the wire mesh specification?
In countries and regions using imperial units of measurement, the mesh size is expressed in holes / inch or lines / inch. The mesh can generally indicate the degree of tightness between the wire and the wire of the screen.
Q:Barbed wire mesh 20 mesh and 30 mesh what is the difference
The mesh count refers to the number of holes of 2.54 cm. The unit used to express the mesh in the mesh product specification is hole / cm or line / cm. In countries and regions using imperial units of measurement, the mesh size is expressed in holes / inch or lines / inch.
