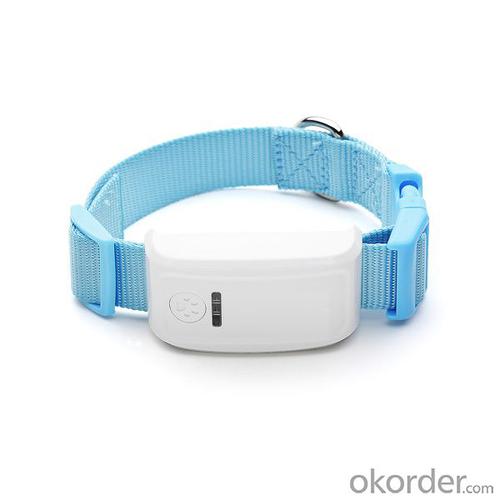

Long standby small waterproof GPS Pet Tracker

Ref Price:
Loading Port:
China main port
Payment Terms:
TT or LC
Min Order Qty:
10 set
Supply Capability:
500 set/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Long standby small waterproof gps pet tracker

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. The most advanced technology of GPS and GSM dual positioning.


I. Main functions

1. Real time tracking and positioning

2. Monitor (Voice Surveillance)

3. Geo-fence

4. Movement alert

5. Overspeed alert

6. SOS button

7. long standby.

ZXHY GPS909 long standby small waterproof gps pet tracker

Long standby small waterproof GPS Pet Tracker

II. Specs

Content

Specs.

Dim.

70mm x 37mm x 20mm(2.7”*1.4”*0.78”)

Weight

65g

Network

GSM/GPRS

Band

850/900/1800/1900Mhz

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status  45s

Warm status  35s

 Hot status  1s

Car charger

12—24V  input

      5V   output

Wall charger

110-220V  input

       5V   output

Battery

Chargeable 3.7V 1000mAh Li-ion battery

Stand by

300hours

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing

FAQ:

Q: What kind of payments could you support?

A: T/T, L/C, Cash are accepted.

Q: Do you charge for the samples?

A: Accordeing to our company policy, the samples are freee, we only charge the freight fee. And we will return the freight fee during the next order.

Q: Can you produce according to customers' design?

A: Sure, we are professional manufacturer, OEM and ODM are both welcome.

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:After the phone off the GPS service, but also be tracked?
If the mobile phone when the hand closed the GPS service, can be traced to? The answer is yes, but also needs some conditions.The principle is: one of the GPS mobile phone only realize the function of positioning technology, but also through the communication base station, Wi-Fi hotspot to mobile phone positioning. The localization technique is used most in all kinds of mobile phone positioning software is GPS positioning technology and base station positioning.
Q:How to find whether the car was installed GPS positioning
Now the GPS are generally connected to the battery; in the cab or under the dashboard has a small black box, the line picked on the line. If that kind of power supply can be easily sucked that kind of have to go to the garage.How to install:1, the car battery power is provided by battery cathode is received online, so you find a key in the closed door case, find a common line, the anode of the battery is directly connected to the vehicle frame and the ground can be so negative directly. GPS needs a power supply. Then the antenna will be fine.2, in general, will be positioned in the middle of the tracker to control the good point. Car GPS positioning tracker is divided into three types: wiring (as well as different functions, more functions, a little bit more complex wiring), OBD interface, with strong magnetic. The OBD interface is more convenient installation, like micro company T5S, just plug in the steering wheel below the OBD port can be. With strong magnetic, that is, there is a locator magnet, as long as the car in the adsorption of iron, can be positioned. Wiring a little trouble spots, to take the line, according to different functions to set an gt02a car like rice only positioning function, only the positive and negative two lines, pick up convenient; like the ACC line, relay line etc..The positioner need to insert a CDMA card, connected to the GPS antenna and CDMA antenna signal signal, power supply is connected with the car, can work, if you need to power off the oil, can also be the host power off the oil control line, you can achieve these two functions, the method of installing GPSONE car the following will be the main power line tracker GPS host and auto connect phone card inserted on the login platform ready to start positioning.
Q:How much is the general GPS locator? Do you pay any fees?
Price depends on what you want is a personal GPS locator or car GPS locator. GPS locator must be used in conjunction with the platform, whether it is on the car or personal, have to pay the platform service charges. Vehicle GPS locator platform service fee 60 yuan a month, GPS locator itself price is generally around $300, but the platform service fee can also be handed over a lifetime, $100, that is, the 100 platform service fee. The personal GPS locator is relatively cheap, general equipment plus platform service costs between 180 and 200. Different manufacturers may be a little price difference.
Q:GPS car locator easy to use, useful to share the experience of what I recommend to buy what kind of real
The main vehicle positioning tracking history put some functions of leasing, rental, logistics companies have installed recommend cost-effective high visibility products: Armored soldiers K12 car locator
Q:Children's GPS positioning mobile phone watch need to install a phone card
It comes with a watch,Is an external card is inserted SIM card.The general is more than the card, do not have the card, personal feel or card is better, then do not want to use the card can also be used on the phone.Currently on the market positioning GPS watches are SIM card positioning, which is the positioning of GPRS, base station positioning.
Q:What are the things that need to be paid attention to in the process of using GPS locator
Locator before using the SIM card must confirm the following points:SIM card is to support mobile Unicom 2G networkThere must be calls and 2G network trafficWant to listen to the SIM card needs to open the caller ID and have a call function, just locate the traffic package can be opened.
Q:Principle and application of GPS
The basic principle of GPS positioningGPS is the use of satellite positioning basic triangle positioning principle, GPS receiving device to transmit radio signals in time measurement to measure the distance, the distance to determine the position of the satellite in space, this is a kind of high precision positioning and orbit observation way. That satellite in 11000 miles high, measuring the distance from us, first to 11000 miles radius, this satellite drew a circle as the center, and the location is in a sphere.Application of GPS in personal positioningThe first voice MMS GPS locator (what is GPS) - sunstudy wholly owned technology MMS GPS locator for the column, it built the map data, without the background support, combined with the GPS global positioning system, GSM communication technology, embedded technology, GIS technology, voice broadcast GIS search engine, image processing and image transmission technology, direct response Chinese terminal address, MMS, voice broadcast or location
Q:GPS positioning system on the phone how to use ah?
You download a mobile phone Google map. That's pretty good
Q:Stop the car after the oil off the power, GPS locator can be loaded in what position?
In the idle state, unplug the oil film should be immediately pound insurance vehicle flameout, then cut open the corresponding oil supply line will relay 2 pounds, green line series, white line and red line equipment connection and butt joint of yellow line and yellow line locator; after the installation is complete, in the idle condition, the relay the yellow line ground, if the vehicle can immediately turn off line is installed correctly, if not, it may be wrong or cut oil pound line together with the white line without the red line.
Q:GPS locator can hear the sound?
Yes, voice and other functions, to see what you choose, the cost should not be the same
