LISHIDE BRAND ORANGE GRAPPLE EXCAVATOR SC200.8

Ref Price:
Loading Port:
Qingdao
Payment Terms:
TT OR LC
Min Order Qty:
1 unit
Supply Capability:
500 unit/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Features

SC200.8 orange grapple excavator adopts more humanized and advanced design concepts and excellent manufacturing process. International brand engine is equipped, featuring large power, low fuel consumption, more energy conservation and environmental protection. The electronic control system and hydraulic system realize best match, which improves the working efficiency and quality. The highly strengthened chassis and humanized cab design ensures the safety and comfort of the operational environment. Orange grapple excavator is very versatile. The machine can satisfy the lifting and unloading of port cargo, containers, wood, garbage, stainless steel, and cables with durability and reliability in complex environment.


Parameters

Model

SC200.8 Orange Grapple Excavator

Operating Weight(T)

20.6

Rated Power(kw/r/min)

112/1950

Fuel Tank Capacity(L)

350

Travel Speed(km/h)

5.2/3.5

Swing Speed(r/min)

11.7

Climbing Degree(%)

70

Max. Breakout Force(KN)

138

Average Grounding Pressure(KPa)

44.9

Max. Flow(L/min)

206*2

Working Pressure(MPa)

34.3

Hydraulic Oil Tank Capacity(L)

246

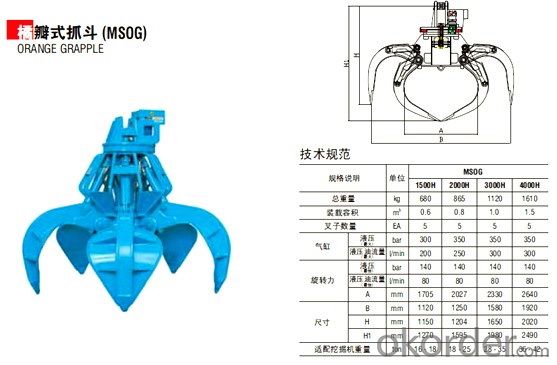

Dimension

LISHIDE BRAND ORANGE GRAPPLE EXCAVATOR SC200.8


Specification

Unit

MSOG

1500H

2000H

3000H

4000H

Overall Weight

kg

680

865

1120

1610

Load Capacity

m3

0.6

0.8

1

1.5

Grapple Quantity

EA

5

5

5

5

Air Cylinder

Hydraulic

bar

300

350

350

350

Hydraulic Oil Flow

l/min

200

250

300

300

Swing Force

Hydraulic

bar

140

140

140

140

Hydraulic Oil Flow

l/min

80

80

80

80

A

mm

1705

2027

2330

2640

Dimension

B

mm

1120

1250

1580

1920

H

mm

1150

1204

1650

2020

H1

mm

1270

1595

1980

2490

Excavator Weight

ton

16-18

18-25

28-35

36-42
