LED chips smd 2835 led module with lens

Ref Price:
Loading Port:
Shekou
Payment Terms:
TT OR LC
Min Order Qty:
-
Supply Capability:
-

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

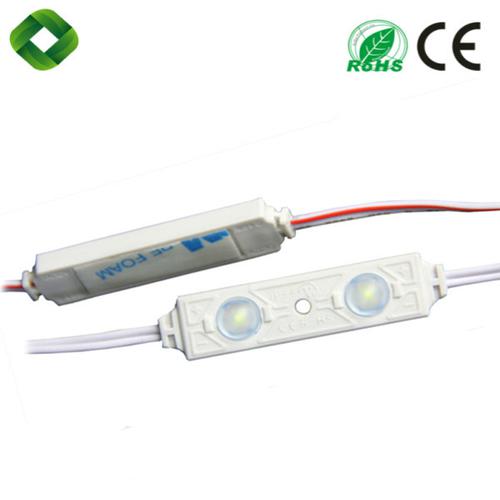

DC12V led module with lens


RZFT47132W2835 led module are designed to illuminate medium size channel letters(thickness between 6~10cm) and lightboxes.We use the highest quality EPISTAR LEDs and electronic components to ensure reliable and long lifetime of LED modules.

Product Description


LED Type

2835 SMD LED

View angle

160 Degree

Lumen

40

40

11

26

8

13.5

Warranty

3-year.

Voltage(V)

12V DC

Current(mA)

60(single led module)

Consumption

0.72watt(single led module)

IP

66

Color(k/nm)

6500

9000

623~625

515~517

462~464

590~592

Size

56x14x5

Operation Tem

-25~60 degree

Part No

RZFT4713-2W2835

RZFT4713-2CW2835

RZFT4713-2R2835

RZFT4713-2G2835

RZFT4713-2B2835

RZFT4713-2Y2835


Innovation

Lens Make 20%Brighter, and reducing overal system costs


According to professional test, 2835smd led module with lens expanding view angle to 160 degree, capture otherwise wasted light and  redirect it towords to illuminated surface, which increase by 20% brightness comparing with regular products.


Aplication:

  • Channel letter,reverse letter with waterproof requirement

  • Outdoor light box

  • Advertising sign

  • Outdoor architectural lighting and decoration

  • Large area back lighting

  • Other lighting projects

Quick Selection Guide: LED Module For Channel Letter

Depth of channel letter(mm)

LED Pitch(mm)

Density(pcs/m2)

Surface brightness(Lux)

50~60

70

234

4200~4500

60~80

80

210

4000~4250

100

100

106

2200~2500

120

130

84

1800~2200

150

160

80

1400~1550

180

180

54

750~800

Packaging & Shipping



Why choose us?

1) Factory directly sale,low price

2) 5 years warranty

3) Fast delivery time

4) Free sample are available for you test




Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What are the power connections for the LED light string?
If you do not want to use a power to control each LED lamp string, can switch power to buy a relatively large power for the total power supply, then put all LED light on the input power (all parallel wire size is not enough, can also extend) unified by the total power switch.
Q:Low voltage LED lamp string resistance is how to count, there is no formula?
In general, LED lamps need constant current to drive, and the voltage may be adjusted according to the aging degree of the LED lamp.
Q:What's the price of the LED light string?
On the market now, 3014 of 11lm is often priced at between 0.13-0.16. The lamp has stable performance, good brightness, low luminous decay, and color index is much better. 600x600LED panel light 360 beads, which is about 53 yuan.Are basically using 11x23 or 11x26mil chip, chip /pcs lamp about a penny.
Q:What is the connection distance of the LED light string?Be specific
When the installation must be installed according to the manufacturer's requirements, do not let the LED lamp string overload operation. I use the Zhongshan Greenman, which has detailed instructions, easy connection
Q:How do you connect the LED lights?
Connect the first LED positive pole to the negative electrode of the second LED and then connect the first LED negative pole with the second LED positive pole to the power supplyConnect the positive pole of each LED with the positive pole of the positive electrode, and then connect to the power supply. This is the parallel connection
Q:What is the principle of the LED series?
Led 2 polar tube inside chip oscillator circuit, and the general appearance led 2 polar tube without distinction, only connected to the power supply of two kinds of color turns light, 1 seconds, I bought the 5MM red, blue autoflash. From the appearance of the series, but not necessarily in series
Q:Rated voltage of LED lamp string
When normal luminescence, each LED voltage drop is more than 2 volts, the current is about 15mA, to use 220V direct current should be connected in series with nearly one hundred led, or in the LED circuit series resistance, so that the series circuit current is about 15ma.
Q:The top LED lights always burn the bulb in series
If it is a constant current drive, there is a special adjustment element to adjust the current.
Q:220vled water lamp string how to connect, that is, 220 of the electricity
On the way of C1, R1, L1, R2 varistor, the primary power supply filter circuit, can input the instantaneous pressure filter, C2, R2, C4, C3 step-down circuit, L2 varistor and filter circuit is composed of rectifier, the filter, which can effectively protect the LED by high pressure breakdown.
Q:Why are there three lines for the controller of the LED light string? What are they?
The LED pipe positive string is connected with 4-5 1K2W resistance strings, and the other end of the resistor is connected with the common positive pole of the controller. LED tube controller's direct bright output (Huang Xian), if the LED tube brightness is not too bright, minus a resistor. Remember not to short-circuit, short-circuit, burn out the controller. The less string LED, the more resistance string.
