Product Description:

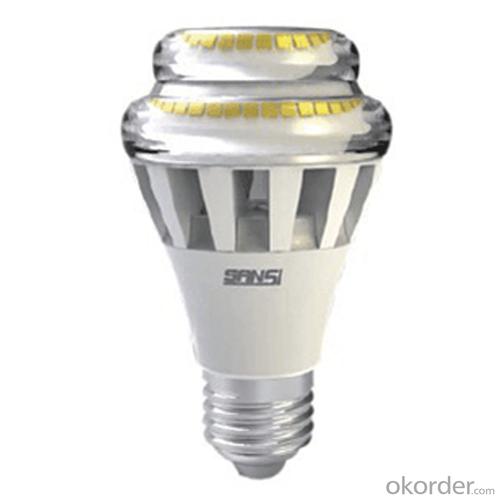

C21BB-IE26:  100W Replacement Bulb
Omni-Directional/Dimmable/1600lm

ABOUT THE PRODUCT
 LED replacement bulb for the traditional 60W-100W bulbs
 Omni-directional light distribution
 Dimmable
 Ceramic heat sink design

AREAS OF APPLICATION

Residential homes, commercial buildings, offices, supermarkets, showrooms and more.

LED bulb light LED light/ LED bulb lamp SMD/ LED ceramics bulb light  Omni /LED light/C21BB-IE26

Technical Data

Electrical Specifications
Wattage options:  13.5W/15W
Traditional replacement:  100W
Voltage options:  90-132 VAC
Frequency:50/ 60 Hz

Optical Performance
Chip brand:  Nichia
Color temperature:  3000K/5000K
Luminous flux:  1600lm
Color render index (CRI):  80-91
Beam angle:  Omni-directional

Colors and Materials
Body material:  Ceramic
Product color:  White

Temperatures
Ambient temperature range:  -20~+40°C

Lifespan
Lifespan:  30,000 hours
Warranty:  5 years

Capabilities
Type of installation:  Screw-in type
Base: E26
Dimmable:  Yes
Motion sensor:  TBD

Test & Certifications
Standards:  UL Energy Star CEC
Test reports:  Energy Star










Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:What are the requirements of the LED series inspection specification for bulb bulbs?
Dielectric strength: electrical endurance test (resistance test) followed by insulation resistance test. During testing, the following AC voltage is applied at the specified position 1min. Type HV (220~250V); 4000V (RMS), BV (100~120V); 2U (rated voltage) +1000v.
Q:Secret LED bulb bubble price difference why so big?
Lamp beads。 I also do with Samsung bulb, bulb, lamp light cost more than others product price;
Q:LED bulb bulbs, do you need 3C certification now?
Light source class is impossible to do, only lamps and lanterns class can do. For example, flat lamp, ceiling lamp and so on...However, CQC voluntary certification can be done.
Q:Ordinary lamp LED bulb can?
Yes, just buy a high voltage LED light bulb. Contact me. I'll send it to you from the factory
Q:What does the LED bulb patch mean?
In order to obtain high power LED light source, high brightness, the manufacturers to power direction in LED chip and package design. At present, the LED package can withstand W power has emerged. For example, Norlux series of high-power LED packaging structure for the hexagonal aluminum plate as base (the conductive) multi chip combination. The base diameter of 31.75mm, light emitting area is located in the central part, a diameter of about mm (0.375 * 25.4), can accommodate 40 LED tube core, at the same time as the aluminum heat sink. This package uses conventional tube core combination of high density packaging, high luminous efficiency, low thermal resistance, high in light output power flow under high electric. Is a kind of promising LED solid state light source.
Q:LED bulb w can replace 40W incandescent lamp
I am engaged in the LED drive industry, not very professional, and I hope to help you.About brightness and energy saving comparison,1W LED=3W CFL (energy saving lamp) =15W incandescent lamp3W LED=8W CFL (energy saving lamp) =25W incandescent lamp4W LED=11W CFL (energy saving lamp) =40W incandescent lamp8W LED=15W CFL (energy saving lamp) =75W incandescent lamp12W LED=20W CFL (energy saving lamp) =100W incandescent lampBecause the company uses the light quality is not a reason, so this is not absolute.
Q:LED bulb PC, will the white cover affect the color temperature of the finished lamp?
PC Ivory lampshade, because of the low price, it is recommended to use light diffusion cover, so this should not be the problem
Q:LED thread specifications for bulb bulbs?
Specifications also include bulb, E27, E26, B22, E14, G10, E40;E27 specifications are in the majority.
Q:LED what is the glue between the aluminum base of the bulb and the cooling aluminum?
Heat conductive adhesive is best.Heat conductive adhesive, also known as thermal conductive silica gel. Organic silica gel as the main body, adding fillers, thermal conductive materials and other polymer materials, mixed by silica gel, has better thermal conductivity, electrical insulation performance, widely used in electronic components. Also known as: thermal silica, silicone rubber, silicone heat, thermal conductivity of silicone. The accelerator is used to solidify a transformer, transistor, and other heating elements onto a printed circuit board assembly or radiator
Q:What brand of LED bulb is good in quality?
Look at the bulb of the bulb. The so-called bubble shell refers to the transparent glass shell in front. In incandescent lamps, all are made of glass. But in LED bulbs, though they can be made of glass, they rarely do.. Because the LED bulb weight than incandescent lamp 5 times or more, if made of glass, fell on the ground, it broke the possibility of large. As a result, more LED bulbs are made of plastic to prevent them from breaking. And the LED bulb went out because the heat from the radiator, so the bulb Everbright is visible light, infrared heating has little, so the use of plastic to make foam shell will not damage due to heat.
