LED Bulb LED 2.4G Remote Bulb 2.4G Grouping RGBW Bulb (9W Aluminum Alloy)

Ref Price:
Loading Port:
Shekou
Payment Terms:
TT OR LC
Min Order Qty:
1 pc
Supply Capability:
100000 pc/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

Product Description

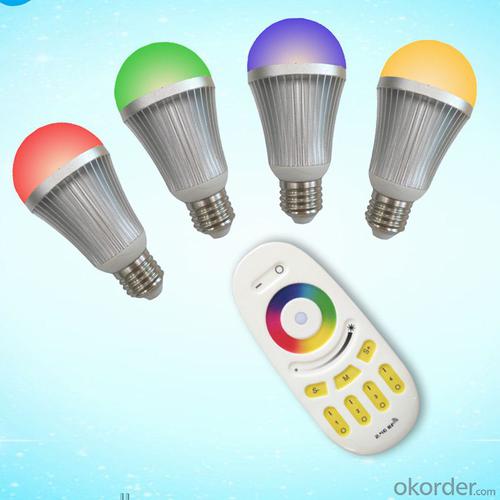

This product is a high-performance replacement type RGB+W LED bulb, Remote control for wireless control, With 64W colors and 9 kinds of dynamic change models for choice, at the same time has the function of illumination of white light. Using LED light source, its power consumption is 20% of the traditional incandescent lamp, the service life is energy-saving lamp more than 10 times. Easy installation and use simple at the same time, security and stability, achieve intelligent illumination lamps and lanterns, both energy saving and environmental protection.

The lamp body is made of a blunt forging forming, the more number of fins structure cycle back in the air, the greatest degree to solve the problem of the high power LED heat dissipation. The lampshade adopts imported polymer nano materials, light transmittance as high as 85% above, homogeneous soft light output. Control ways, using the 2.4G high frequency wireless transmission technology, low power consumption, remote control distance is far, strong anti-jamming capability, high speed of air communication and so on. The appearance remote control is fashionable and beautiful. Function is practical and simple controls, using capacitive touch design, t has the rich that move light, color mixing function. For household lighting, scene layout it adds a different exotic atmosphere.

Technical Parameters

Light bulbs parameters

content

parameter

content

parameter

Supply Voltage

AC86-265V   50/60HZ

Working temperature

-40-60

Power consumption

9W

Power factor

>0.65

White light color   temperature section

WW2700-3500K\

CW6000-6500K

luminous flux

810LM

Color rendering index

80

Light angle

140°

White LED specifications

5730 0.5W/each

RGB LED specifications

50501.5W/each

External dimension

Φ60*120mm

The service life

50000H

The material

Aluminum +The PC cover

Lamp holder specifications

E27 E26   B22

Application places

Household   lighting, commercial lighting, KTV, bar, Can also be mounted on a chandelier, floor lamp,   desk lamp, etc

External dimension

LED Bulb LED 2.4G Remote Bulb 2.4G Grouping RGBW Bulb (9W Aluminum Alloy)

The function of remote control

LED Bulb LED 2.4G Remote Bulb 2.4G Grouping RGBW Bulb (9W Aluminum Alloy)

“M” dynamic mode table:

NO.

Mode

Brightness state

Speed state

1

7 colors fade

adjustable

adjustable

2

White fade

adjustable

adjustable

3

Red green blue white 4 colors fade

adjustable

adjustable

4

Red green blue white 4 colors jump

adjustable

adjustable

5

8 colors jump7   color+white

adjustable

adjustable

6

Red light fade and flash

adjustable

adjustable

7

Red light fade and flash

adjustable

adjustable

8

Red light fade and flash

adjustable

adjustable

9

Full automatic play mode

adjustable

adjustable

Application scenarios

LED Bulb LED 2.4G Remote Bulb 2.4G Grouping RGBW Bulb (9W Aluminum Alloy)

Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Seeking the production process of LED bulb... Thanks
First of all, of course, the preparation of materials, the specific operation of the lamp to practice, each lamp has different methods of assembly, there are different work instructions. Only through practice can we write good and practical processes. Figure is a flow chart of MR16 assembly.
Q:Choose which light bulb LED bulb is the healthiest
For home use, you can select LED bulb below 8W, with a color temperature below 3500K
Q:60W how many lumens and how many W LED bulb does incandescent bulb replace?
100lM/W LED bulb, 4-5W can be replaced. If it is white 4W can be, if it is warm white (yellow light), preferably 5W, mainly human eye feeling, white light than Huang Guangliang.4-5W LED bulb, equivalent to 12-15W energy-saving lamps
Q:LED what are the bulb screws?
LED bulb adopts the existing method of incandescent lamp interface, the general screw is E27E14E40 (three). E for screw holes, figures for size, diameter, size. The most commonly used are the E27 sizes, and the E14 is used in small bulbs, such as refrigerators and E40, for larger power.
Q:What material is applied to the glass cover of the LED bulb? Can reach 90% of the light, can not see the inside of the lamp. Who knows, thanks for telling!
The milk white paint can't see light, but the transmittance is only eighty percent a few. At present, the market has not seen in line with the economic benefits of such LED ball bubble glass cover, can reach ninety percent transmittance. If any brother finds it, please let us know. We also want it very much. Oh, thank you.
Q:LED bulb lamp. Is there a good drive or no drive? Is the lamp of good or integrated?
LED bulb lamp, are driven by a power of the ordinary small beads, driving is very simple only rectification, filtering, limiting the number of components is another large power SMD beads, this drive is more troublesome, SMT SMD components, and double plate, both have the element.
Q:What advantages does LED bulb replace energy saving lamp?
LED lamp structure is strong, green environmental protection, not easy to destroy, long life (generally 5 years is not a problem), this is energy-saving lamps can not be compared
Q:What are the driving IC used in LED bulb?
M8900 can replace BP3309, SY5810 SY5840 MT7930, ME 8316, without modifying the circuit used directly.M8900Is an original side feedback, with single stage active PFC high precision LED constant current control chip, M8900 integrated single level active PFC line, can achieve higher power factor and very low total harmonic distortion, chip canThe quasi resonant mode is achieved, thereby achieving higher efficiency and reducing switching losses. M8900 features multiple protection functions to ensure system reliability, including LED open circuit protection, chip overvoltage protection, and UVLO deficiencyVoltage protection, LED short circuit protection, cycle by cycle current limiting, etc..
Q:LED bulb after the power failure, still glimmer, can last hours or even all day, what is the reason?!
If the switch is installed on the zero line, LED is the resistance capacitance step-down if the light shimmer is mainly the induction voltage capacitance inside (with the switch installed on the line Never mind, because there are capacitance induction voltage). The meter won't turn. Of course, you can not expect to use this induced voltage to lighting, because this voltage is extremely weak, unable to meet the minimum requirements for lighting. If the switch is on the zero line, and there is a problem with the capacitor in the capacitive circuit, it is likely to be a long time. Over time, the circuit in the LED light proved to be a problem
Q:LED what is the plastic shell of the bulb? What plastic material is better? What do you need to pay attention to?
Speaking of attention should be to see if the light is even, PC material there are no scratches, spots and the like. It is difficult to test the proportion of raw materials used in PC materials, which is related to the aging time of PC materials.In addition, we should pay attention to anti-static.
