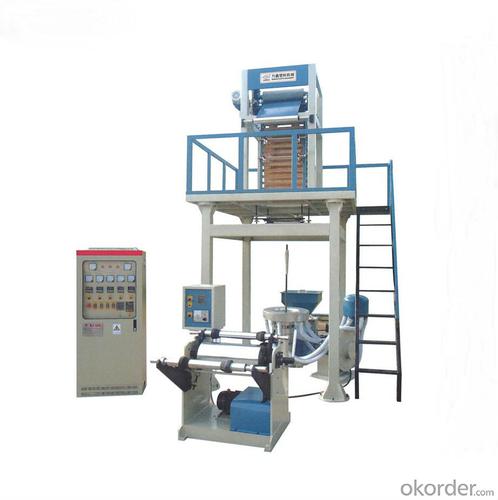

LDPE LLDPE Plastic High Speed Blown Flim Mahine Food Bag Making Machine

Ref Price:
Loading Port:
China Main Port
Payment Terms:
TT or LC
Min Order Qty:
-
Supply Capability:
38 set/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:

LDPE LLDPE Plastic High Speed Blown Flim Mahine Food Bag Making Machine





1.Specifications:

1.High output

2.Low price

3.CE .SGS and ISO certificate

4.Good after-sales services

5.Flexible Payment Term


2.Technical Parameter of Blown Film Machine :

Main Technical Variables

MODEL

GD-3L45

GD-3L50

GD-3L55

SUITABLE MATERIAL

LDPE LLDPE HDPE EVA

FILM WIDTH(mm)

800-1300

800-1500

1200-2000

FILM THICKNESS (mm)

0.028-0.25

0.028-0.25

0.03-0.25

MAX.EXTRUSION OUTPUT

130kg/hr

190kg/hr

260kg/hr

EXTRUDER

SCREW DIAMETER(mm)

Aφ45 Bφ50 Cφ45

Aφ50 Bφ55 Cφ50

Aφ55 Bφ65 Cφ55

SCREW L/D LENGTH

28:1

SCREW MATERIAL

SACM-645/38 CRMOALA

CYLINDER MATERIAL

SACM-645/38 CRMOALA

CYLINDER COOLING

370w×2/3

370w×2/3

550w×2/3

DRIVING MOTOR(Kw)

A15+B18.5+C15

A18.5+B22+C18.5

A22+B37+C22

TEMPERATURE CONTROL

3x3

3x3

3x3

AVERAGE POWER-CONSUME(Kw)

58

70

90

TYPE OF DIE

DIE SIZE(mm)

200/250

250/300

350/400

TEMPERATURE CONTROL

4

AIR RING

1

AIR BLOWER(Kw)

5.5

7.5

11

TAKE-UPUNIT

PINCH ROLLER (DIA. WIDTH)mm

φ165×1400

φ190×1600

φ 190×2100

TAKE-UP SPEED(m/min)

5-60

5-60

5-60

TAKE-UP MOTOR(Kw)

1.5

1.5

1.5

WINDING UNIT

TYPE

SURFACE FRICTION TYPE

WINDING MOTOR(Kw)

1.5

1.5

2.2

WINDING SPEED(m/min)

5-60

5-60

5-60

COVER DIMENSION(m)

7.5×5.5×6.5

8.2×5.8×7.2

9.0×6.4×8.2



OPTIONAL EQUIPMENT:1) AUTO LOADER 2) FILM SURFACE TREATER 3) DIE ROTARY DEVICE 4) AIR COMPRESSOR 5) MECHANICS SCREEN CHANGER



 We have perfect technical inspection facilities, advanced quality-control system and great production capacity, all which ensure good quality as well as timely delivery.







Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:Which is the best vacuum oil filter?
Selection of good oil filter manufacturers, if the budget is abundant, must be good brand, good quality, good after-sales company to buy, although the high prices, but with ease, little problems. If the budget is not enough, then you need to compare by Baidu search or other platforms. Compare your company's size, technical level, quality, after-sale reputation, user success stories, etc., and combine your budget options
Q:Peanut oil centrifugal filter and vacuum oil filter which is good?
To make the machine longer to use, you need a clean oil system that will minimize the loss of lubricating oil and maintain a high degree of cleanliness, so that your maintenance costs can be reduced. Now you will have the best oil purification system in the world: that is a true centrifugal purifier.
Q:Use vacuum oil filters to filter transformer oil in summer and winter temperature should be in the degree of the northern region
Using filtered vacuum oil filter oil pressure: you said, the south region of 10# transformer oil, transformer oil 45# used in northern area, southwest area using 25# transformer oil, due to the temperature difference in the north south, the summer temperature of outdoor temperature at 35 degrees, 20 degrees below zero in winter, the supplier will consider the temperature difference
Q:What's the name of the glass tubing that filters the oil-water separation?
Liquid level meter, you can clearly see the oil and water stratification.
Q:Dr. oil mill, bag filter, instructions for use
The water vapor entering the condenser is cooled and then returned to the original water. The oil in the vacuum heating tank is drained into the static filter by the oil pump and filtered out by the filter oil paper or filter element. Thus, the whole process of removing impurities, moisture and gas in the oil by the vacuum oil filter is completed, so that the clean oil is discharged from the oil outlet.
Q:What kind of oil can the oil filter handle?
5, there is a distillation of diesel oil processing equipment, for the national introduction of diesel standards, from the beginning of the second half of 2016, diesel oil purification equipment becomes popular, but Dingneng launched in 2013 for the diesel processing equipment, and now the technology has matured, the nature of this device does not change the oil. The coalescence distillation method, high efficiency and good effect. Such as: common oil + turbine oil, insulating oil, lubricating oil and quenching oil, rolling oil, cold oilIn theory, all kinds of oil can be processed, but now the domestic oil filter technology is uneven, so some of the oil treatment has a certain degree of difficulty, it needs to be tailored according to the actual situation of the user.
Q:What is the working principle of the oil filter?
Working principle of oil filterThere is a rotor with double jet nozzle in its interior, only produced by oil pressure to provide the driving force. After the device is opened, the oil in the tank is sent to the rotor through the pump. When the oil is filled with the rotor, the nozzle is ejected along the lower part of the turntable
Q:What is the meaning of cleanliness of oil filter less than or equal to 6?
General sense oil cleanliness level less than 6 refers to the oil filtered oil filter clean degree can be less than 6, because the cleanliness is a measure of the impurity content of oil in the index, the lower the value of oil cleanliness that is clean. Due to the use of the entire industrial sector of the oil industry, the vast majority are mineral oil, which is refined from petroleum, so the cleanliness is not possible for 0. new domestic oil factory when the cleanliness status is generally 6-8. Therefore, the cleanliness of the oil filter is less than or equal to 6, which means that after the waste oil is treated by the oil filter, the cleanliness is less than or equal to 6, and it belongs to the combined use standard, that is to say, the oil filtering capacity of the oil filter is also acceptable.
Q:What is the advantage of a centrifugal oil filter?
Advantage:1, centrifugal head rotation speed, oil, water and impurities separation effect is good.2, with heating and temperature control device, proper increase of oil temperature can reduce oil viscosity and oil-water bonding force, is conducive to improve oil-water separation effect.3 、 small size, large flow capacity, easy to operate and can flow.
Q:What is the trouble with the vacuum pump used in the oil filter? How can it be removed so that the oil filter works properly?
The vacuum pumps used in oil filters usually do this:1. the exhaust of the vacuum pump is smoke;2. vacuum pumps, oil spills, oil spills;3. vacuum pump noise exceeds standard;4. vacuum decrease;5. vacuum pump, hot and so on;
The company has a large number of both ability and political integrity technology, production, sales and management personnel. Also has a number of well-trained and experienced staff. Company has strong technical strength, production ability, mainly the production of high-speed equipment bag two layer, three layer coextrusion film blowing machine production lines in various fields.
