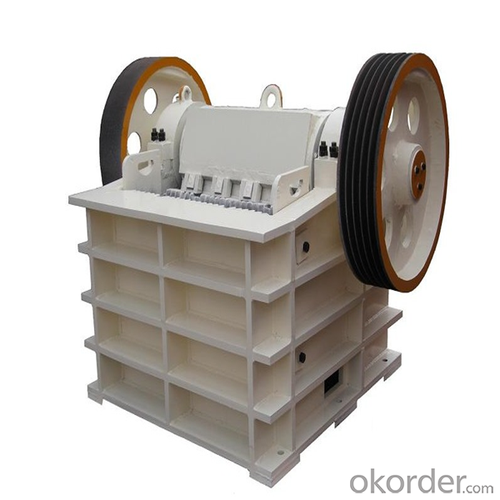

HJ Series High Efficiency Jaw Crusher High Quality

Ref Price:
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 pc
Supply Capability:
10 pc/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:


China HJ Series High Efficiency Jaw Crusher 2015

HJ jaw crusher in mining, building materials, construction and other departments are mainly used as coarse crusher and crusher. According to the inlet width size is divided into large, medium and small three, inlet width is greater than 600 mm for large machines, feed port in 300-600 - mm width for medium-sized machine, feeding mouth width is less than 300 mm for the minicomputer. Jaw crusher structure is simple, easy manufacturing, reliable work.


Technical data:

Model

Feed Opening (mm)

Max Feeding (mm)

Discharge Opening (mm)

Capacity(t/h)

Power (kW)

Machine Size(mm)
(mm)

HJ98

650×980

560

75-175

110-350

90-110

2470×2000×2180

HJ110

800×1100

660

100-200

215-510

110-132

2875×2472×2530

HJ125

950×1250

800

125-225

280-650

132-160

3320×2600×3120


Application

Jaw crusher is widely used in various materials processing of mining &construction industries, such as it is suit for crushing granite, marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and some other mineral &rocks.






Capacity Raw MaterialOutput Size RequirementLocation
250t/hbasalt0-5mm, 5-10mm, 10-20mm, 20-30mmJeddah
60-80t/hAggregate stope stone  1/2" , 3/4" y 3/8Peru
30-40t/hgranite0-6mm, 6-14mm, 14-20mm(Kenya standard)  Kenya



According to the product model different,Materials will be broken into various sizes.
What size do you need of Materials finished product?

You can consult us,give you the best answer!

HJ Series High Efficiency Jaw Crusher High Quality

HJ Series High Efficiency Jaw Crusher High Quality

HJ Series High Efficiency Jaw Crusher High Quality

HJ Series High Efficiency Jaw Crusher High Quality


Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:How can a cone crusher achieve the optimum crushing state?
Do the daily maintenance of cone crusher: such as bearing and horizontal axis lubrication, triangle belt adjustment, thrust bearing, gear clearance inspection inspection, the body part of the bolt fastening, lubrication and adjustment of tubing protection, as long as seriously according to the requirements of the inspection, adjustment, lubrication, fastening, replacement, cleaning door, can ensure the best performance of the crusher work
Q:The working principle of cone crusher
The cone crusher is working, the motor drives the eccentric shaft through the elastic coupling, drive shaft and a pair of bevel gears, crushing cone axis of the eccentric sleeve force under do swing movement, make the broken wall and rolling mortar wall sometimes close, sometimes far away from the ore, in the crushing cavity continuously by extrusion, impact and bending and is broken. More cone crushers can be referred to the Great Wall heavy industries for more information.
Q:Crusher equipment installation skills
One of the broken machine equipment indispensable in mining, infrastructure and railway construction industry, buy crusher has a lot of related skills, after the crusher equipment purchase, the first step is to install it, when installing the crusher, the middle also has a lot of skills.
Q:What kind of crusher is used for the second crushing?
There are counterattack crusher, hammer crusher, impact crusher, most will choose to use counterattack crusher. But it also depends on the actual crushing material. Suggest that you listen to the opinions of experts according to your actual working conditions.
Q:What kind of stone can be broken by jaw crusher?
All kinds of stone should be the first broken equipment, so large stones can be broken
Q:What is the working principle of a shear crusher?
The production of shear crusher, shear crusher work principle is: motor drive reducer through bevel gear drive, drive the rotor shear plate for low-speed rotation.
Q:The rotary direction of crusher
In general, the direction of rotation of the crusher is in what seems to stand by the face of feed, the feed inlet of the right, should be clockwise. The hammer and sieve distance is not fixed, can discharge the thickness adjustment, the greater the distance between the discharge is thick, anti the material is fine.
Q:Product features of vertical impact crusher
A small amount of wear parts with hard and wear-resistant materials, small size, light weight, easy replacement of parts, the product of a cube, small iron pollution, friction and vulnerability of consumption ideal low - impact crusher, impact angle and impact velocity of the most reasonable material design and wear less, 30% lower than the traditional operating cost of equipment directly, reduce the use of cost impact crusher, greatly improves the machine rate of profit.
Q:Principle of roll crusher, how about the output of 610*400 roller crusher?
The working principle of the roll crusher: the impact crusher is a crushing machine which uses the impact energy to break the material.
Q:What kind of crusher is used for crushing stone?
Hello, crusher is generally divided into: jaw crusher, hammer crusher, counter crusher, double roller crusher, cone crusher, as well as shear crusher. According to the kinds of stones, the yield and the size of the materials to determine which type of crusher.
