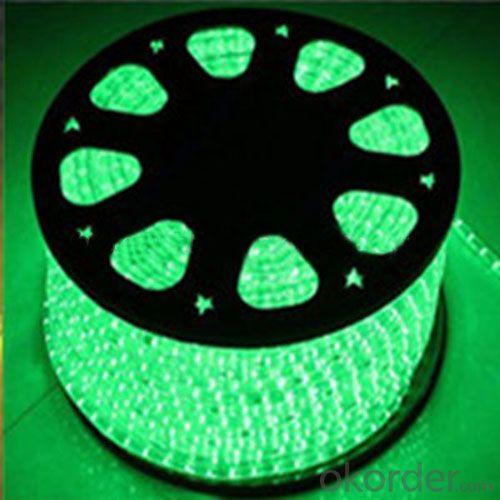

High Brightness 220V Smd5050 Flexible Led Strips Multi-Color 14.4W/M

Ref Price:
$0.52 - 5.15 / m
Loading Port:
Shenzhen
Payment Terms:
L/C,T/T
Min Order Qty:
100 Meters m
Supply Capability:
500000 Meters Per Month m/month

OKorder Service Pledge

Quality Product

Order On-line Tracking

Timely Delivery

OKorder Service Pledge

Credit Rating

Credit Services

Credit Purchasing

Share to:

Product Description:



General Introduction

High brightness 220V SMD5050 flexible LED strips multi-color 14.4W/M



Specification

Product Name / No.220V   LED rope SMD5050
Lamp Power/M14.4W
Working VoltageAC85-265V
Frequency50/60Hz
Main MaterialPVC
Color AvailableWH/WW/red/green/blue/yellow/purple/RGB
Color Temperature2700K-7000K
Size12mm
Luminous Efficiency720lm/M
LED BrandTaiwan   Konwin
CRI(ra)>80
beam angle120   degrees
Life Span50000hours
Warrantyone   Year or more



How to connect and install high voltage led strip

 1. Install: Take out the package,make sure it comes with necessary accessories,which should include:fixing clips,middle plugs,end caps,head wires.fix the strips with clips onto where you need,put the wire into sockets to light the strips.

2. Cut: Please cut the strips only along the cutting mark on the PCB,don’t cut at random.Block up the end with end caps,seal with enough glue to make sure it’s still waterproof.

3. Connect: Plug the head wire into a strip to conduct the electricity,or plug a middle plug into the ends of two separate strips to connect them into a long strip,after well connected,seal all the plugs with enough glue.

4. The max length is 100M for each line in series , or it should change line and connect power supply



Application

1. Light up colorful home life

2.DIY household lights for hallways, stairs, trails ,windows

3.Light up colorful life hotels decoration use,theaters, clubs, shopping

4.Extensively applied in backlighting for signage letters,concealed lighting

5.Applicable for airplane model decoration, contour lighting or border

6.Architectural decorative lighting,archway, canopy and bridge

About Us

Our company specializes in developing and producing wide-scaled LED lighting with well-equipped testing equipment and strong technical force. We have many years of experience in producing LED lighting. Relying on our original design, various models, good quality, competitive prices and excellent after-sales service, our products have been already exported to the world such as Russia, the Middle East, Africa, Europe and other countries and areas.



Our services

1.Your inquiry related to our products or prices will be replied in 24hours.

2.Well trained and experienced staffs to answer all your enquires in fluent English

3.OEM&ODM, any your customized lightings we can help you to design and put into production.

4.Distributorship are offered for your unique design and some our current models

5.Protection of your sales area, ideas of design and all your private information



Delivery and payment term

1. Payment: L/C , T/T

2.Sample can be supplied

3.Shipping freight are quoted under your requests

4.Shipping port: Guangzhou or Shenzhen, Mainland China

5.Discounts are offered based on order quantities

6.Delivery Time: 3-7days, according to your quantity



Send a message to us:

Remaining: 4000 characters

- Self introduction

- Required specifications

- Inquire about price/MOQ

Q:10 meters long, 24 volts, LED lights with 1 hours, how much power consumption?
Power is the measure of the transmission rate of energy. In a DC circuit, it is the product of the voltage V and the current A; it is much more complicated in the AC system. Whether they are high voltage or low voltage LED light belts, they convert AC to DC to work.
Q:How to connect the LED lamp with constant current drive?
Both ends of the line is relatively early and also a common method, because of its convenient wiring, aging, simple and so on. So far, there are many LED lamp manufacturers. The two pins of the lamp cap are shorted together, then connected to the constant current power on the inside. Such a wiring method only needs to be removed from the traditional starter, so that it can work properly.
Q:How do I choose the light belt?
LED lights with the second line, three lines, four lines, five lines mean?LED lamp belt according to the lamp belt, the internal cable is divided into round, second line, flat three lines, flat four lines, flat five lines four kinds.LED lamp a: tier with internal cable two, one line series lamp, and another is the wire. So there are two lines, line zero points, that is to say in the plug when the two needle is not bright, only the two pin plug inserted can turn 180 degrees again.LED lamp b: flat three lines with three line, two line series lamp, the two wires located on both sides. One of the middle is the power line. So the correct insertion is only to insert the pin into the wire. Unlike the second line and the four line, the plug has pros and cons.LED lamp c: flat four lines with four line, three line series lamp, one of which is in the middle of the wire. Therefore, the center of these two lines have zero, FireWire, that is, in the plug may be not bright, the solution is only four pin plug to 180 degrees, and then plug it.LED lamp d: flat five lines with five line, four line series lamp, the four wires located on both sides. One of the middle is the power line. So the correct insertion is only to insert the pin into the wire. Unlike the second line and the four line, the plug has pros and cons.
Q:LED lamp with 180 beads, how many watts per meter?
Of course, this is used as decorative light belt, and if the band is used for lighting, such as a lamp plate, ceiling lamp class, its current will be used 60MA, that is, become 36W
Q:LED lights bring what is high pressure, what is low voltage?
Low voltage LED light belt is 220 volt cross flow, 12 volt DC power supply (with a small converter box), can also be battery or battery power supply, generally with a length of 6---10 meters long, suitable for civilian use. The high voltage LED light belt is 220 volt AC direct power supply, usually 50---100 meters long, suitable for commercial use.
Q:How does the LED light belt power supply?
Lamp belt voltage is generally DC 12V, need to buy a special switch power supply, according to the power size, a power supply can give dozens to hundreds meters lamp belt power supply, general electronic market have sell
Q:What are the features of a LED lamp?
The biggest thing about LED is energy saving.The LED crystal lamp comprises a lampshade, a base for fixing the lampshade, a lamp cap positioned at the top of the base, a plurality of circuit boards electrically connected with the lamp head in the lampshade, and LED crystal and crystal arranged on each circuit board.
Q:Led how much is the band of light a metres?
With a LED lamp, SMD3528/5050 lamp light source is, the more expensive 20-30/ meters
Q:Embedded LED lights with notches generally go deep enough
Under normal circumstances, are 810, two widths of the band shape, but there is better aluminum, hard light bar, then there are about 18 wideSo first you have to figure out the model of your lights, it is best to have pictures to understandIf not, then use the maximum range of 18 wide, the deepest depth of about 15, this is the largest range of light belt
Q:The difference between LED light band and T5 tube
LED light tubes are also commonly known as light tubes and fluorescent tubes. Their light source uses LED as a luminous body. The traditional fluorescent lamp and fluorescent lamp, the lamp at each end of a filament tube filled with argon and rare trace mercury vapor, the inner wall of the tube is coated with fluorescent powder, ultraviolet radiation gas between the two conductive filament, the phosphors emit visible light. LED lights have many advantages, generally used in general lighting, office buildings, shopping malls, restaurants, schools, homes, factories and other indoor lighting.
